Rough Country 7.5" GM NTD Suspension Lift Kit | Vertex 11-19 2500HD/3500HD 25350

Rough Country 7.5 Inch Lift Kit | NTD | Vertex | Chevy/GMC 2500HD/3500HD (11-19)

Description:
Right off the lot The GM 2500 HD has an impressive stance and a killer look, inspiring Rough Country to build a kit that would add crucial enhancements while taking nothing away from this sharp looking, new model truck. The 7.5" N3 Suspension Lift for GM 2500 HD features a Non-Torsion Drop Design for better clearance and handling while maintaining proper angles in a "clean and tucked away" fashion. This kit also features Heavy Duty components worthy of the HD badge; With 1/4" thick steel crossmembers, 1/2" thick NTD Brackets, and a durable, thick Skid Plate - all laser-cut and powder coated in our "Hammer Black" color to match the factory components. Installation requires no drilling or modifying the differential, meaning no "invasive" mods to your new toy. A set of braided Stainless Steel Brake Lines hones the whole package in.Our innovative HD lift doesn't just look like it came from the showroom floor, it drives like it did too. This kit doesn't widen the stock track width, and the Non Torsion Drop design keeps everything at optimum angles, leaving that factory feel to handling corners and turns. A full set of Nitrogen charged N2.0 Shock Absorbers offer 10-Stage velocity sensitive valving, and are custom valved for each model kit we offer - meaning you get a set of shocks designed to preserve your factory ride quality.

Features:
Maintains factory ride quality
Maintains the stock track width
Torsion bars stay in the factory location
Unmatched ground clearance
Axles maintain factory position and angle
No drilling or modifying of the differential
No drivetrain or exhaust modifications required
Includes our latest application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

Notes:
Does NOT fit dually models.
Does NOT fit models with Magnetic Ride Control.
Does NOT work with factory wheels.
If equipped with factory 17" wheels - new aftermarket wheels must be 17" or larger to clear brake calipers/rotor.
Gas models may require modification to the exhaust for driveshaft clearance
Models equipped with factory rear overload springs require longer u-bolt kit (7664) - available below.

Install Time:
8 - 10 hours

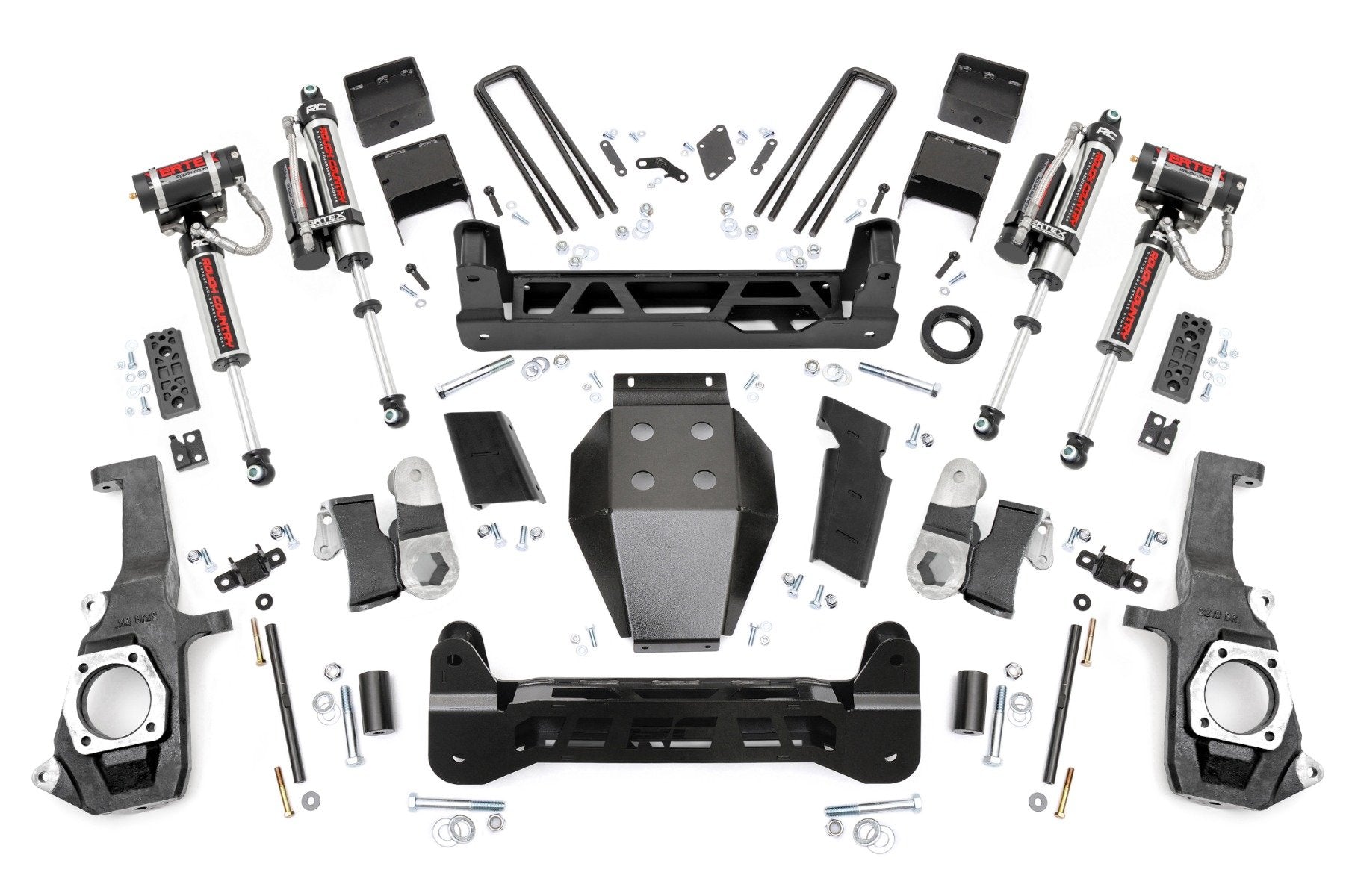

Front Components:
Lifted knuckles Front crossmember Rear crossmember Differential drop brackets Differential skid plate Non-torsion bar drop brackets Sway-bar link extensions Sway-bar brackets Brake line relocation bracket Hardware

Rear Components:
Lifted blocks U-bolts Bump-stop brackets Brake line brackets E-brake line bracket Hardware

Fitment:
2011-2019 2WD Chevy Silverado 2500 HD
2011-2019 4WD Chevy Silverado 2500 HD
2011-2019 2WD Chevy Silverado 3500 HD
2011-2019 4WD Chevy Silverado 3500 HD
2011-2019 2WD GMC Sierra 2500 HD
2011-2019 4WD GMC Sierra 2500 HD
2011-2019 2WD GMC Sierra 3500 HD
2011-2019 4WD GMC Sierra 3500 HD

Tire Info:
35x12.50R17 17x9 8x180 +0 -
35x12.50R17 17x9 8x180 +1 -
35x12.50R18 18x9 8x180 -12 -
35x12.50R18 18x9 8x180 +0 -
35x12.50R18 18x9 8x180 +1 -
35x12.50R20 20x9 8x180 -12 -
35x12.50R20 20x9 8x180 +0 -
35x12.50R20 20x9 8x180 +1 -
35x12.50R20 20x10 8x180 -24 -
35x12.50R20 20x10 8x180 -18 -
35x12.50R22 22x10 8x180 -24 -
35x12.50R22 22x10 8x180 -18 -
Does NOT fit factory wheels
