Rough Country 6" Lift Kit Gas M1 For Ford Super Duty 4WD 2005-2007 59640
Rough Country 6" Lift Kit Gas M1 For Ford Super Duty 4WD 2005-2007 59640
SKU:RC59640
Regular price
$1,139.95 USD
Regular price
Sale price
$1,139.95 USD
Unit price
/
per
Shipping calculated at checkout.
Rough Country 6 Inch Lift Kit | Gas | M1 | Ford Super Duty 4WD (2005-2007)
Description:

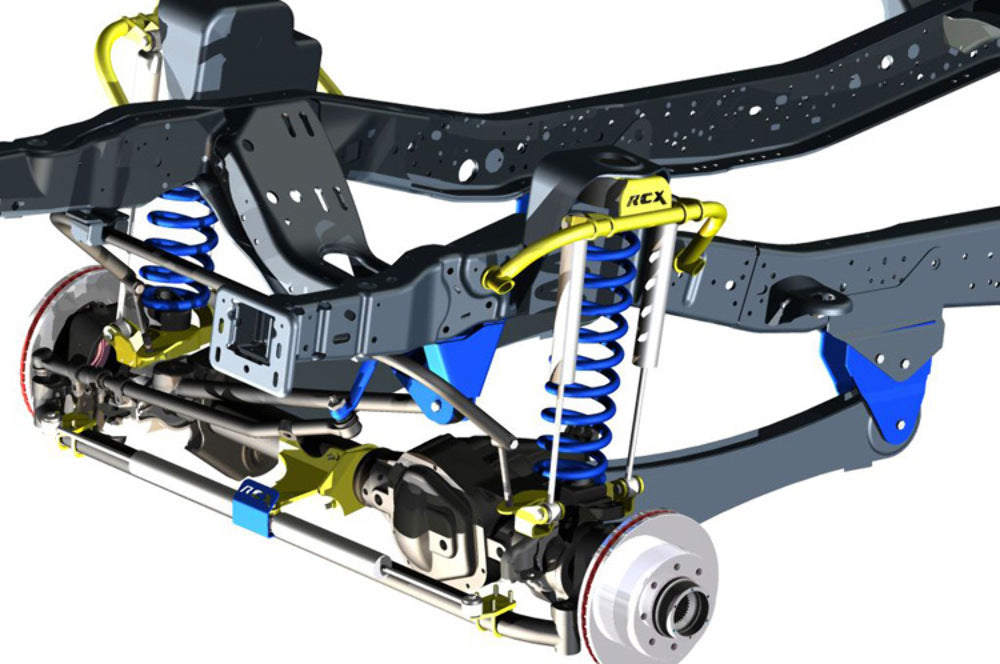

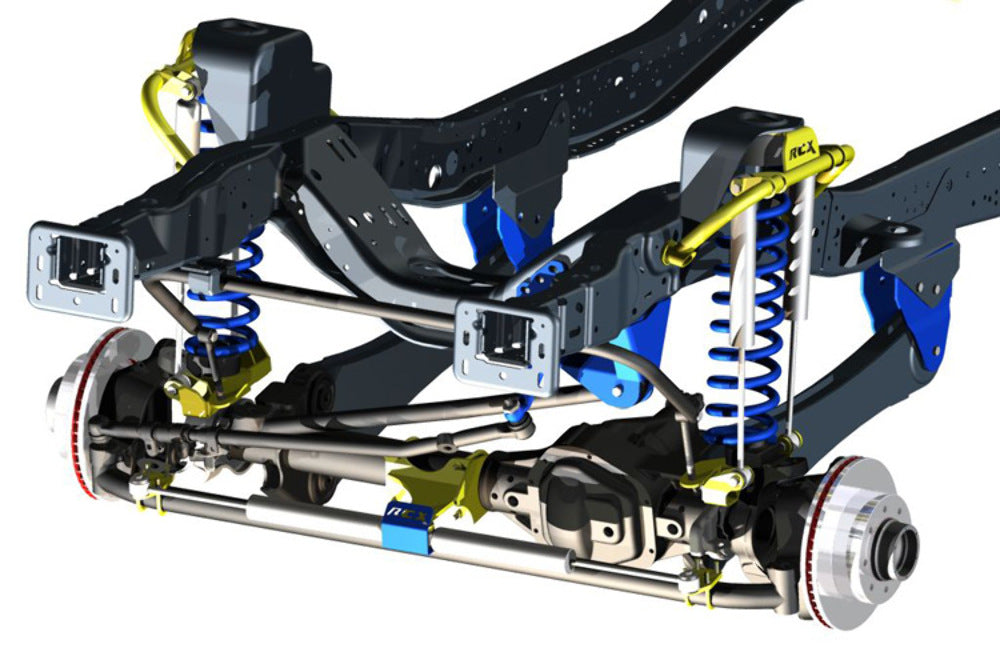

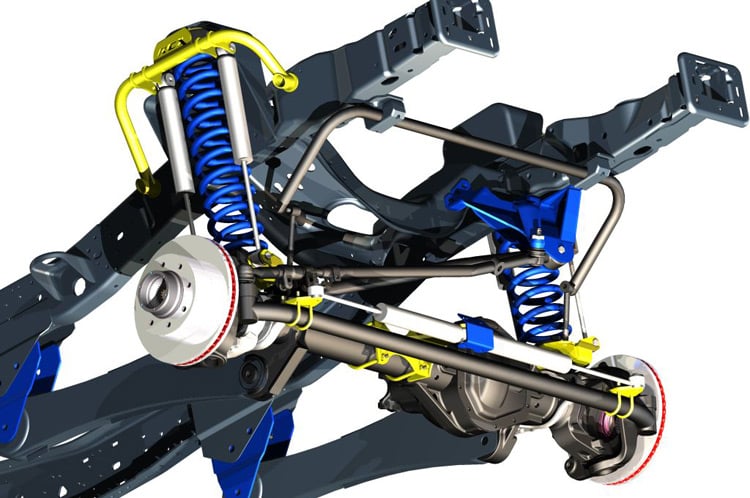

This suspension features luxury ride coil springs matching OE coils rates that are specifically designed for gas or diesel motors. A heavy duty track bar relocation bracket properly centers the axle and matches the steering angles created by the supplied drop pitman arm while the radius arm drop brackets maintain the Super Duty's O.E. caster angles. A steering stabilizer relocation bracket maintains proper steering control but a RC problem solver single unit is recommended with larger tires and a RC dual stabilizer is required when running 37in tires.
Features:
Easy bolt-on installation
Increased ground clearance
Levels the front with the rear of the vehicle
Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Notes:
Does NOT fit diesel engine models.
Does NOT fit dually models.
If vehicle is equipped with rear overload leafs, they will need to be removed.
Install Time:
6-8 hours

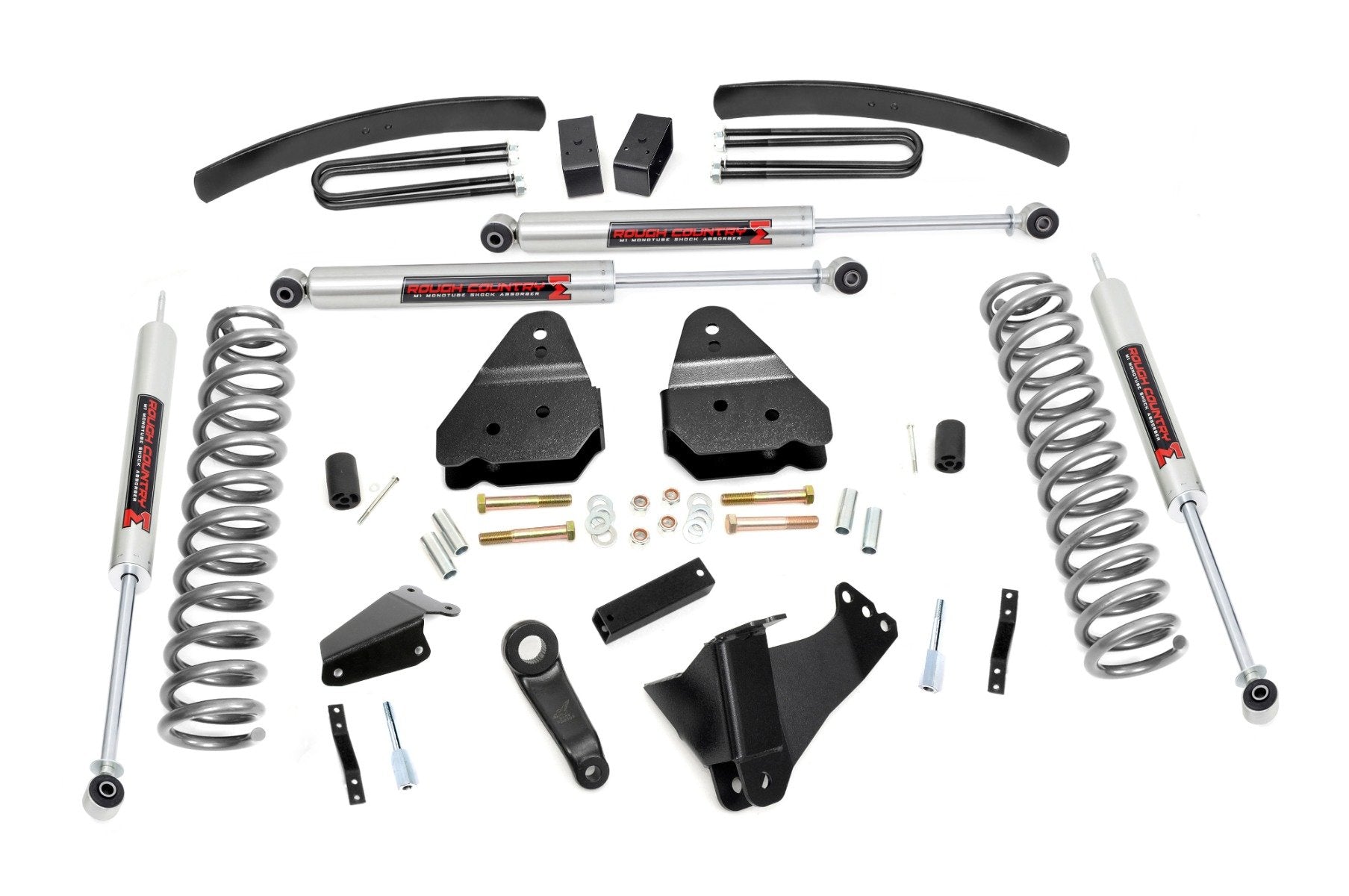

Front Components:
Lifted coil springs Radius arm drop brackets Sway-bar link extensions Track bar drop bracket Stabilizer relocation brackets Pitman arm Brake line brackets Bumpstop spacers Hardware
Rear Components:
3in lift blocks Add-a-leafs Carrier bearing drop bracket U-bolts Hardware
Fitment:
2005-2007 4WD Ford F-250 Super Duty
2005-2007 4WD Ford F-350 Super Duty
Tire Info:
37x13.50R17 17x9 8x170 -12 -
37x13.50R18 18x9 8x170 -12 -
37x13.50R20 20x9 8x170 -12 -
Description:
This suspension features luxury ride coil springs matching OE coils rates that are specifically designed for gas or diesel motors. A heavy duty track bar relocation bracket properly centers the axle and matches the steering angles created by the supplied drop pitman arm while the radius arm drop brackets maintain the Super Duty's O.E. caster angles. A steering stabilizer relocation bracket maintains proper steering control but a RC problem solver single unit is recommended with larger tires and a RC dual stabilizer is required when running 37in tires.
Features:
Easy bolt-on installation
Increased ground clearance
Levels the front with the rear of the vehicle
Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Notes:
Does NOT fit diesel engine models.
Does NOT fit dually models.
If vehicle is equipped with rear overload leafs, they will need to be removed.
Install Time:
6-8 hours
Front Components:
Lifted coil springs Radius arm drop brackets Sway-bar link extensions Track bar drop bracket Stabilizer relocation brackets Pitman arm Brake line brackets Bumpstop spacers Hardware
Rear Components:
3in lift blocks Add-a-leafs Carrier bearing drop bracket U-bolts Hardware
Fitment:
2005-2007 4WD Ford F-250 Super Duty
2005-2007 4WD Ford F-350 Super Duty
Tire Info:
37x13.50R17 17x9 8x170 -12 -
37x13.50R18 18x9 8x170 -12 -
37x13.50R20 20x9 8x170 -12 -
