Rough Country 6 Inch Lift Kit 4-Link OVLD M1 for Ford SuperDuty 4WD 17-22 56040
Rough Country 6 Inch Lift Kit 4-Link OVLD M1 for Ford SuperDuty 4WD 17-22 56040
SKU:RC56040
Regular price
$1,939.95 USD
Regular price
Sale price
$1,939.95 USD
Unit price
/
per
Shipping calculated at checkout.
Rough Country 6 Inch Lift Kit | 4-Link | OVLD | M1 | Ford Super Duty 4WD (17-22)
Description:
Gain greater travel and improved handling while adding ground clearance and aggressive style with Rough Country's 4-Link F-250 Lift Kit.
This innovative kit allows you to replace your factory arms with a 4-Link setup, using Rough Country's durable, fixed upper arms and adjustable lower control arms. A set of radius arm drop brackets maintain proper geometry and allow for proper caster setting, which is crucial to maintain factory handling.
This kit includes a set of lifted coil springs, radius arm drop-brackets, and ultra-durable, fabricated Anti-wrap rear blocks that prevent binding and axle wrap. This kit also includes stainless steel extended brake lines and brake line brackets to ensure you have everything you need to install your lift. Best of all, this kit features Rough Country's Nitrogen-Charged N2.0 Shock Absorbers for the ultimate balance in off-road performance and a smooth highway ride. Includes Rough Country's Lifetime Replacement Warranty
Features:
Easy bolt-on installation
Increased ground clearance
Levels the front with the rear of the vehicle
Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
Notes:
Does NOT fit F-350 models.
Does NOT fit gas engine models.
Does NOT fit manual shift transfer cases
Does NOT fit dually models.
Does NOT fit models with 4" rear axle tube
ONLY fit models equipped with rear factory contact overload springs
New fabricated lift block replaces the factory equipped lift block.
Does NOT work on models equipped with Tremor Factory Trim Package
Install Time:
6-8 hours

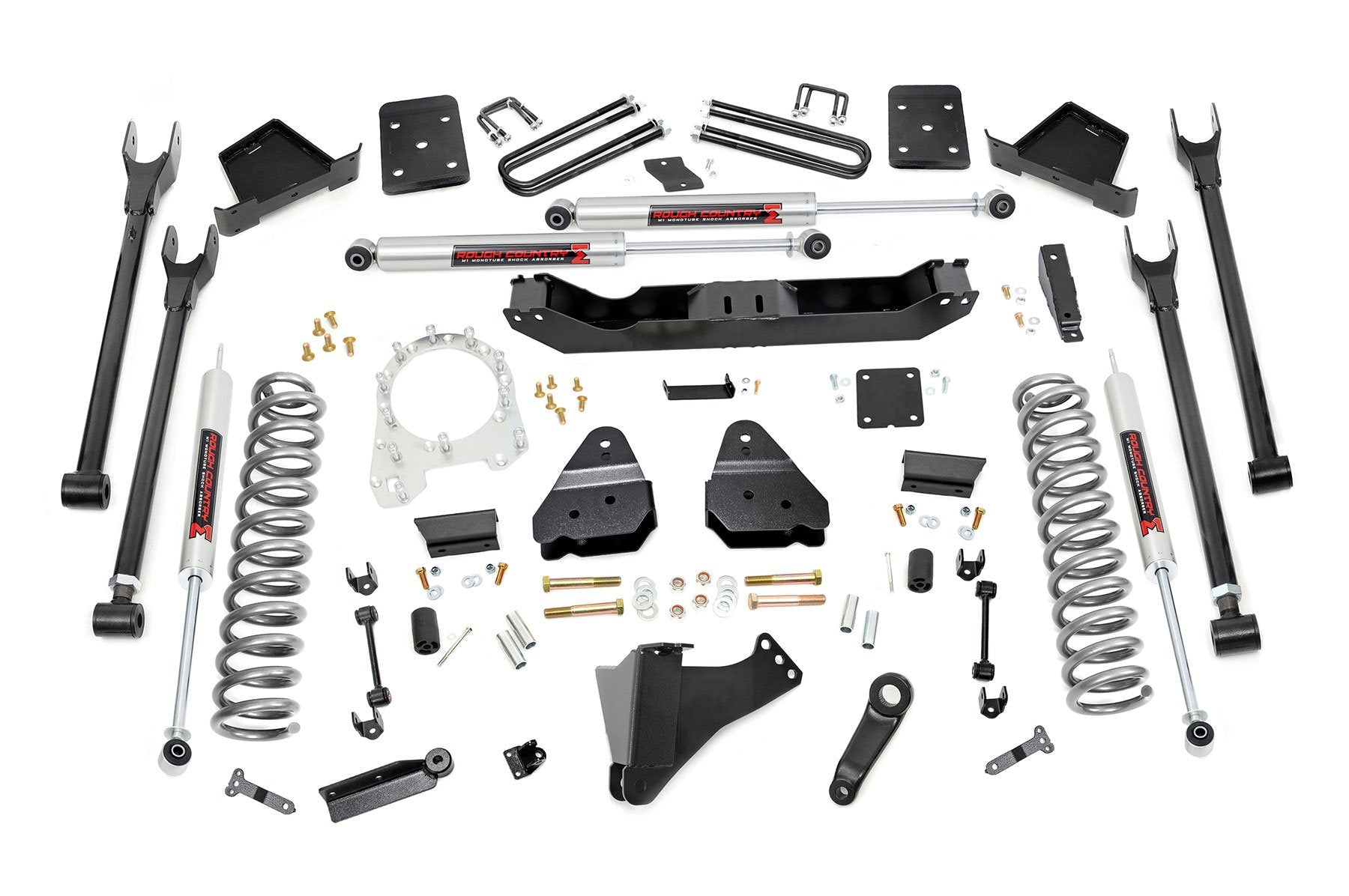

Front Components:
Lifted coil springs Fixed upper control arms Adjustable lower control arms Radius arm drop brackets Sway-bar drop brackets Track bar drop bracket Stabilizer relocation brackets Pitman arm Brake line brackets Bumpstop spacers Hardware
Rear Components:
Fabricated anti-wrap lift blocks Carrier bearing drop bracket Brake line brackets U-bolts Hardware
Fitment:
2017-2023 4WD Ford F-250 Super Duty
2017-2023 4WD Ford F-350 Super Duty
Tire Info:
37x12.50R17 17x9 8x170 -12 -
37x12.50R18 18x9 8x170 -12 -
37x12.50R20 20x9 8x170 -12 -
37x12.50R22 22x9 8x170 -12 -
Description:
Gain greater travel and improved handling while adding ground clearance and aggressive style with Rough Country's 4-Link F-250 Lift Kit.
This innovative kit allows you to replace your factory arms with a 4-Link setup, using Rough Country's durable, fixed upper arms and adjustable lower control arms. A set of radius arm drop brackets maintain proper geometry and allow for proper caster setting, which is crucial to maintain factory handling.
This kit includes a set of lifted coil springs, radius arm drop-brackets, and ultra-durable, fabricated Anti-wrap rear blocks that prevent binding and axle wrap. This kit also includes stainless steel extended brake lines and brake line brackets to ensure you have everything you need to install your lift. Best of all, this kit features Rough Country's Nitrogen-Charged N2.0 Shock Absorbers for the ultimate balance in off-road performance and a smooth highway ride. Includes Rough Country's Lifetime Replacement Warranty
Features:
Easy bolt-on installation
Increased ground clearance
Levels the front with the rear of the vehicle
Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
Notes:
Does NOT fit F-350 models.
Does NOT fit gas engine models.
Does NOT fit manual shift transfer cases
Does NOT fit dually models.
Does NOT fit models with 4" rear axle tube
ONLY fit models equipped with rear factory contact overload springs
New fabricated lift block replaces the factory equipped lift block.
Does NOT work on models equipped with Tremor Factory Trim Package
Install Time:
6-8 hours
Front Components:
Lifted coil springs Fixed upper control arms Adjustable lower control arms Radius arm drop brackets Sway-bar drop brackets Track bar drop bracket Stabilizer relocation brackets Pitman arm Brake line brackets Bumpstop spacers Hardware
Rear Components:
Fabricated anti-wrap lift blocks Carrier bearing drop bracket Brake line brackets U-bolts Hardware
Fitment:
2017-2023 4WD Ford F-250 Super Duty
2017-2023 4WD Ford F-350 Super Duty
Tire Info:
37x12.50R17 17x9 8x170 -12 -
37x12.50R18 18x9 8x170 -12 -
37x12.50R20 20x9 8x170 -12 -
37x12.50R22 22x9 8x170 -12 -
Want to customize this kit? Send us a message!
