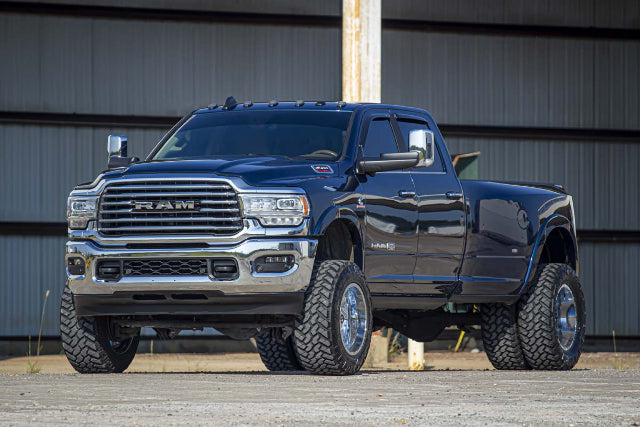

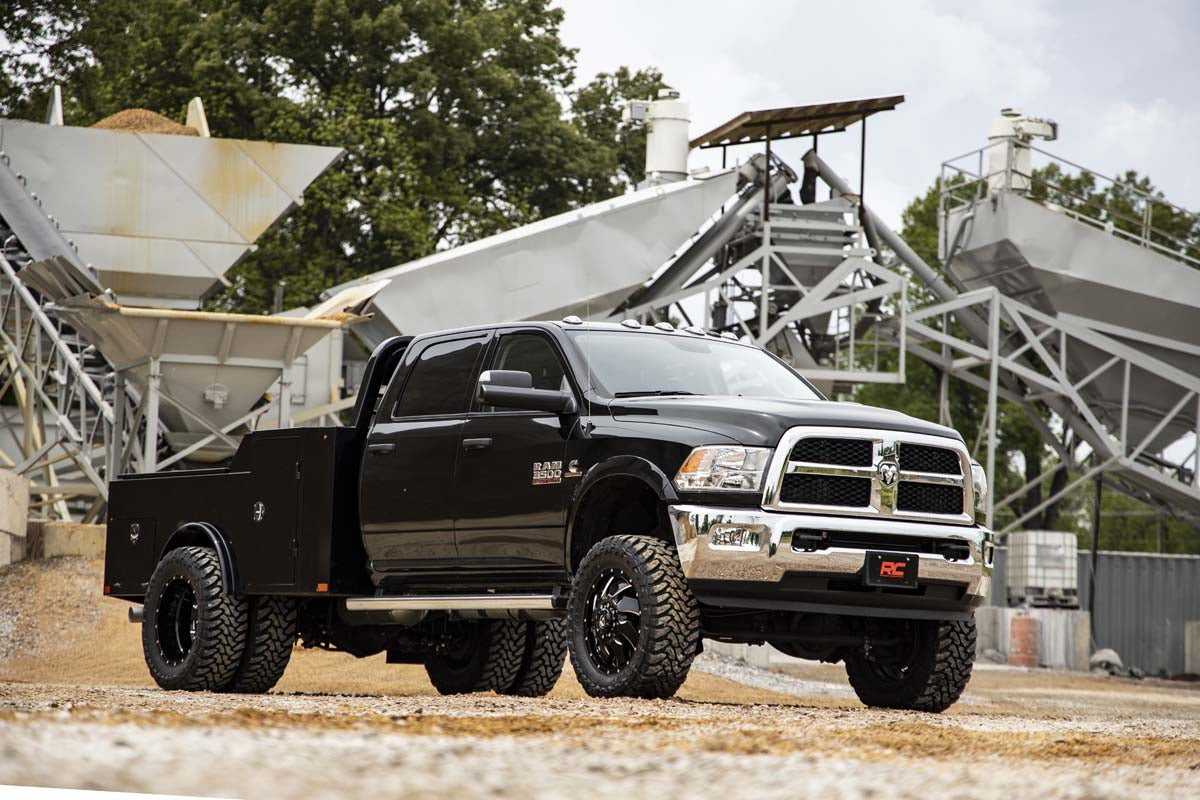

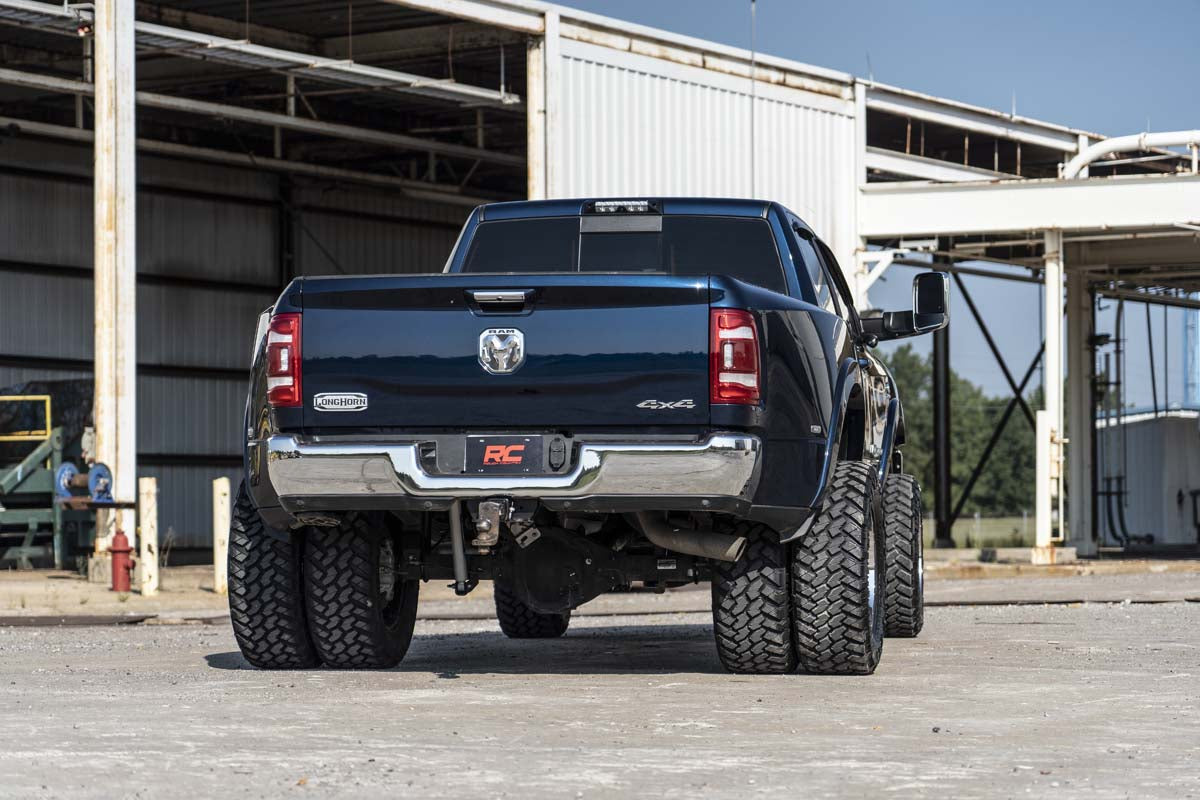

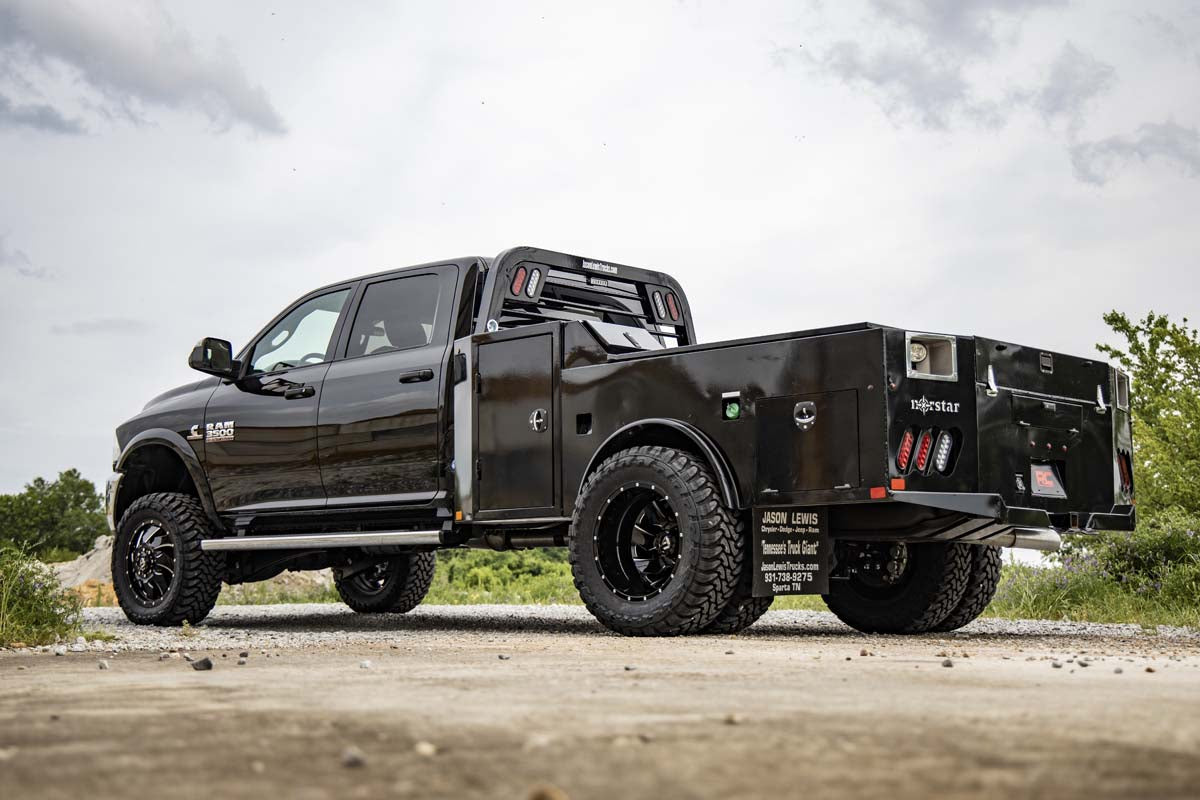

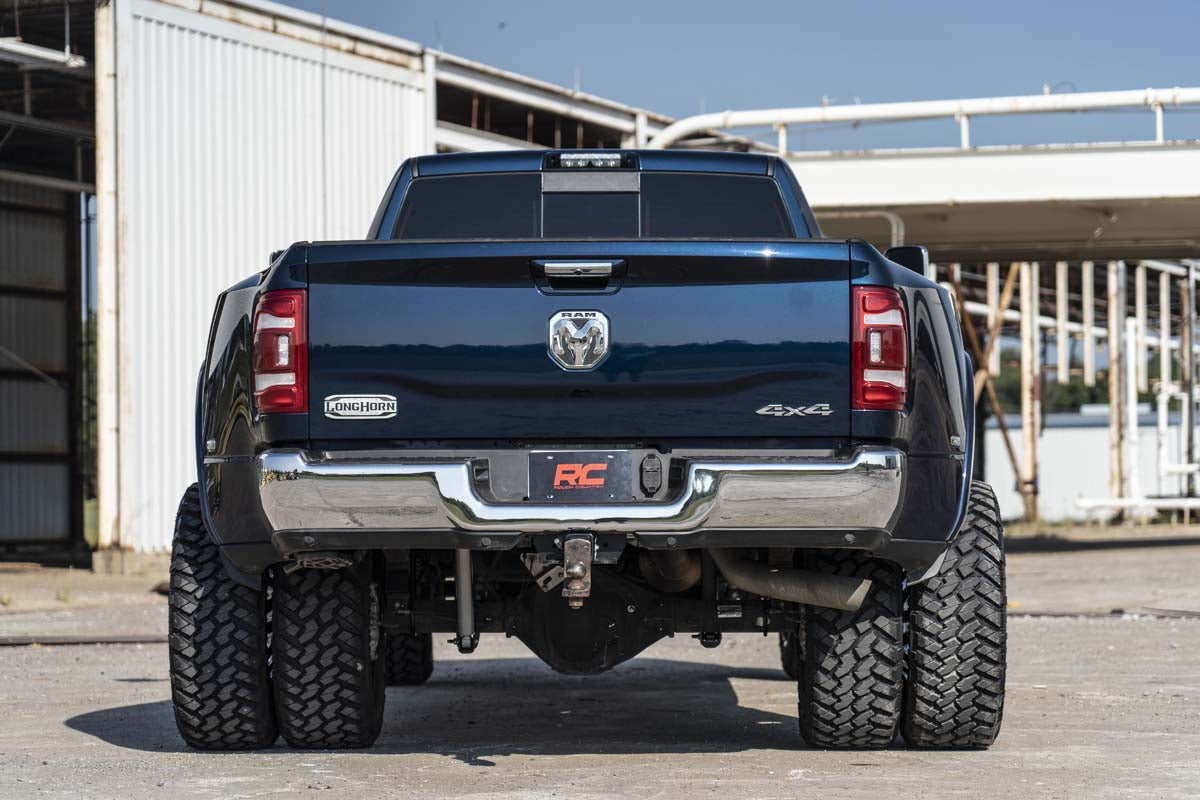

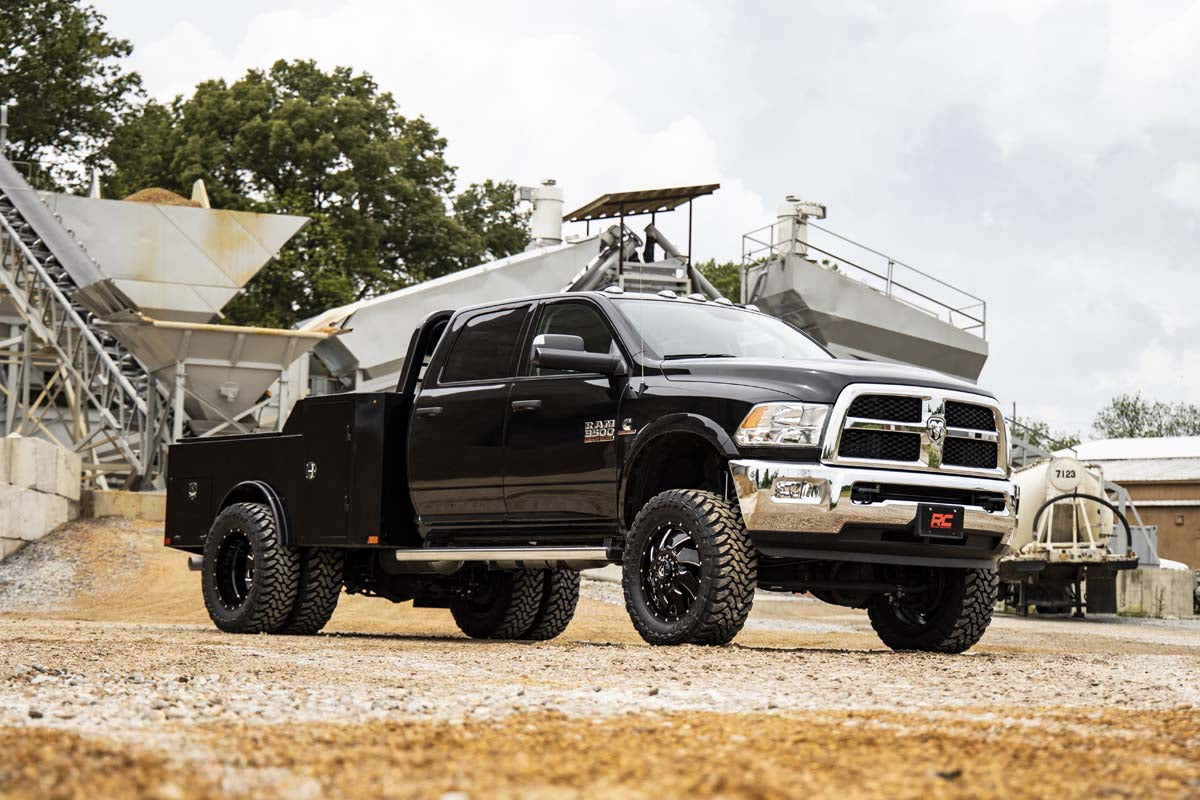

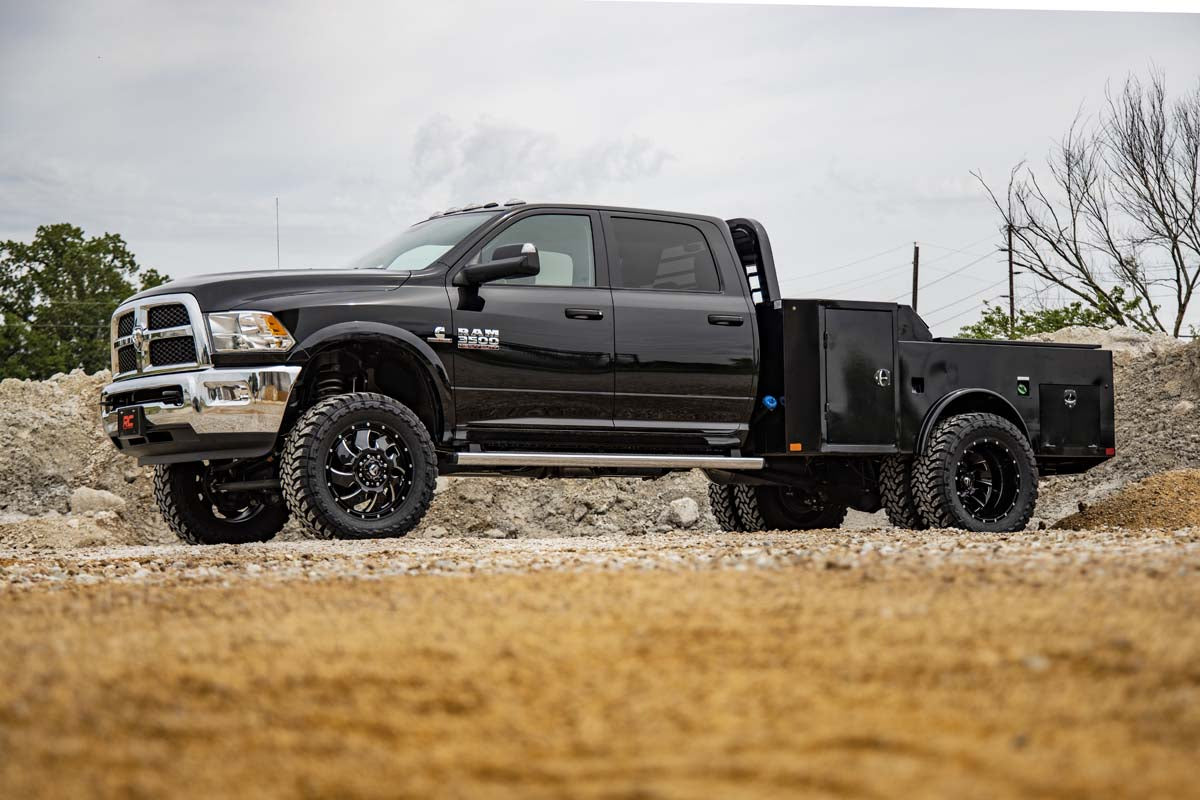

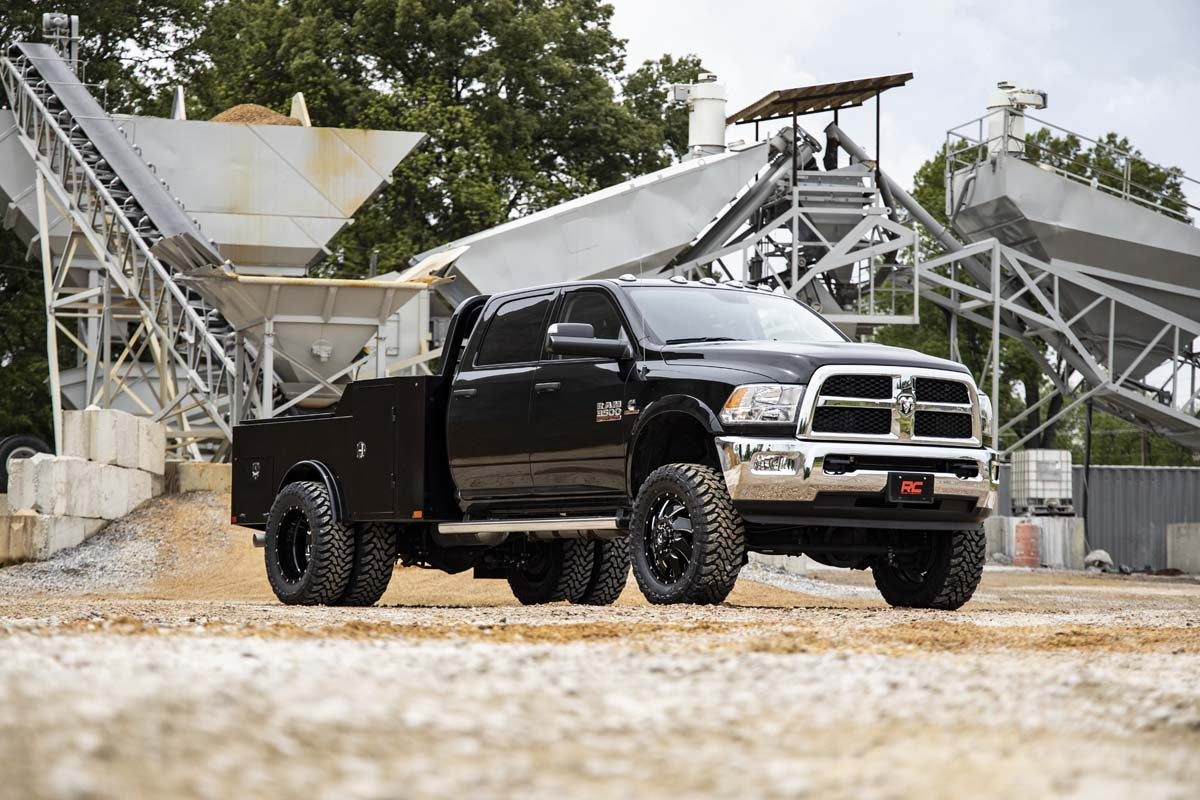

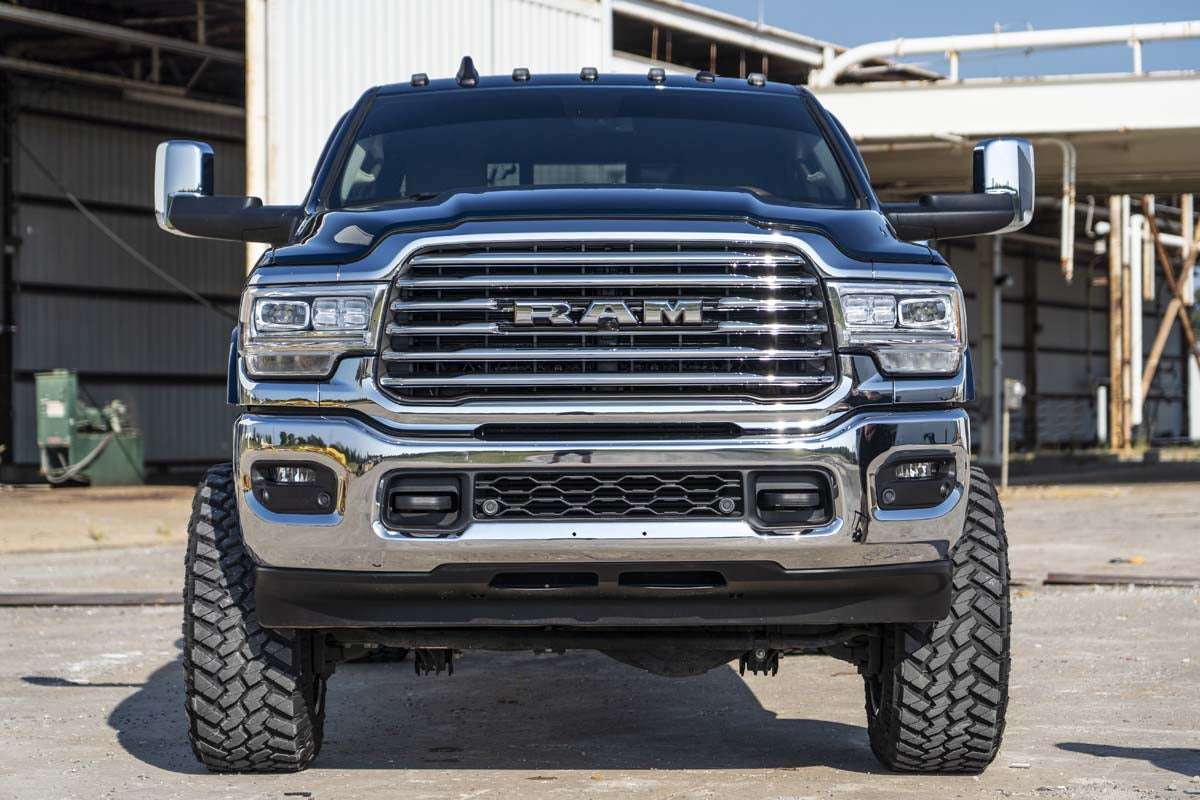

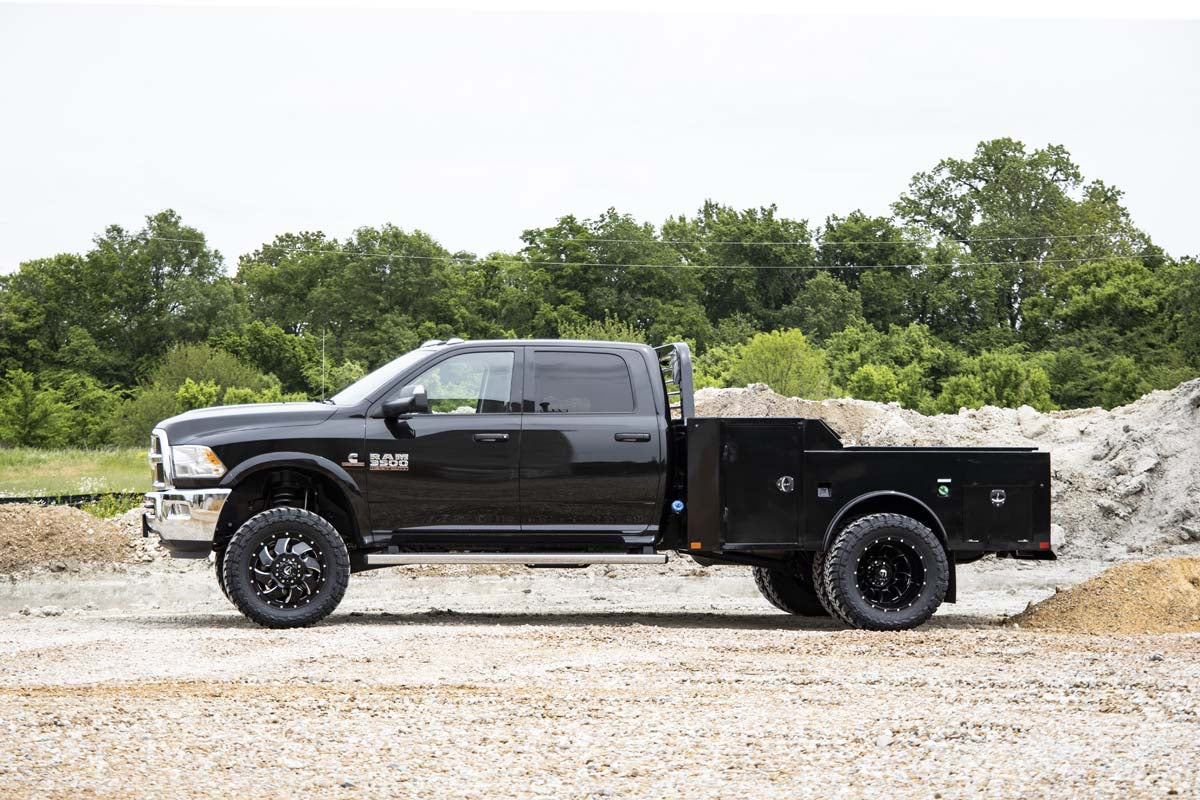

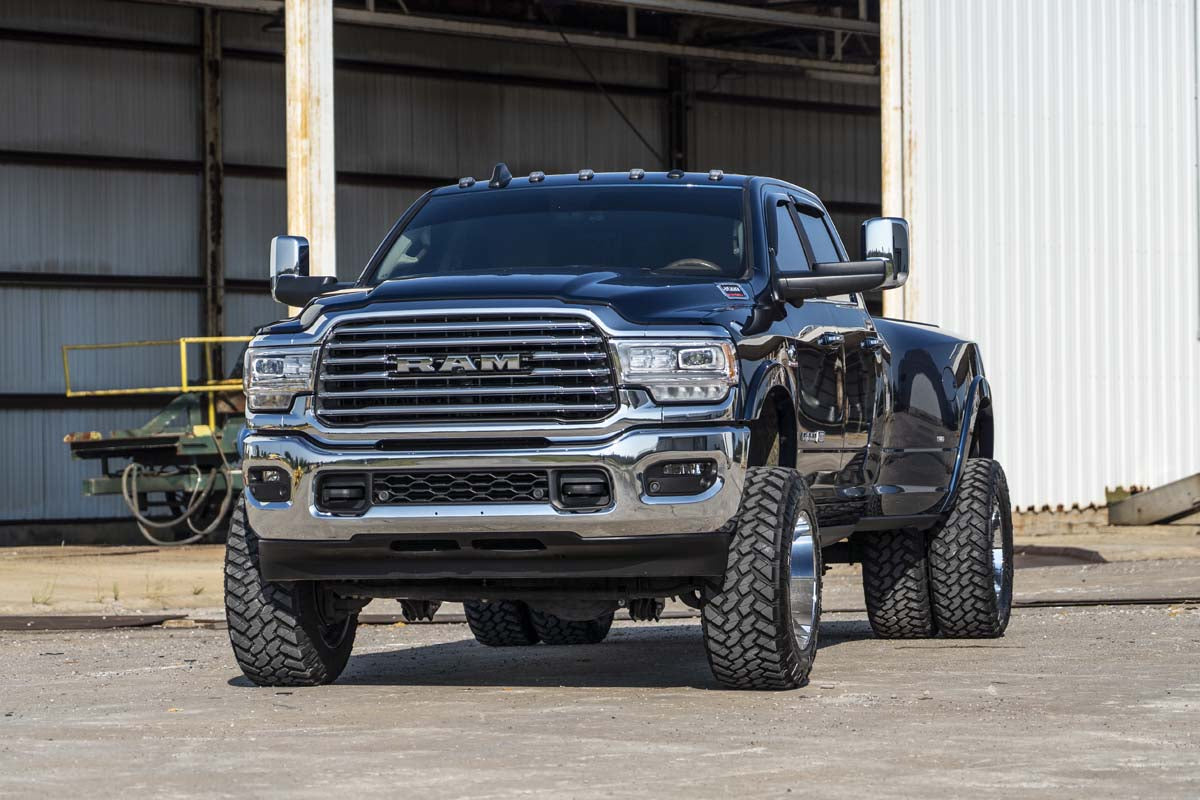

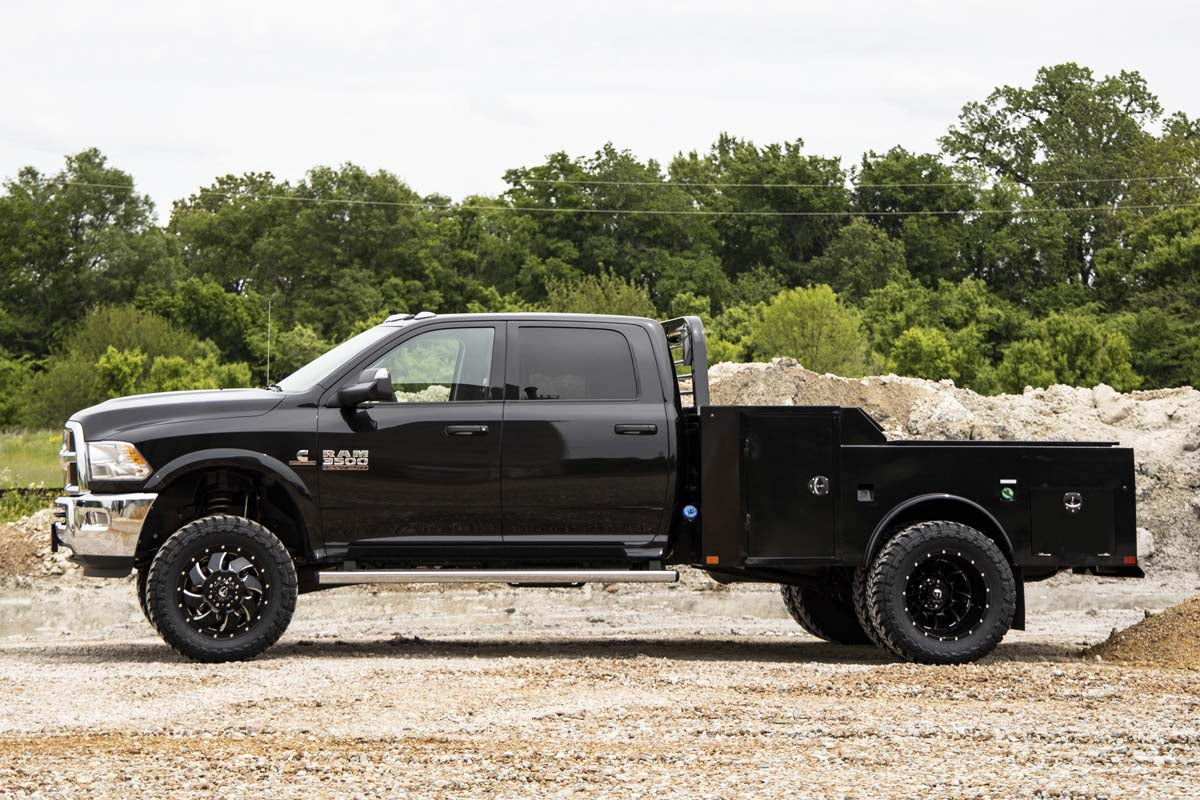

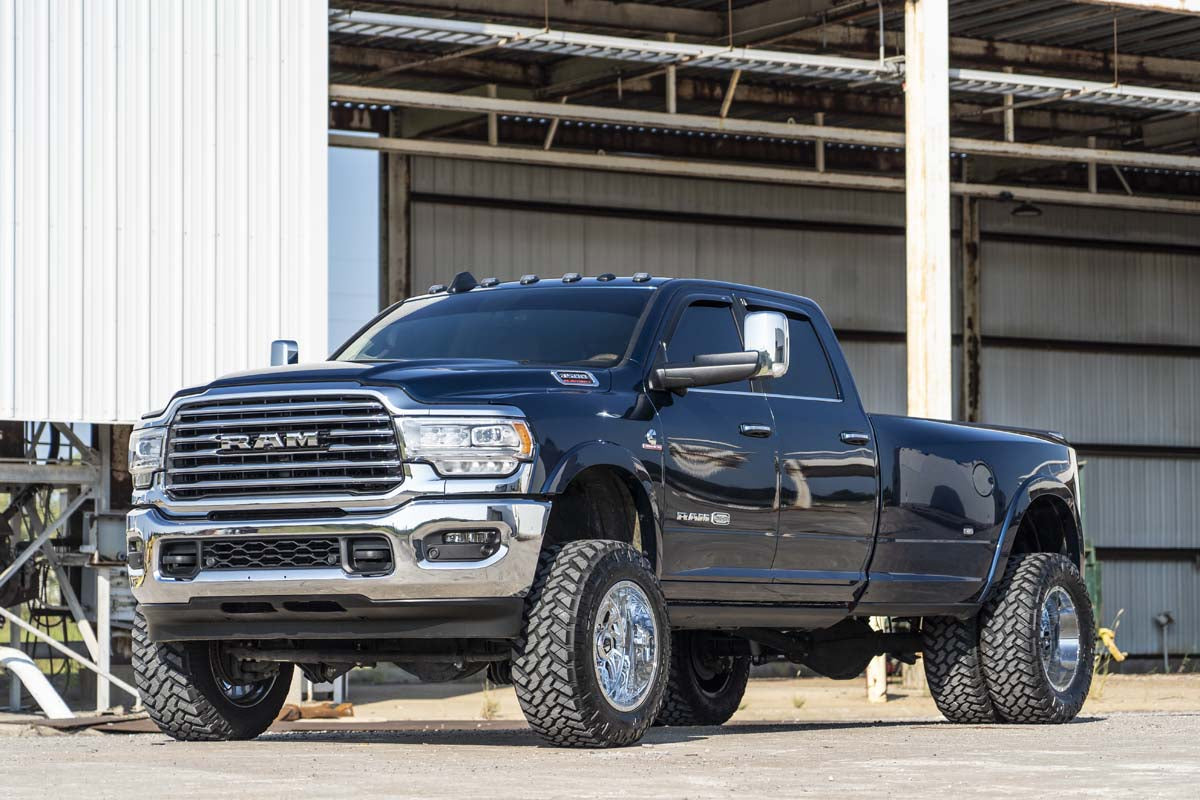

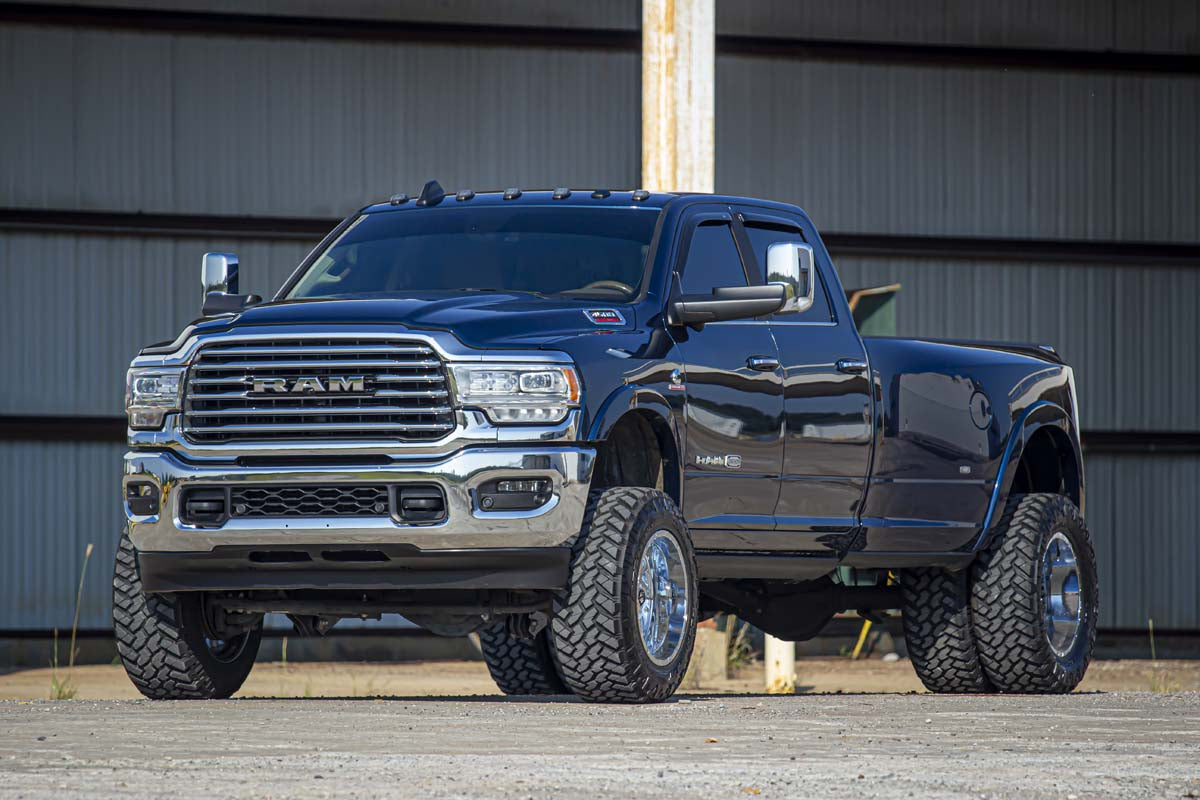

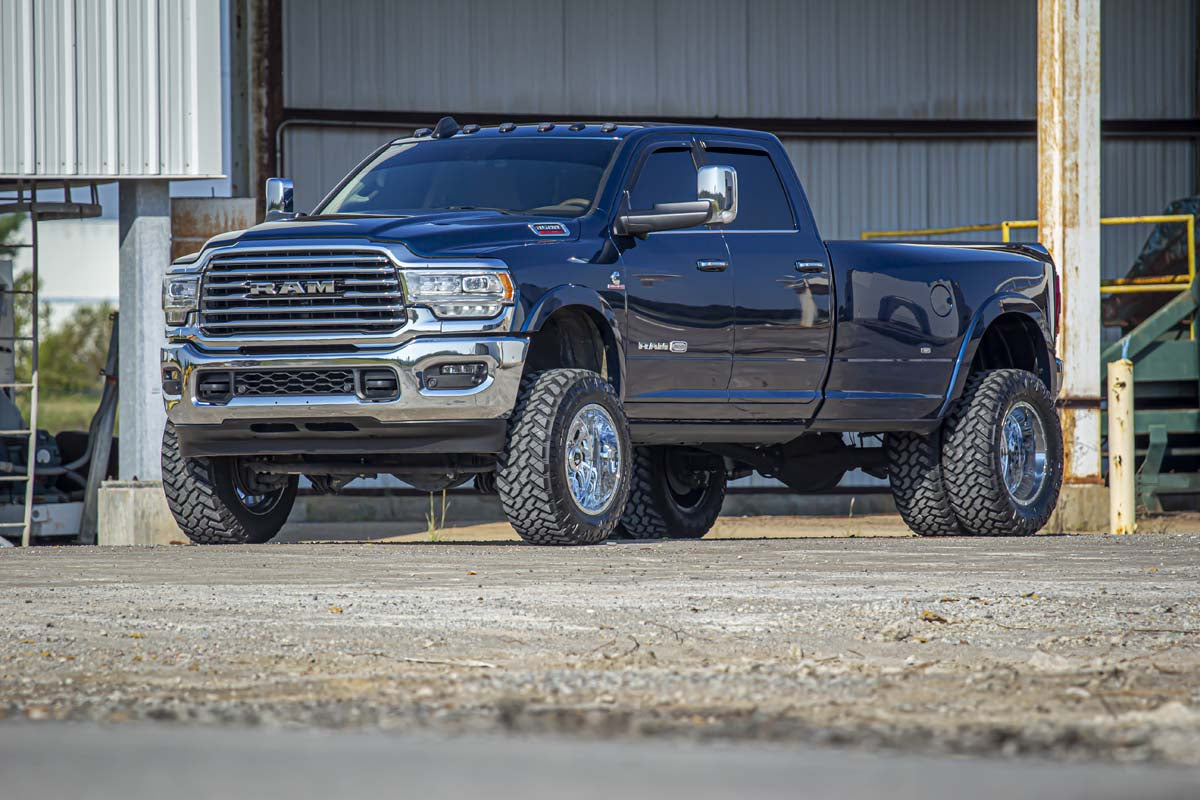

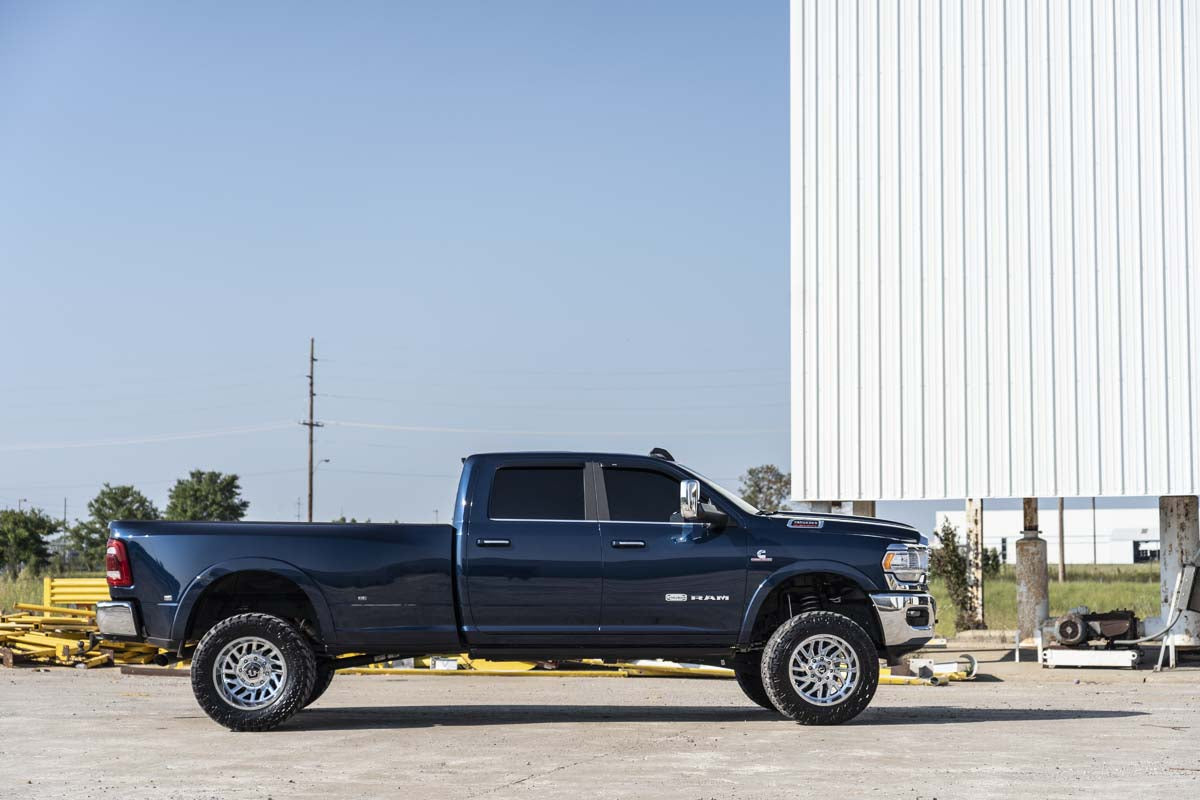

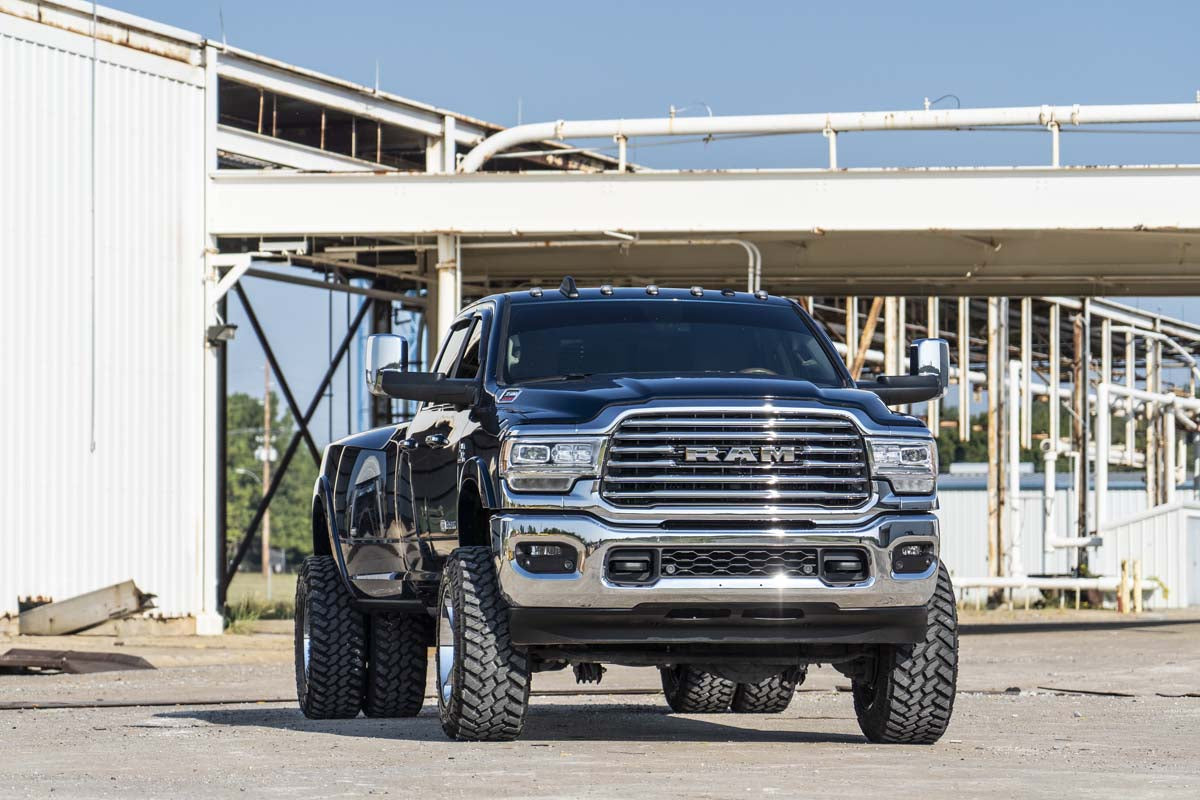

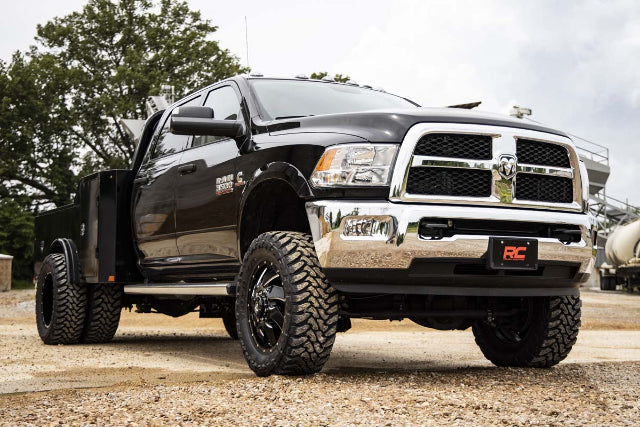

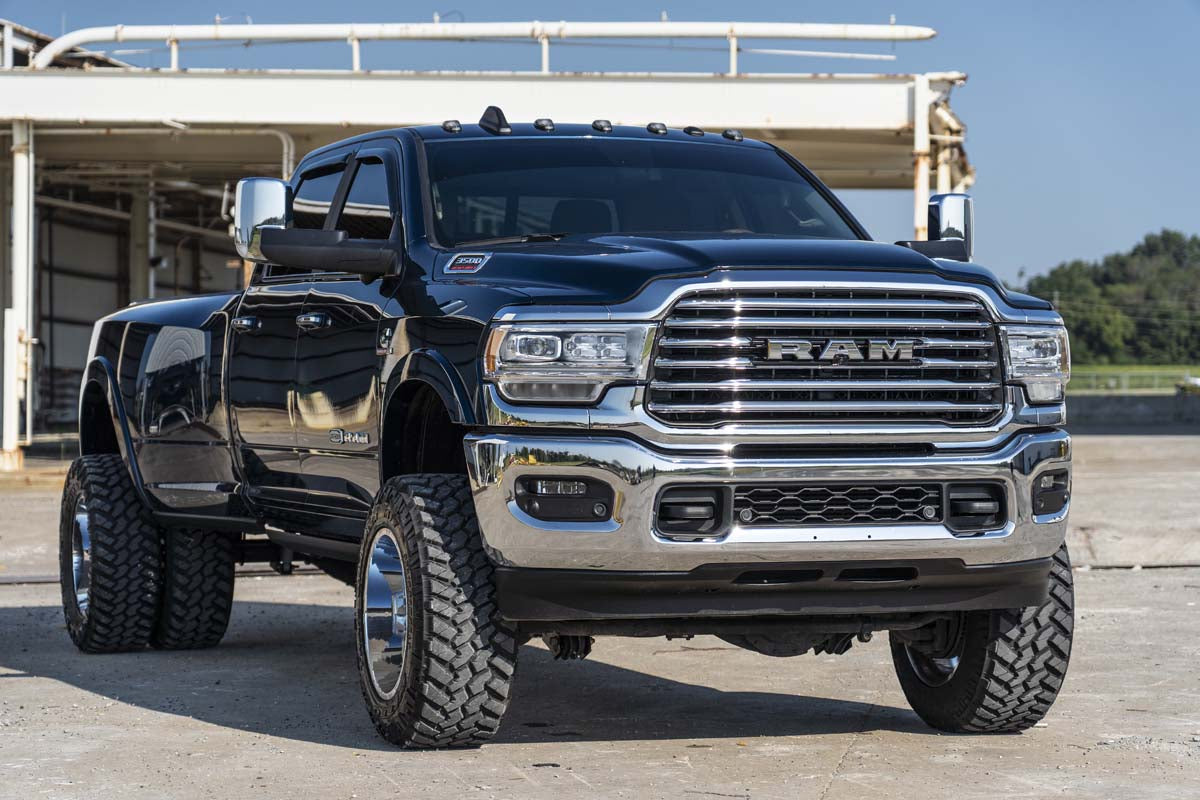

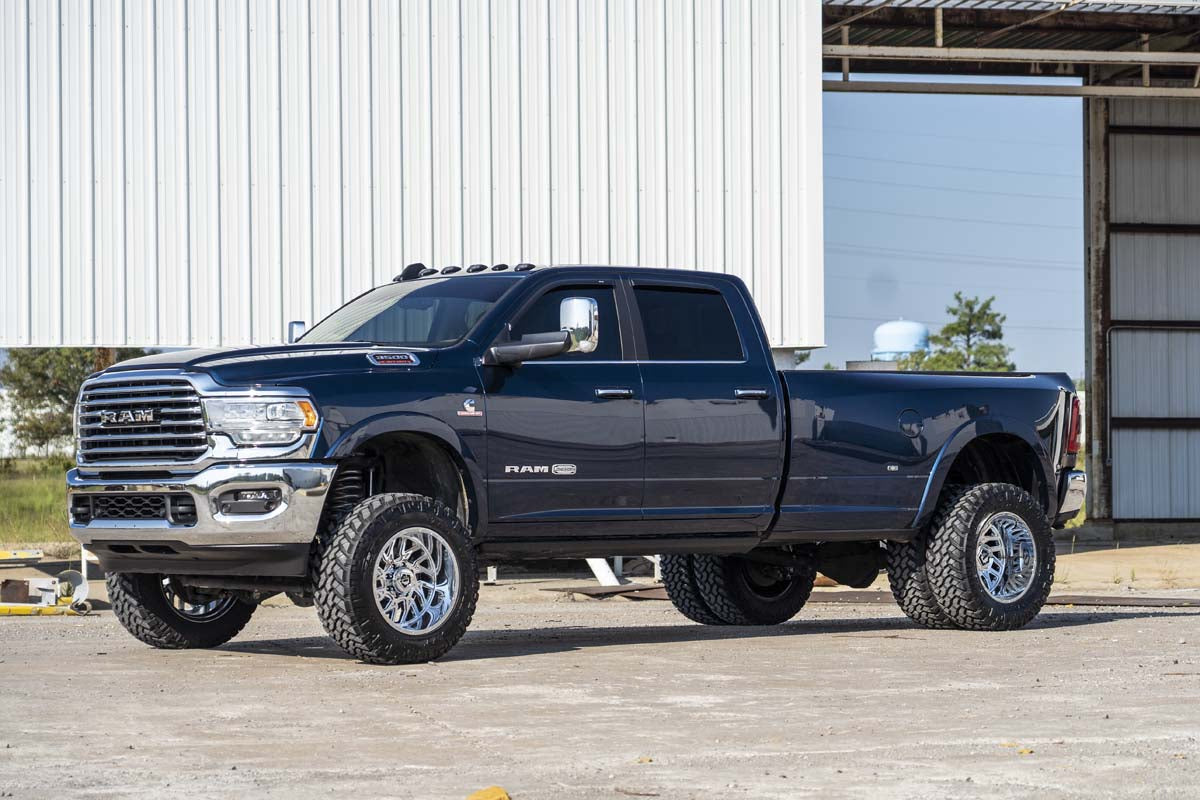

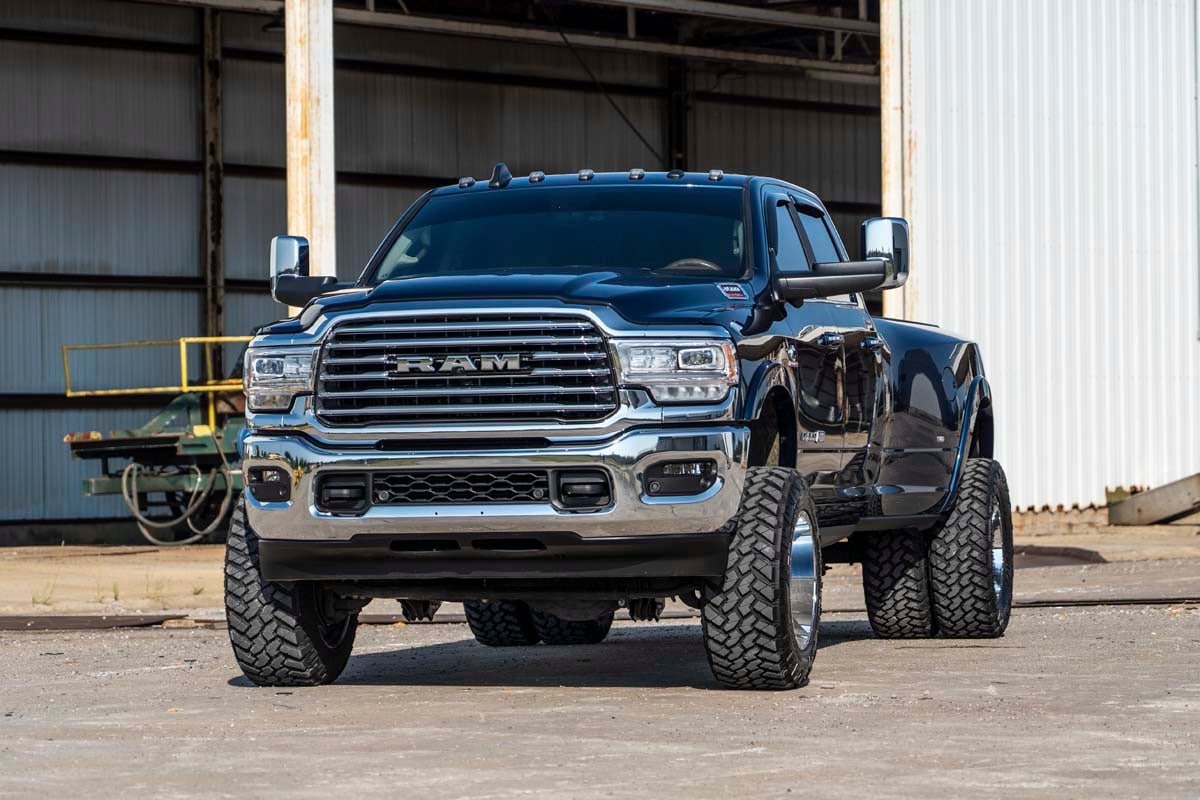

Rough Country 5 Inch Lift Kit | Diesel | Non-AISIN | Ram 3500 4WD (2019-2023)Description:Compliment your RAM 3500's aggressive, good looks with Rough Country's 5-inch Lift Kit for dually models. RAM Trucks come with a wealth of impressive features right from the factory. Rough Country's new 5-inch kit was engineered to retain these impressive factory specs while bumping up performance and durability where it's needed most. The result is a lifted beast with a mean profile and lush ride-quality that'll make other RAM owners wonder where you got yours from!
When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's 5-inch Suspension kit features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. These beefy, upgraded Radius Arms also feature a durable, Clevite Rubber Bushing for maximum vibration absorption. This kit also includes a set of front, lifted coil springs for unparalleled ride quality from your lifted Dodge Ram.
Features:Increased ground clearance
Track bar bracket keeps the front axle properly centered
Radius Arms offer a more factory ??like angle and feature a durable, Clevite Rubber Bushings for maximum vibration absorption
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off ??road use.
Notes:Requires removal of Transfer case for clocking ring install for correct front driveline geometry.
Does NOT fit 'Power Wagon' models
Does NOT fit air ride models
Rear wheels may require additional dually wheel spacers to run 12.50in wide tire
ONLY fits Diesel models
Requires minor cutting.
On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.
Does Not fit models with 6.7L HO Turbo Diesel with 6-speed Aisin Transmission.
Install Time:6-8 hours

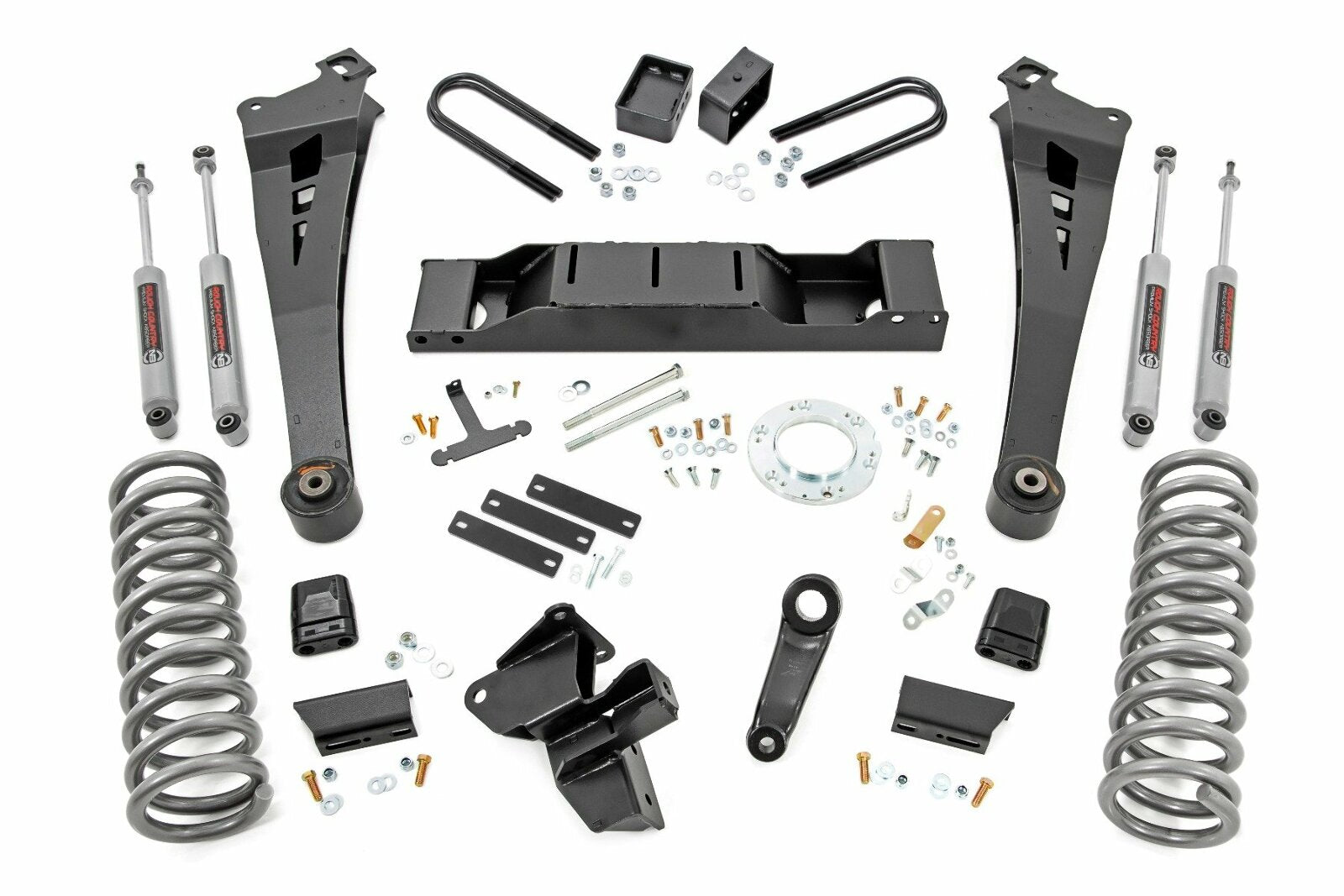

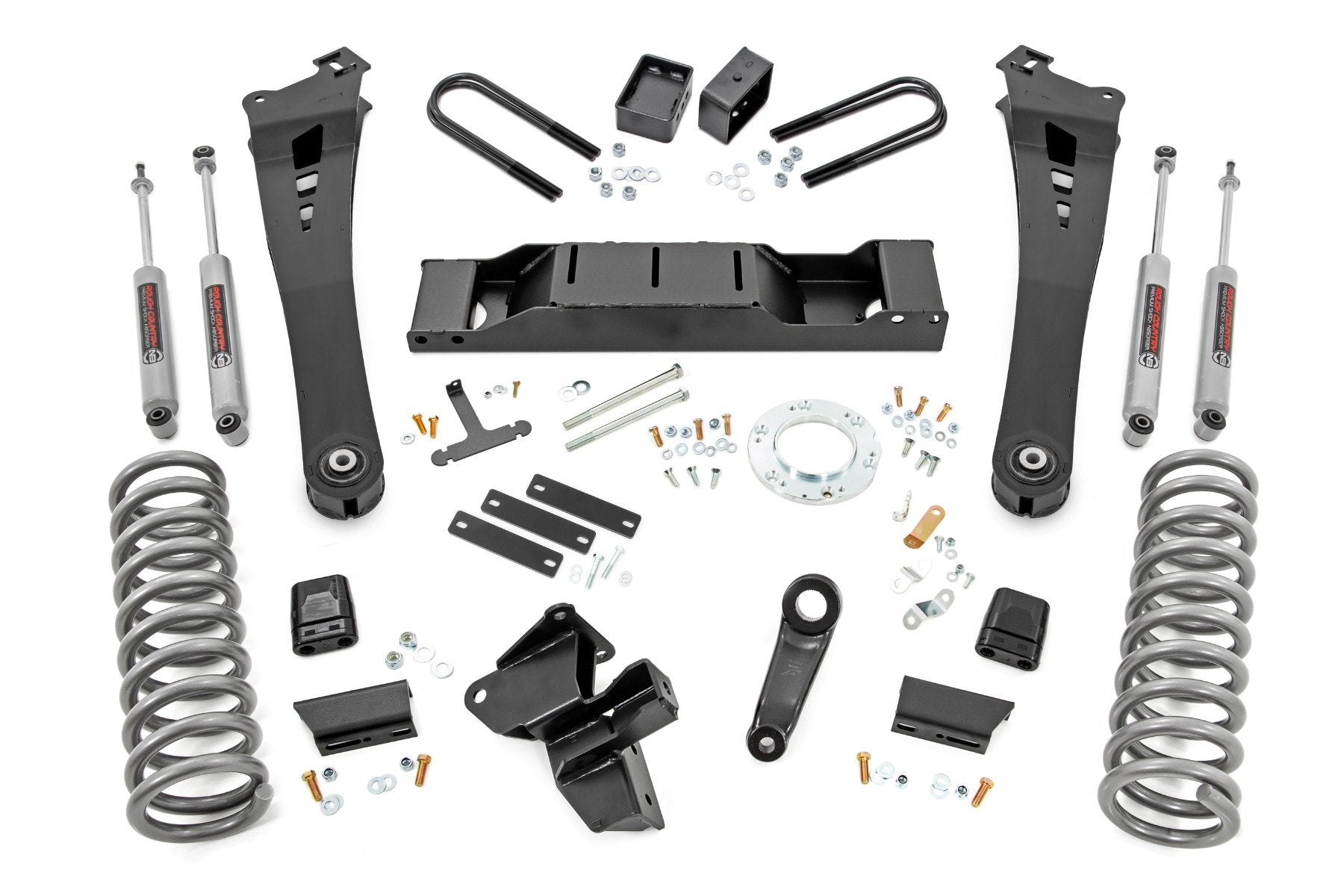

Front Components:Lifted Coil springs Radius arms Track Bar bracket Transmission crossmember clocking ring Sway-bar brackets Pitman arm Carrier bearing shims Hardware
Rear Components:Rear lift blocks U-bolts Track bar bracket Sway-bar links Hardware
Fitment:2019-2023 4WD Ram 3500
Tire Info:37x12.50R17 17x9 8x6.5/8x165.1 +0 -
37x12.50R20 20x9 8x6.5/8x165.1 +0 -
