Rough Country 5in GM Suspension Lift Kit w/N3 Struts 07-13 Avalanche 20801
Rough Country 5in GM Suspension Lift Kit w/N3 Struts 07-13 Avalanche 20801
SKU:RC20801
Regular price
$1,329.95 USD
Regular price
Sale price
$1,329.95 USD
Unit price
/
per
Shipping calculated at checkout.
Rough Country 5 Inch Lift Kit | N3 Struts | Chevy Avalanche 1500 2WD/4WD (07-13)
Features:
Provides highly sought level stance.
Includes pre-loaded coil for no-fuss installation
High clearance crossmember design gives unmatched ground clearance.
Requires no modification to the stock differential mounts, drivetrain or exhaust.
100% precision laser cut materials using the latest computer aided design process.
Notes:
Does NOT fit Auto Ride or Auto Leveling models.
Does NOT fit models with electric steering.
AWD models will require driveline modifications. (Must be converted to non-AWD).
Minor cutting and drilling is required.
18" or larger wheels are required.
Please view installation instructions for complete information on proper tire/wheel combinations.
Install Time:
8-10 hours

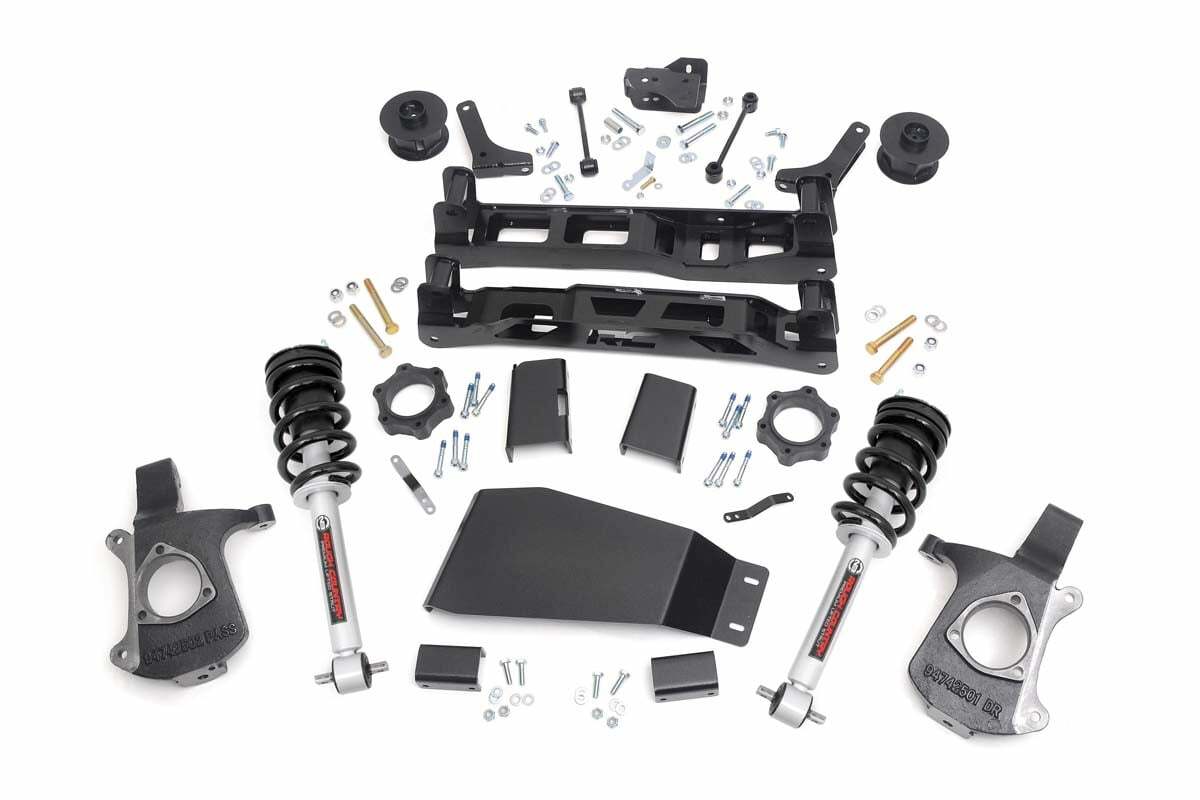

Front Components:
Lifted knuckles Front crossmember Rear crossmember Differential drop brackets CV spacers Lower skid plate Sway-bar drop brackets Brake line brackets Hardware
Rear Components:
Coil spring spacers Sway-bar links Track bar bracket Shock extensions Hardware
Fitment:
2007-2013 2WD Chevy Avalanche 1500
2007-2013 4WD Chevy Avalanche 1500
Tire Info:
295/55R20 Factory 20 6x5.5 - 0.25 Spacer
285/65R18 Factory 18 6x5.5 - -
305/65R18 18x9 6x5.5 +12 -
305/65R18 18x9 6x5.5 +18 -
305/55R20 20x9 6x5.5 +12 -
305/55R20 20x9 6x5.5 +18 -
Features:
Provides highly sought level stance.
Includes pre-loaded coil for no-fuss installation
High clearance crossmember design gives unmatched ground clearance.
Requires no modification to the stock differential mounts, drivetrain or exhaust.
100% precision laser cut materials using the latest computer aided design process.
Notes:
Does NOT fit Auto Ride or Auto Leveling models.
Does NOT fit models with electric steering.
AWD models will require driveline modifications. (Must be converted to non-AWD).
Minor cutting and drilling is required.
18" or larger wheels are required.
Please view installation instructions for complete information on proper tire/wheel combinations.
Install Time:
8-10 hours
Front Components:
Lifted knuckles Front crossmember Rear crossmember Differential drop brackets CV spacers Lower skid plate Sway-bar drop brackets Brake line brackets Hardware
Rear Components:
Coil spring spacers Sway-bar links Track bar bracket Shock extensions Hardware
Fitment:
2007-2013 2WD Chevy Avalanche 1500
2007-2013 4WD Chevy Avalanche 1500
Tire Info:
295/55R20 Factory 20 6x5.5 - 0.25 Spacer
285/65R18 Factory 18 6x5.5 - -
305/65R18 18x9 6x5.5 +12 -
305/65R18 18x9 6x5.5 +18 -
305/55R20 20x9 6x5.5 +12 -
305/55R20 20x9 6x5.5 +18 -
Want to customize this kit? Send us a message!
