Rough Country 5in GM Lift Kit w/N3 Shocks & Struts 14-18 1500 PU 4WD|Cast Steel
Rough Country 5in GM Lift Kit w/N3 Shocks & Struts 14-18 1500 PU 4WD|Cast Steel
SKU:RC22333
Regular price
$1,329.95 USD
Regular price
Sale price
$1,329.95 USD
Unit price
/
per
Shipping calculated at checkout.

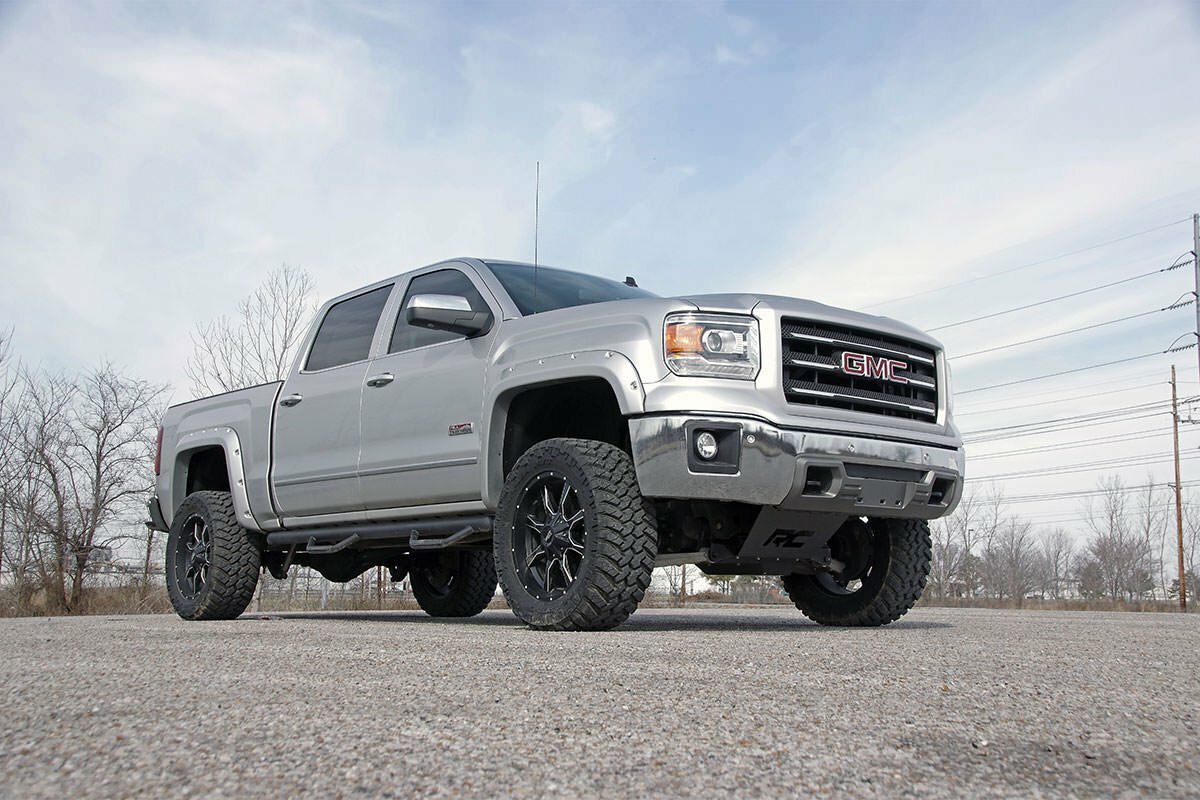

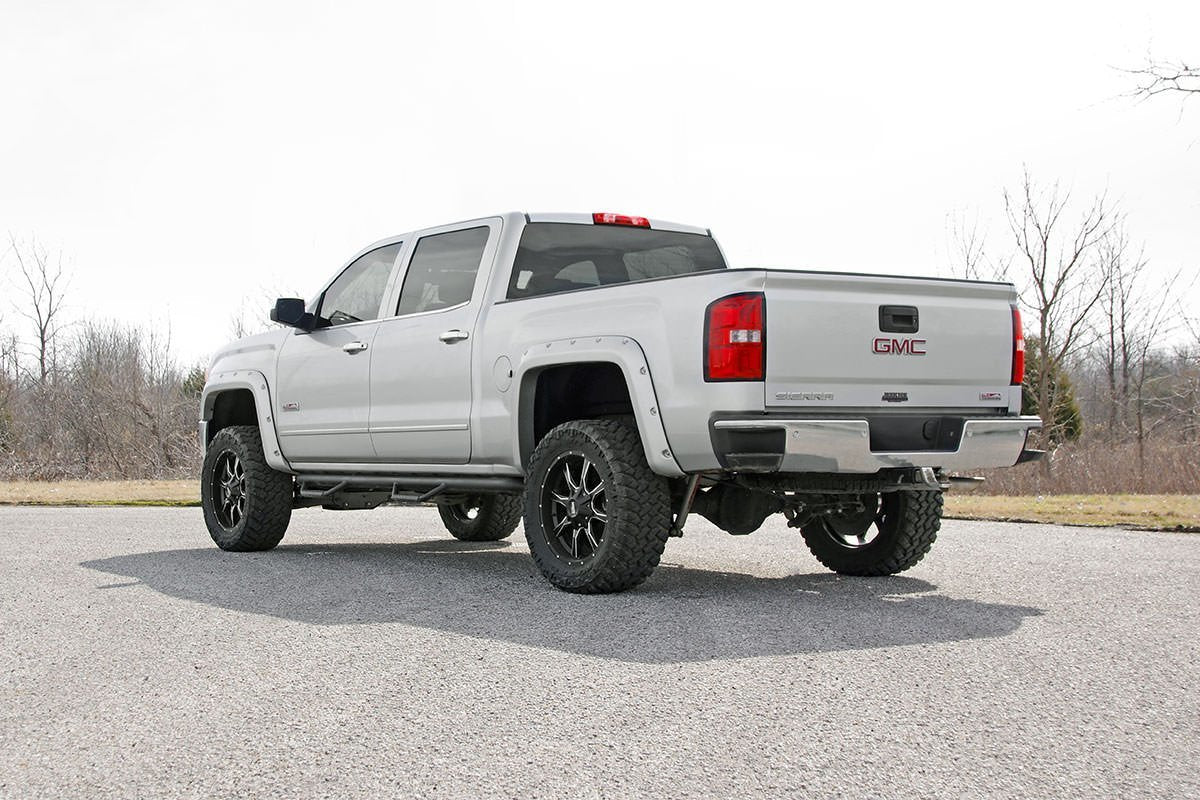

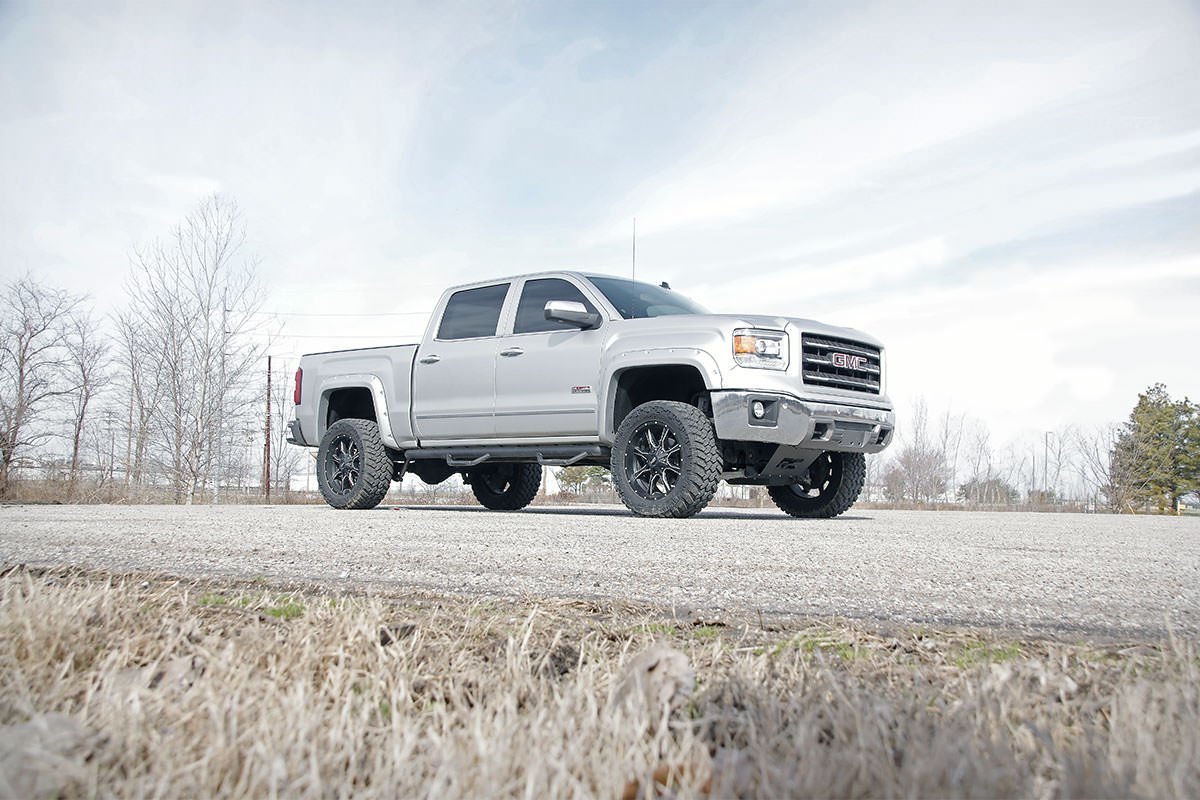

Rough Country 5 Inch Lift Kit | Cast Steel | N3 Struts | Chevy/GMC 1500 (14-18)
Features:
Can run 33-inch tires on factory 20-inch wheels.
Provides highly sought level stance.
High clearance crossmember design gives unmatched ground clearance.
100% precision laser cut materials using the latest computer aided design process.
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Notes:
Requires cutting and drilling.
Does not fit Hybrid eAssist models

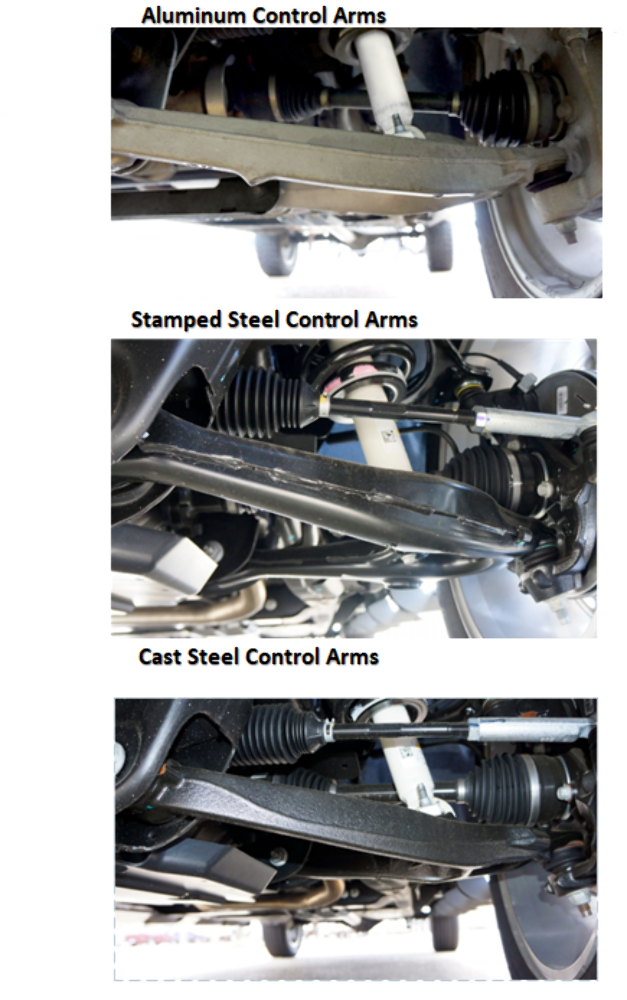

Does NOT fit models with stock Cast Aluminum or Stamped Steel control arms
Does NOT fit GMC Denali models with Magnetic Ride Control.
If wider than 33x12.50 tires are used, offset wheels will be required and trimming may be required.
18-inch or larger wheels are required.
Please view installation instructions for complete information on proper tire/wheel combinations.
If truck is equipped with a mass damper on the front differential, the damper must be removed.
Install Time:
8-10 hours
Front Components:
Lifted Struts Front crossmember Rear crossmember Upper strut spacers CV spacers Differential drop brackets Differential skid plate Sway-bar drop brackets Hardware
Rear Components:
Fabricated lift blocks Brake line brackets U-bolts Hardware
Fitment:
2014-2018 4WD Chevy Silverado 1500
2014-2018 4WD GMC Sierra 1500
Tire Info:
295/70R17 Factory 17 6x5.5 - -
295/55R20 Factory 20 6x5.5 - 0.25 Spacer
285/65R18 Factory 18 6x5.5 - -
305/70R17 17x9 6x5.5 +12 -
305/70R17 17x9 6x5.5 +18 -
305/65R18 18x9 6x5.5 +12 -
305/65R18 18x9 6x5.5 +18 -
305/55R20 20x9 6x5.5 +12 -
305/55R20 20x9 6x5.5 +18 -
Features:
Can run 33-inch tires on factory 20-inch wheels.
Provides highly sought level stance.
High clearance crossmember design gives unmatched ground clearance.
100% precision laser cut materials using the latest computer aided design process.
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Notes:
Requires cutting and drilling.
Does not fit Hybrid eAssist models
Does NOT fit models with stock Cast Aluminum or Stamped Steel control arms
Does NOT fit GMC Denali models with Magnetic Ride Control.
If wider than 33x12.50 tires are used, offset wheels will be required and trimming may be required.
18-inch or larger wheels are required.
Please view installation instructions for complete information on proper tire/wheel combinations.
If truck is equipped with a mass damper on the front differential, the damper must be removed.
Install Time:
8-10 hours
Front Components:
Lifted Struts Front crossmember Rear crossmember Upper strut spacers CV spacers Differential drop brackets Differential skid plate Sway-bar drop brackets Hardware
Rear Components:
Fabricated lift blocks Brake line brackets U-bolts Hardware
Fitment:
2014-2018 4WD Chevy Silverado 1500
2014-2018 4WD GMC Sierra 1500
Tire Info:
295/70R17 Factory 17 6x5.5 - -
295/55R20 Factory 20 6x5.5 - 0.25 Spacer
285/65R18 Factory 18 6x5.5 - -
305/70R17 17x9 6x5.5 +12 -
305/70R17 17x9 6x5.5 +18 -
305/65R18 18x9 6x5.5 +12 -
305/65R18 18x9 6x5.5 +18 -
305/55R20 20x9 6x5.5 +12 -
305/55R20 20x9 6x5.5 +18 -
Want to customize this kit? Send us a message!
