Rough Country 4.5" X-Series Susp Lift Kit w/N3 Shocks fits Cherokee XJ 1984-01
Rough Country 4.5" X-Series Susp Lift Kit w/N3 Shocks fits Cherokee XJ 1984-01
SKU:RC63330
Description:
Take your XJ to new heights with our 4.5" X-Series Suspension Lift System for 84-01 Jeep Cherokee XJ's! Gain greater clearance, better handling, and the cleanest looking 4.5-inch lift available!
This X-Series kit features Rough Country's X-Flex Control arms in the front upper and lower position. X-Flex Arms are fully adjustable, and feature a ball-in joint, massive 2.5in diameter body, and huge 1.25in threads. X-Flex Control Arm Joints have long offered considerable range, strength, and safety for off-road applications - but it doesn't stop there. Also included is a transfer case drop kit, forged adjustable track bar, stainless steel brake lines, and sway-bar disconnects. A set lifted coil springs and all-new rear lifted leaf springs help your XJ gain a total of 4.5in in lift - plenty of clearance for 32in tires.
Improve your on and off-road ride quality with Rough Country's premium N3 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body, this shock offers up to 36kN Tensile Strength for a long lifespan of impressive vibration dampening. So if you're looking for longevity and an uncompromised ride, look no further. Rough Country's X-Series N3 features the best of the best in off-road hardware.
This all-inclusive kit comes with everything you need, and best of all this kit features Rough Country's Lifetime Replacement Warranty.
Features:
Easy bolt-on installation.
Increased ground clearance.
Levels the front with the rear of the vehicle.
Quick disconnects quickly and easily store out of the way when not in use.
Front adjustable track bar is made of forged solid steel for unsurpassed strength and durability.
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
X-Flex control arm features:
Clevite brand OEM style rubber bushings.
Flex joints feature a massive 2.5" diameter body and 1.25" thread.
Fully greasable.
Upper joints pivot up to 20 degrees.
Lower joints pivot up to 35 degrees.
Notes:
Does NOT fit models with AX5 transmission.A Slip Yoke Eliminator with CV Driveshaft are highly recommended to avoid driveline vibration.
Rough Country's NP231 SYE available here! SKU: 50-7907
Rough Country's replacement cv driveshaft available here! SKU: 5076.1
Install Time:
5-6 hours

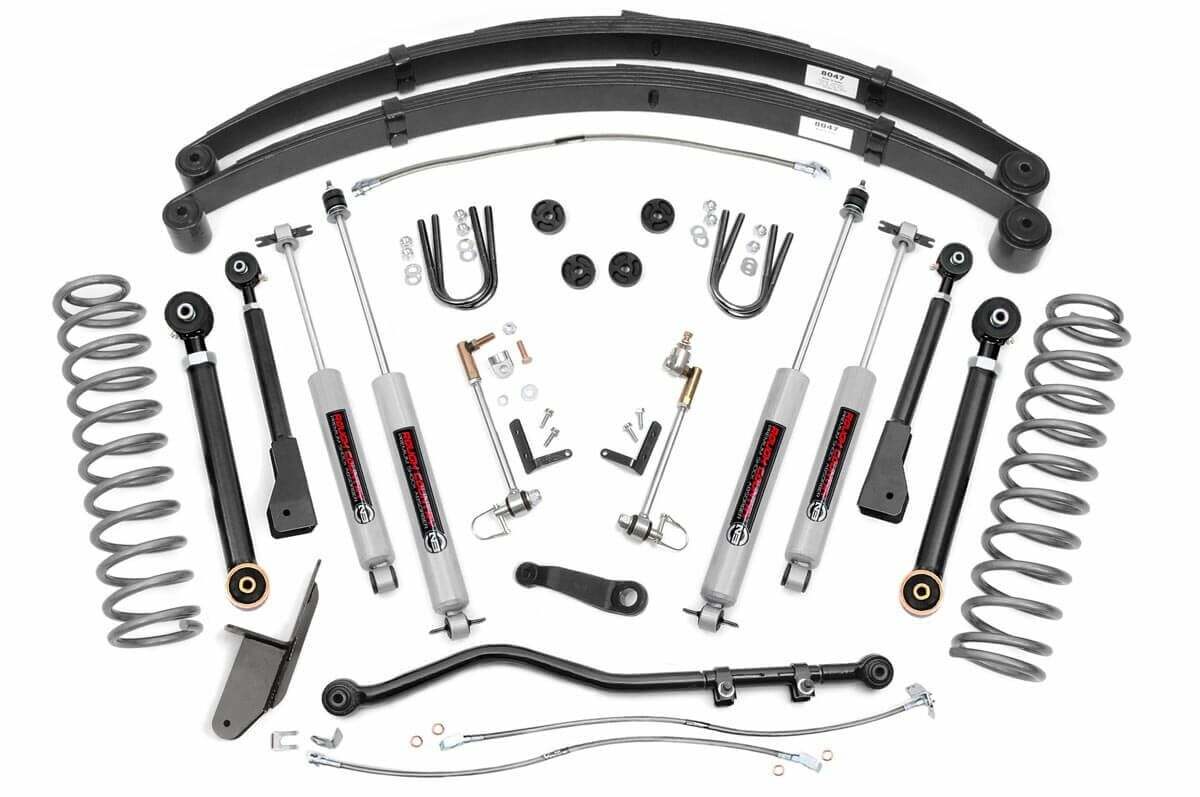

Front Components:
Lifted coil springs Adjustable upper control arms Adjustable lower control arms Transfer case drop kit Forged adjustable track bar Track bar bracket Drop pitman arm Sway-bar quick disconnects Stainless steel braided brake lines Hardware
Rear Components:
Lifted leaf springs Stainless steel braided brake line U-bolts Hardware
Fitment:
1984-2001 2WD Jeep Cherokee XJ
1984-2001 4WD Jeep Cherokee XJ
Tire Info:
32x11.50R15 15x8 5x4.5 -19 -
32x11.50R15 15x8 5x4.5 -19 -
32x11.50R15 15x8 5x4.5 -18 -
32x11.50R15 15x8 5x4.5 -18 -
32x11.50R15 15x8 5x4.5 -12 -
32x11.50R15 15x8 5x4.5 -6 -
32x11.50R15 15x8 5x4.5 +0 -
32x11.50R15 15x8 5x4.5 +1 -
32x11.50R15 15x8 5x4.5 +6 -
32x11.50R16 16x8 5x4.5 -19 -
32x11.50R16 16x8 5x4.5 -19 -
32x11.50R16 16x8 5x4.5 -18 -
32x11.50R16 16x8 5x4.5 -18 -
32x11.50R16 16x8 5x4.5 -12 -
32x11.50R16 16x8 5x4.5 -6 -
32x11.50R16 16x8 5x4.5 +0 -
32x11.50R16 16x8 5x4.5 +1 -
32x11.50R16 16x8 5x4.5 +6 -
32x11.50R17 17x8 5x4.5 -19 -
32x11.50R17 17x8 5x4.5 -18 -
32x11.50R17 17x8 5x4.5 +0 -
32x11.50R17 17x8 5x4.5 +1 -
32x11.50R17 17x8 5x4.5 +6 -
31x10.50R17 17x8.5 5x4.5 +0 -
31x10.50R17 17x8.5 5x4.5 +1 -
31x10.50R17 17x9 5x4.5 -12 -
31x10.50R17 17x9 5x4.5 +0 -
31x10.50R17 17x9 5x4.5 +1 -
32x11.50R18 18x8 5x4.5 -19 -
32x11.50R18 18x8 5x4.5 -18 -
32x11.50R18 18x8 5x4.5 +0 -
32x11.50R18 18x8 5x4.5 +1 -
32x11.50R18 18x8 5x4.5 +6 -
31x10.50R18 18x8.5 5x4.5 +0 -
31x10.50R18 18x8.5 5x4.5 +1 -
31x10.50R18 18x9 5x4.5 -12 -
31x10.50R18 18x9 5x4.5 +0 -
31x10.50R18 18x9 5x4.5 +1 -
32x11.50R20 20x8 5x4.5 -19 -
32x11.50R20 20x8 5x4.5 -18 -
32x11.50R20 20x8 5x4.5 +0 -
32x11.50R20 20x8 5x4.5 +1 -
32x11.50R20 20x8 5x4.5 +6 -
31x10.50R20 20x9 5x4.5 -12 -
31x10.50R20 20x9 5x4.5 +0 -
31x10.50R20 20x9 5x4.5 +1 -
Want to customize this kit? Send us a message!
