Rough Country 4.5" Lift Kit OVLD C/O Vertex for Ford Super Duty 4WD 2011-2014
Rough Country 4.5" Lift Kit OVLD C/O Vertex for Ford Super Duty 4WD 2011-2014
SKU:RC56359
Description:
Explore New Heights. Give your third-generation Ford Super Duty superior lift height with Rough Country's 4.5-inch Coilover Suspension Lift Kit! This all-inclusive kit comes with everything you need for a total transformation of your truck. Run up to 35in tires while preserving the smooth, factory ride quality with this impressive upgrade.
Durable Components. When changing a vehicle's suspension, the key to preserving ride quality is keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's new 4.5-inch Suspension Lift features a set of ultra-durable radius arm drop brackets, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. Utilizing this conversion kit you're removing the factory independent coil shock and coil set-up and replacing it with a massive 2.5in piston, nitrogen-charged, 8-stage adjustable Vertex Coilover. Rough Country's Vertex Coilovers feature a monotube design with an external reservoir for increased oil capacity and damping sensitivity. When it comes to investing in a high-end kit, you'll be pleased to find that Rough Country's 2.5in piston design is beefier and offers an impressive 56% greater fluid capacity than the average reservoir shock. Each kit is paired with a monotube shock that provides optimal damping control.
Installation. Requiring cutting and drilling to install, an estimated timeframe of 6-10 hours is recommended to complete this full installation. This full kit can be installed at home and can be completed efficiently and quickly!
Limited Lifetime Replacement Warranty. Rough Country's 4.5-inch Coilover Suspension Lift Kit is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty give yourself peace of mind when using Rough Country's Suspension products!
Features:
Easy bolt-on installation.
Increased ground clearance.
Levels the front with the rear of the vehicle.
Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
Notes:
Does NOT F-350 models.
Does NOT fit gas engine models.
Does NOT fit dually models.
A carrier-bearing drop bracket is needed for trucks equipped with a 2-piece rear driveshaft. SKU: 1197
Install Time:
6-10 hours

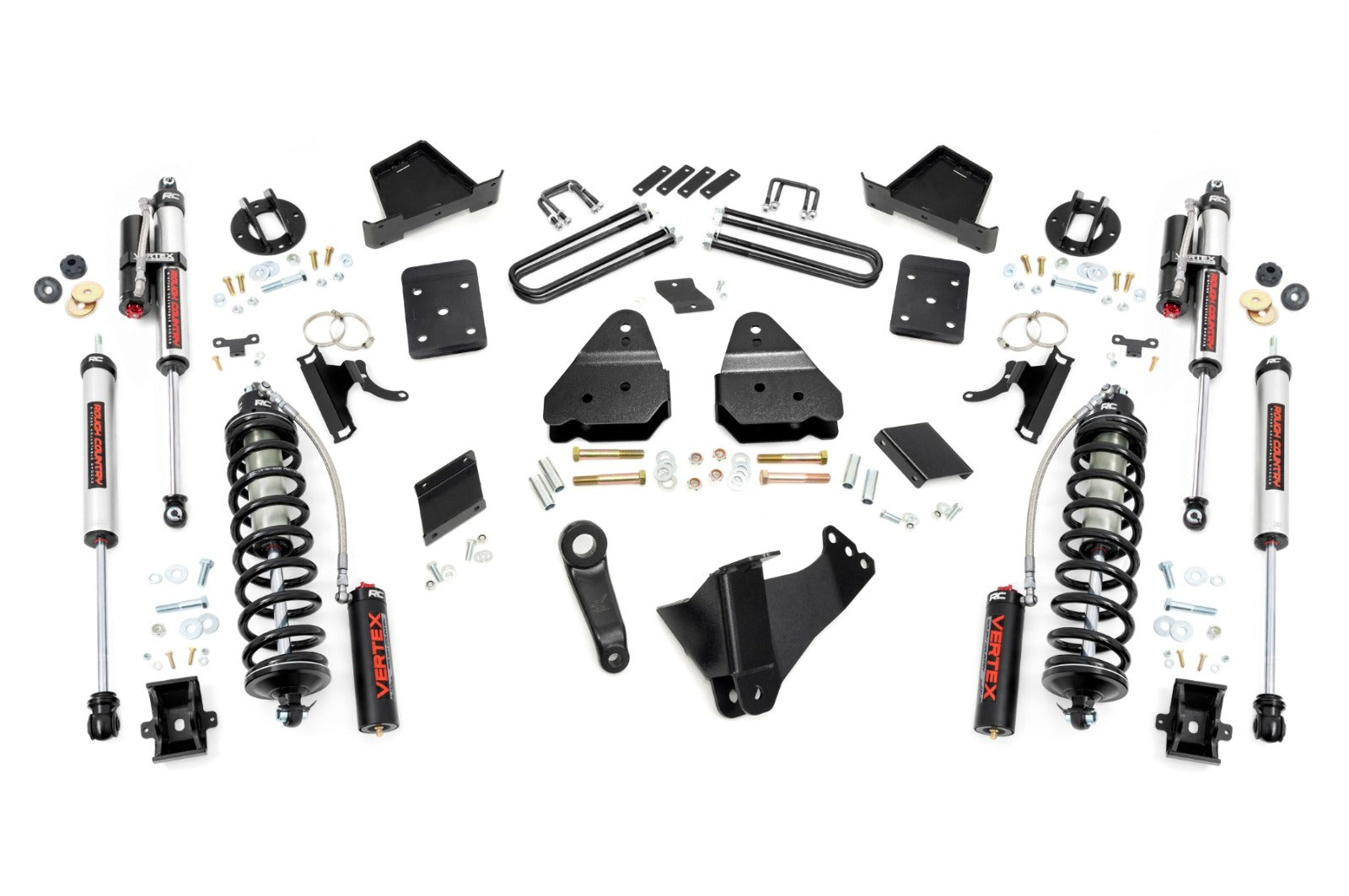

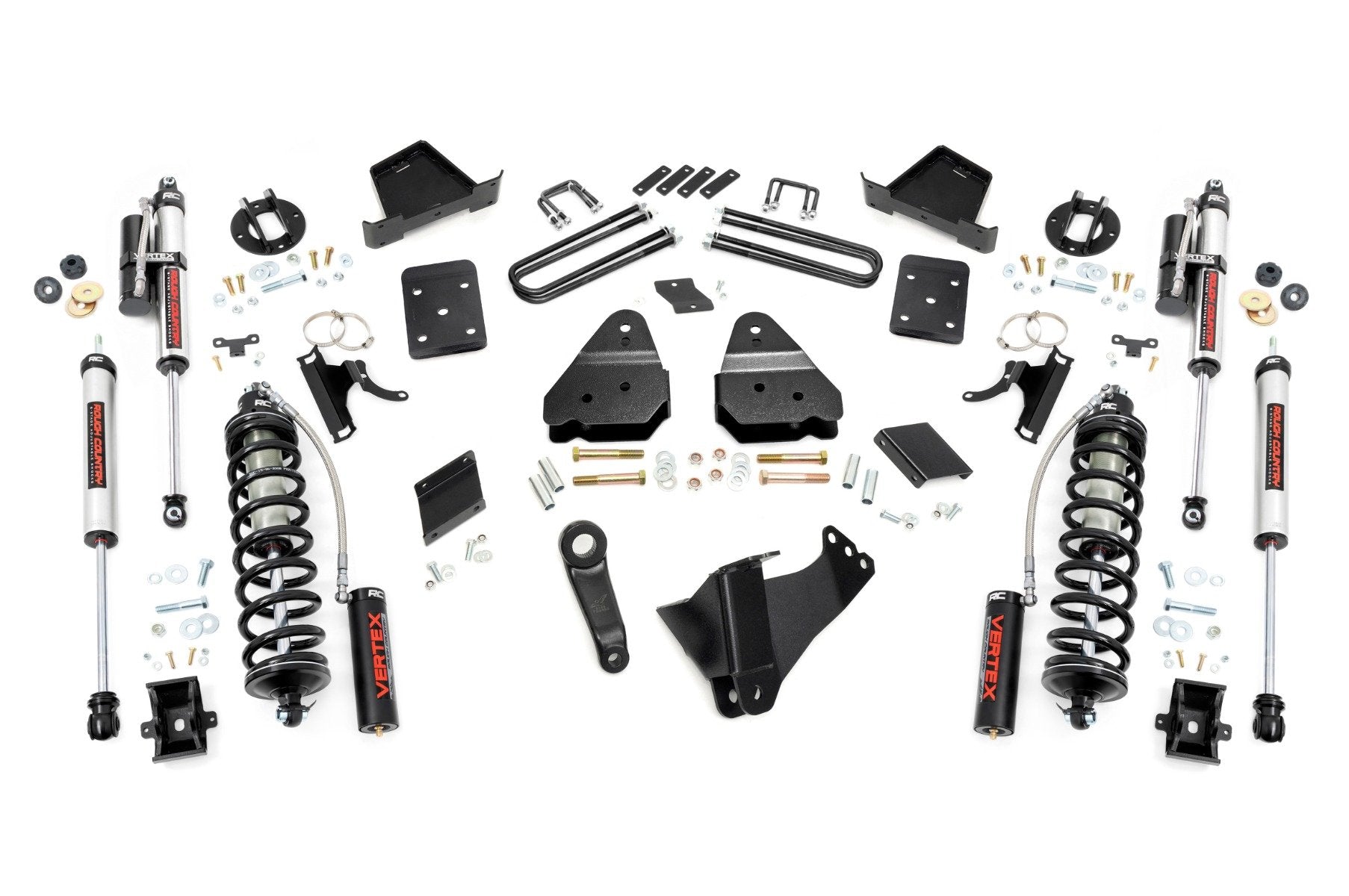

Front Components:
Vertex Coilovers Radius Arm Drop Brackets Sway-Bar Drop Brackets Track Bar Drop Bracket Stabilizer Relocation Brackets Pitman Arm Brake Line Brackets Bumpstop Spacers Hardware
Rear Components:
Fabricated Anti-Wrap Lift Blocks Carrier Bearing Drop Bracket Brake Line Brackets U-Bolts Hardware
Fitment:
2011-2014 4WD Ford F-250 Super Duty
Tire Info:
35x12.50R17 17x9 8x170 -12 -
35x12.50R17 17x9 8x170 +0 -
35x12.50R17 17x9 8x170 +1 -
35x12.50R18 18x9 8x170 -12 -
35x12.50R18 18x9 8x170 +0 -
35x12.50R18 18x9 8x170 +1 -
35x12.50R20 20x9 8x170 -12 -
35x12.50R20 20x9 8x170 +0 -
35x12.50R20 20x9 8x170 +1 -
295/60R20 20x10 8x170 -25 Minor Trimming
295/60R20 20x10 8x170 -24 Minor Trimming
295/60R20 20x10 8x170 -19 Minor Trimming
295/60R20 20x10 8x170 -18 Minor Trimming
35x12.50R20 20x10 8x170 -25 Minor Trimming
35x12.50R20 20x10 8x170 -24 Minor Trimming
35x12.50R20 20x10 8x170 -19 Minor Trimming
35x12.50R20 20x10 8x170 -18 Minor Trimming
35x12.50R20 20x12 8x170 -44 Minor Trimming
35x12.50R22 22x10 8x170 -25 Minor Trimming
35x12.50R22 22x10 8x170 -24 Minor Trimming
35x12.50R22 22x10 8x170 -19 Minor Trimming
35x12.50R22 22x10 8x170 -18 Minor Trimming
35x12.50R22 22x12 8x170 -44 Minor Trimming
Want to customize this kit? Send us a message!
