Rough Country 3 Inch Lift Kit M1 for Ford SuperDuty 4WD 17-22 50240

Rough Country 3 Inch Lift Kit | M1 | Ford Super Duty 4WD (2017-2022)

Description:

Give your 17-20 Ford Super Duty an impressive upgrade, front to back with Rough Country's 3" Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look that gives an improved ride height and more aggressive appearance.

This kit features a set of front, lifted coil springs spacers allowing you gain additional ride height without sacrificing ride quality or performance. A set of radius arm drop brackets as well as a track bar drop bracket are provided to keep everything at optimum angles for a factory-like ride, even after lifting.

A set of Rough Country's premium N3 shocks are also included. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.

Get the wheels you want! Rough Country's 3" Suspension Lift Kit comes with everything you need to fit up to a 35" tire with proper wheel backspacing.

Best of all, Rough Country's 3" Suspension Lift Kit is backed by our Lifetime Replacement Warranty.

Features:
Easy bolt-on installation
Maintains factory ride quality
Increased ground clearance
Levels the front with the rear of the vehicle
Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.

Notes:
Does NOT F-350 models.
Does NOT fit dually models.
Does NOT fit 4" rear axle tubes
Does NOT work on models equipped with Tremor Factory Trim Package
If equipped with factory top mount overload spring it will need to be removed

Install Time:
3-4 hours

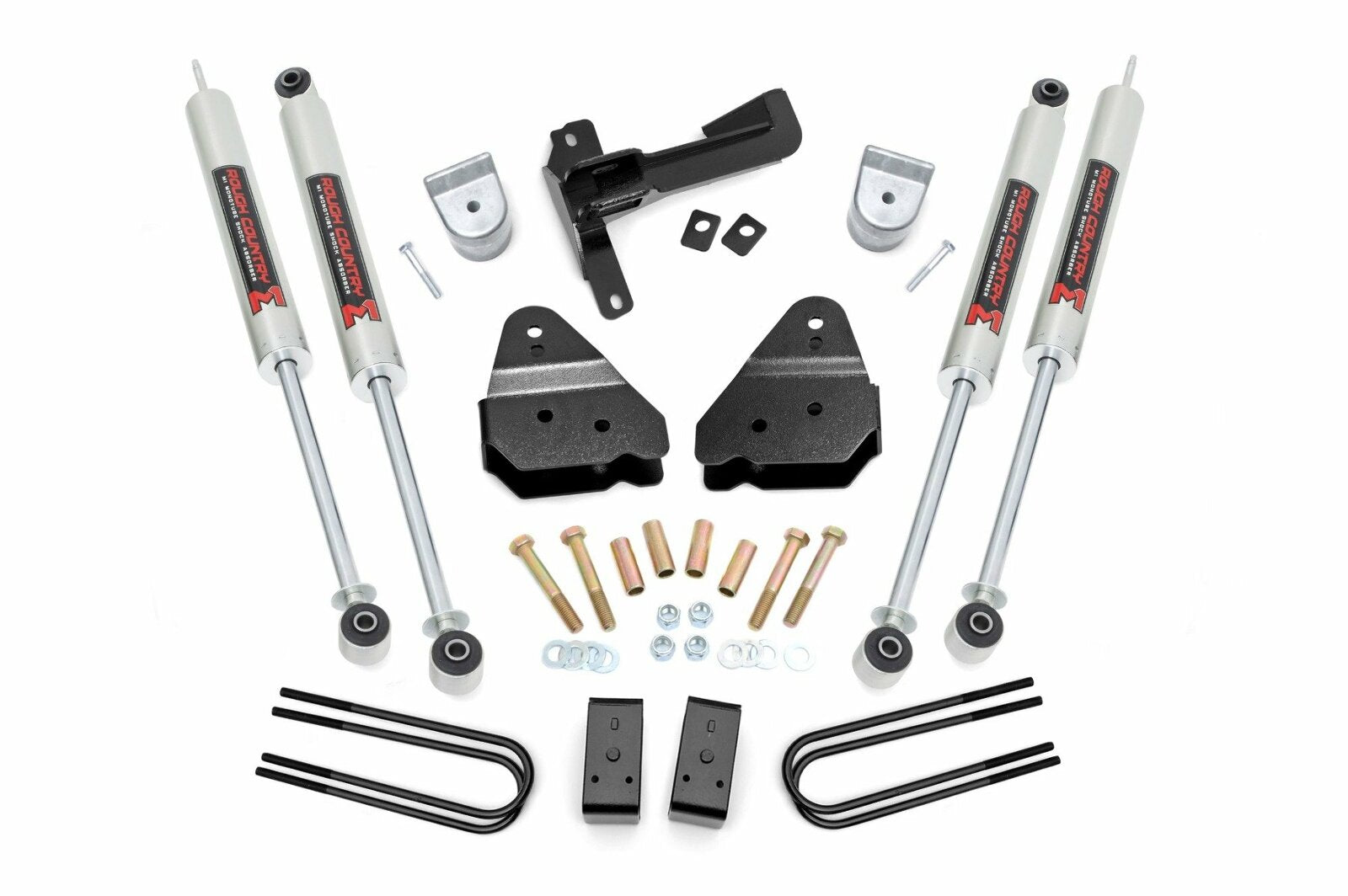

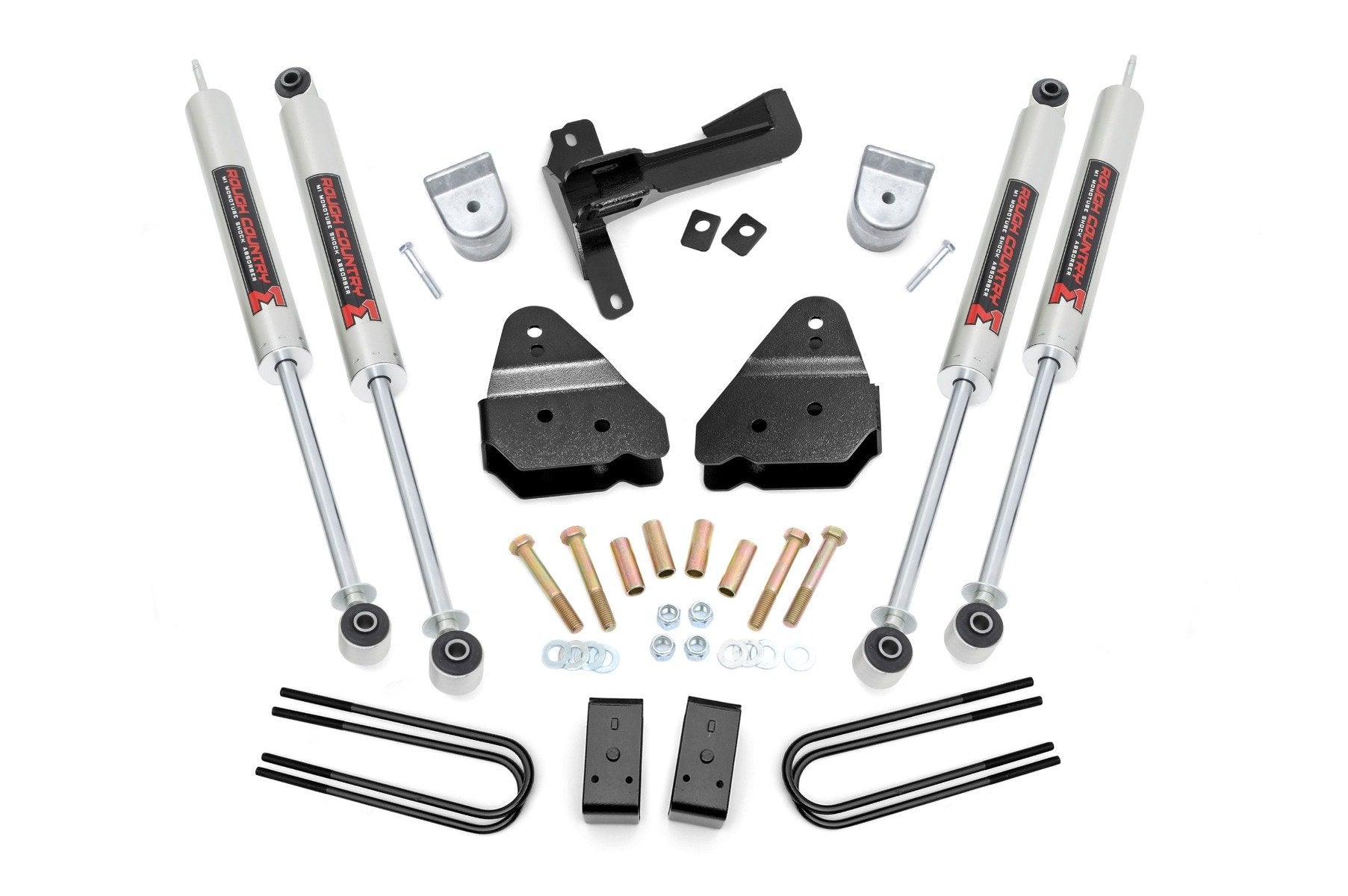

Front Components:
Coil spring spacers Radius arm drop brackets Track bar drop bracket Hardware

Rear Components:
4in lift blocks U-bolts Hardware

Fitment:
2017-2023 4WD Ford F-250 Super Duty

Tire Info:
35x12.50R20 Factory 20 8x170 - -
35x12.50R18 Factory 18 8x170 - -
35x12.50R17 Factory 17 8x170 - -
35x12.50R17 17x9 8x170 +0 Minor Trimming
35x12.50R17 17x9 8x170 +1 Minor Trimming
35x12.50R17 17x9 8x170 +18 Minor Trimming
35x12.50R17 17x9 8x170 +20 Minor Trimming
35x12.50R18 18x9 8x170 +0 Minor Trimming
35x12.50R18 18x9 8x170 +1 Minor Trimming
35x12.50R18 18x9 8x170 +18 Minor Trimming
35x12.50R18 18x9 8x170 +20 Minor Trimming
35x12.50R20 20x9 8x170 +0 Minor Trimming
35x12.50R20 20x9 8x170 +1 Minor Trimming
35x12.50R20 20x9 8x170 +18 Minor Trimming
35x12.50R20 20x9 8x170 +20 Minor Trimming
