Rough Country 3 Inch Lift Kit for Ford F-150 4WD 2023 41430

Rough Country 3 Inch Lift Kit | Forged UCA | Ford F-150 4WD (2023)

Description:

Improved Ground Clearance and Ride Quality. Rough Country's 3-inch Bolt-On Kit offers easy installation and aggressive good looks at an incredible value. Take your truck to new heights with this excellent option for your ninth-generation Ford F-150.

High-Quality Construction. This kit features a set of high-quality, Forged 6082-6 Aluminum Upper Control Arms designed to make alignment adjustments easier and Clevite rubber bushings for enhanced durability. These arms are designed to promote a factory-like geometry by keeping the ball joint at optimum angles after lifting. This design allows for an improved, greater range of motion from the ball-joint, with less stress, wear and tear. Also included are a set of rear blocks to provide lift height in the rear. Once installed, this kit gives your truck plenty of ride height for up to 34in tires while offering a clean, level look from front to rear. Retain your stock wheels with this kit when you use Rough Country's 0.25-inch wheel spacer.

Installation and Warranty. This all-inclusive kit comes with everything you need, and installation is a piece of cake compared to other kits on the market! Featuring a 100% bolt-on installation process that requires zero cutting or drilling, this kit can be installed using common tools in a home garage, and allows the truck to be returned to stock at any time if so desired. You also get peace of mind knowing that your purchase comes with a limited lifetime replacement warranty for manufacturer defects. With Rough Country's industry-leading warranty, you can be sure that your Rough Country lift kit is protected from structural and workmanship damage after the date of purchase.

Features:
Easy Bolt-On installation.
No Cutting or Drilling required!
Includes New tubular upper control arms.
Control arms keep ball joints at optimum angles for less wear and tear.
Control arms include Clevite rubber bushings for enhanced durability.
Increased ground clearance.
Levels the front and rear of the truck.
Can be returned to stock.

Optional N3 Loaded Struts
Includes pre-loaded coil.
Maintains smooth, factory-like ride.
Increased ground clearance.
Engineered for lifted applications.
Infinitely Variable Damping.
Leak-proof piston seal.
Massive 1 3/8in Bore.
Silver powder coat finish.
3-year Manufacturer's Warranty.
Optional M1 Monotube Struts
2-inch seamless extruded tube.
46mm digressive piston.
Digressive valving.
46mm digressive piston.
Fast heat dissipation.
Fade-free performance
Natural rubber bushings.
Zinc plated aluminum body.
3-year Manufacturer's Warranty.

Optional Vertex Coilovers
8-Stage Adjustable Damping.
Monotube Design.
Nitrogen-charged.
Massive 2.5in Piston.
22mm Chrome-Hardened Piston Rod.
3-Stage Seal System.
Heat-Treated, Alloy Bearing.
Honed Steel Body.
3-year Manufacturer's Warranty.



Notes:
Retain your factory wheels by using our 0.25-inch wheel spacers SKU: 1065.
Does NOT fit regular/standard cab models.
Does NOT models equipped with CCD system.
SKU: 41430 does NOT work on models with stock ride height over 22in. [measured from center of wheel to the bottom of the fender]
Spacer kit '41430' does NOT fit on trucks with FX4, Snow Prep, and other off-road packages that modify front strut assemblies will likely measure over 22in and will not work with this kit.


Install Time:
5-6 hours

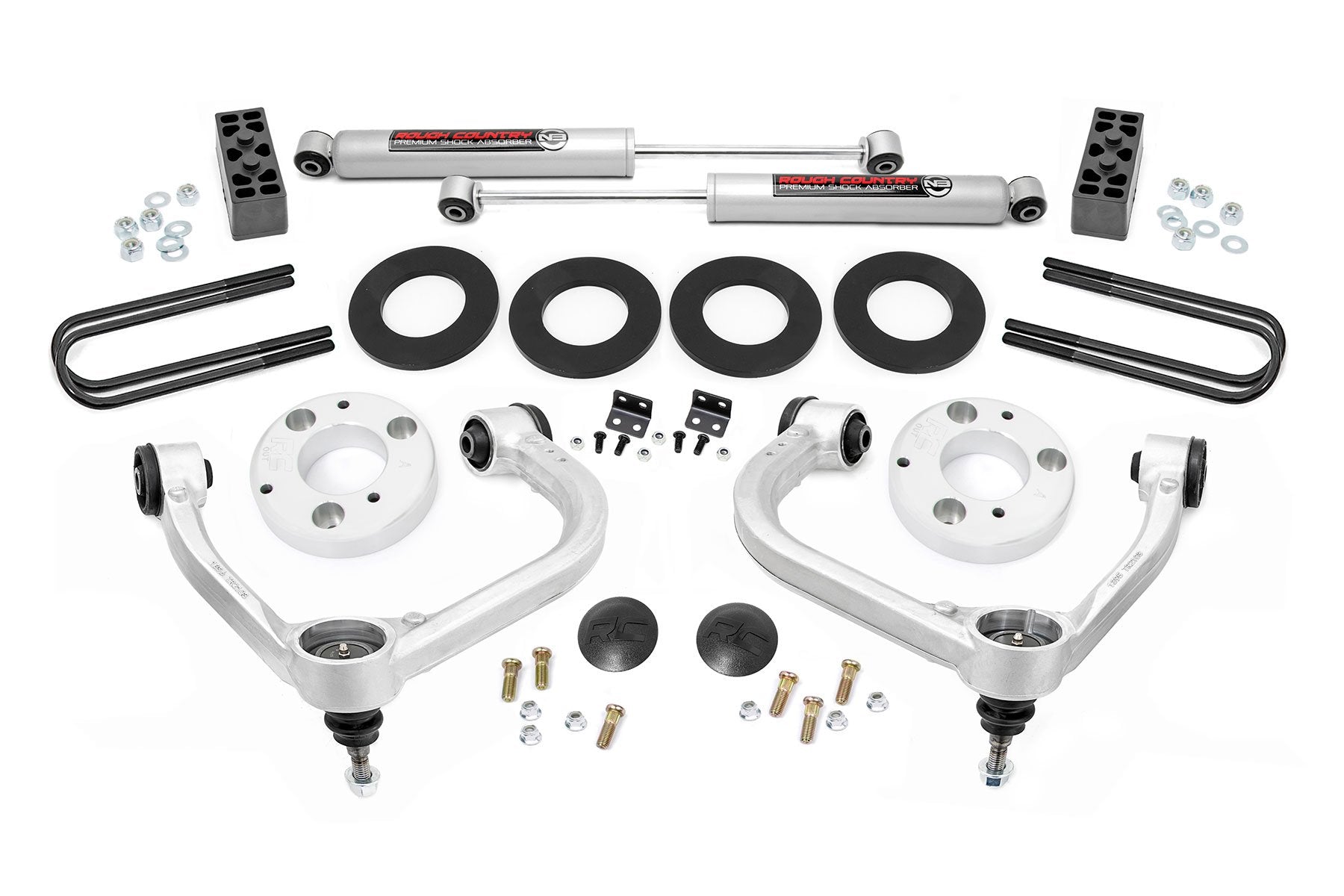

Front Components:
(2) Upper control arms (2) Strut spacers

Rear Components:
(2) Lift Blocks (4) U-bolts Hardware

Fitment:
2023-2023 4WD Ford F-150

Tire Info:
295/70R18 18x9 6x135 +18 -
275/65R20 Factory 20 6x135 - 0.25" Spacer
305/55R20 20x9 6x135 -12 -
305/55R20 20x9 6x135 +0 -
305/55R20 20x9 6x135 +1 -
295/60R20 20x9 6x135 +18 -
295/60R20 20x9 6x135 +20 -
305/55R20 20x10 6x135 -25 -
305/55R20 20x10 6x135 -24 -
305/55R20 20x10 6x135 -19 -
305/55R20 20x10 6x135 -18 -
305/55R22 22x10 6x135 -25 -
305/55R22 22x10 6x135 -24 -
305/55R22 22x10 6x135 -19 -
305/55R22 22x10 6x135 -18 -
