Rough Country 3.5"GM Suspension Lift Kit /Upper Arms|Vertex V2 Shocks 07-16 1500
Rough Country 3.5"GM Suspension Lift Kit /Upper Arms|Vertex V2 Shocks 07-16 1500
SKU:RC19457
Regular price
$1,959.95 USD
Regular price
Sale price
$1,959.95 USD
Unit price
/
per
Shipping calculated at checkout.
Rough Country 3.5 Inch Lift Kit | Forged UCA | Vertex/V2 | Chevy/GMC 1500 (07-16)
Description:
This all-inclusive kit comes with several fantastic features - all at a price that'll leave plenty of room for new tires and wheels! This kit includes Rough Country's premium Vertex adjustable shocks!This kit also features upgraded ball joints that are easy to install and maintenance free. These POM ball joints offer a greater range of motion for more wheel articulation than standard or OE replacements and feature a Polyoxymethylene ball race with an extremely low coefficient of friction for longer life, and a larger ball diameter to improve range of motion with a maintenance free design. Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment. This kit also includes Rough Country's Performance Vertex coilovers for improved tire contact with the road and increased stability and performance.These struts are engineered to fit perfectly on each intended application, and feature a pre-installed coil spring for easy installation without the need for strut disassembly. Simply remove your factory strut and replace with this easy, convenient system. The result is an increased ride height that mimics the factory responsiveness and handling of the OE strut.
Features:
Easy bolt-on installation.
Fits models with factory cast steel or aluminum control arms
Includes pre-loaded coil for no-fuss assembly
Increased ground clearance.
Can be returned to stock!
Differential drops maintain proper axle angle.
Differential drops are made from CNC machined 6061 billet aluminum.
Ball joints are made by MOOG, the most trusted name in ball joint design.
Ball joints are pre-installed to ease installation.
Fabricated lift blocks are stronger and offer a longer lifespan than cast blocks.
Features application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Notes:
Requires minor cutting and grinding
New lift block replaces the factory equipped block.
If truck is equipped with a mass damper on the front differential, the damper must be removed.
Does NOT fit AWD models.
Does NOT fit 2007 "Classic" models.
Does NOT fit models with stock Stamped Steel control arms.
Retain your factory wheels with our 0.25" wheel spacers (#1065).
Install Time:
4-5 hours

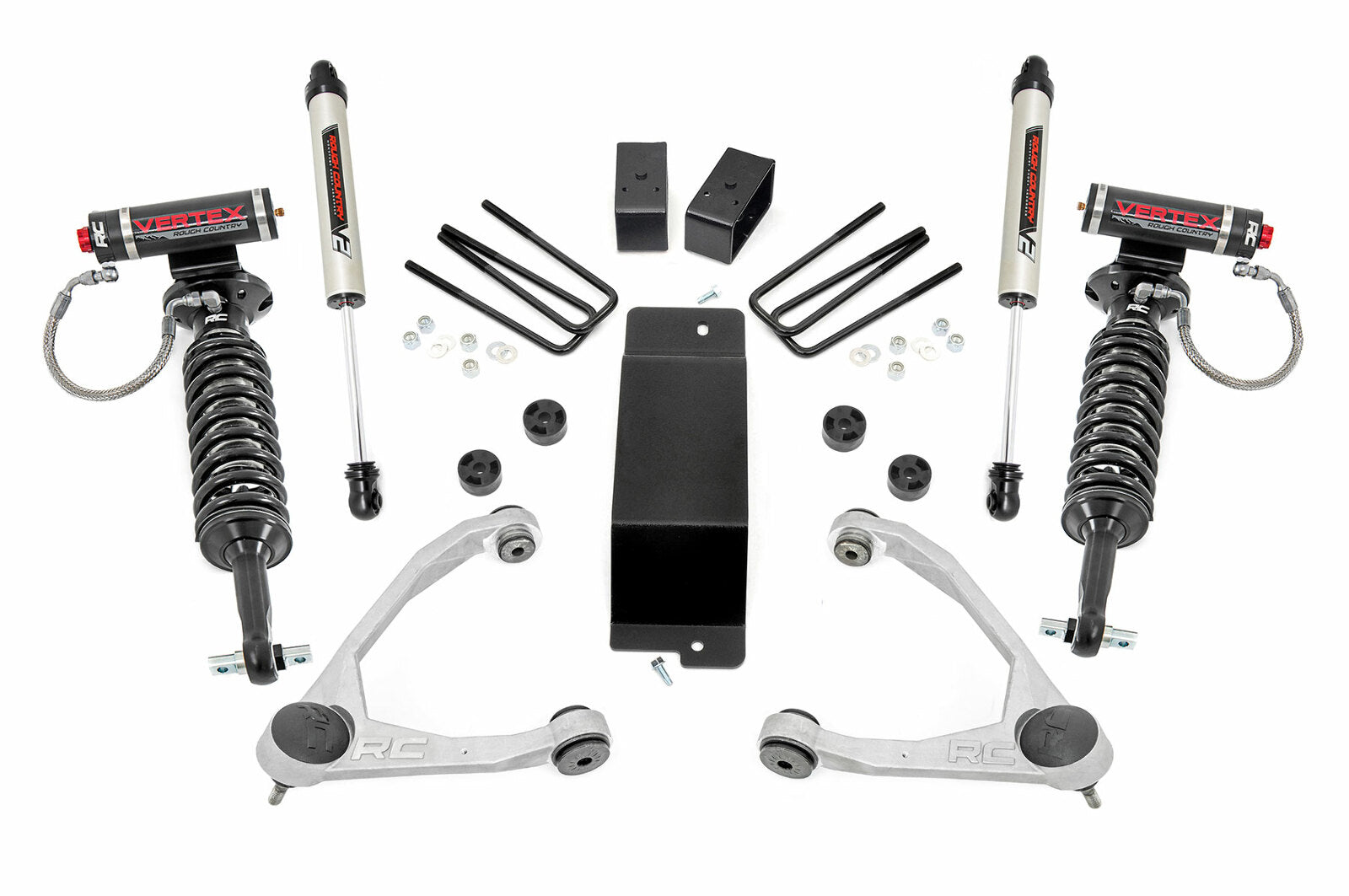

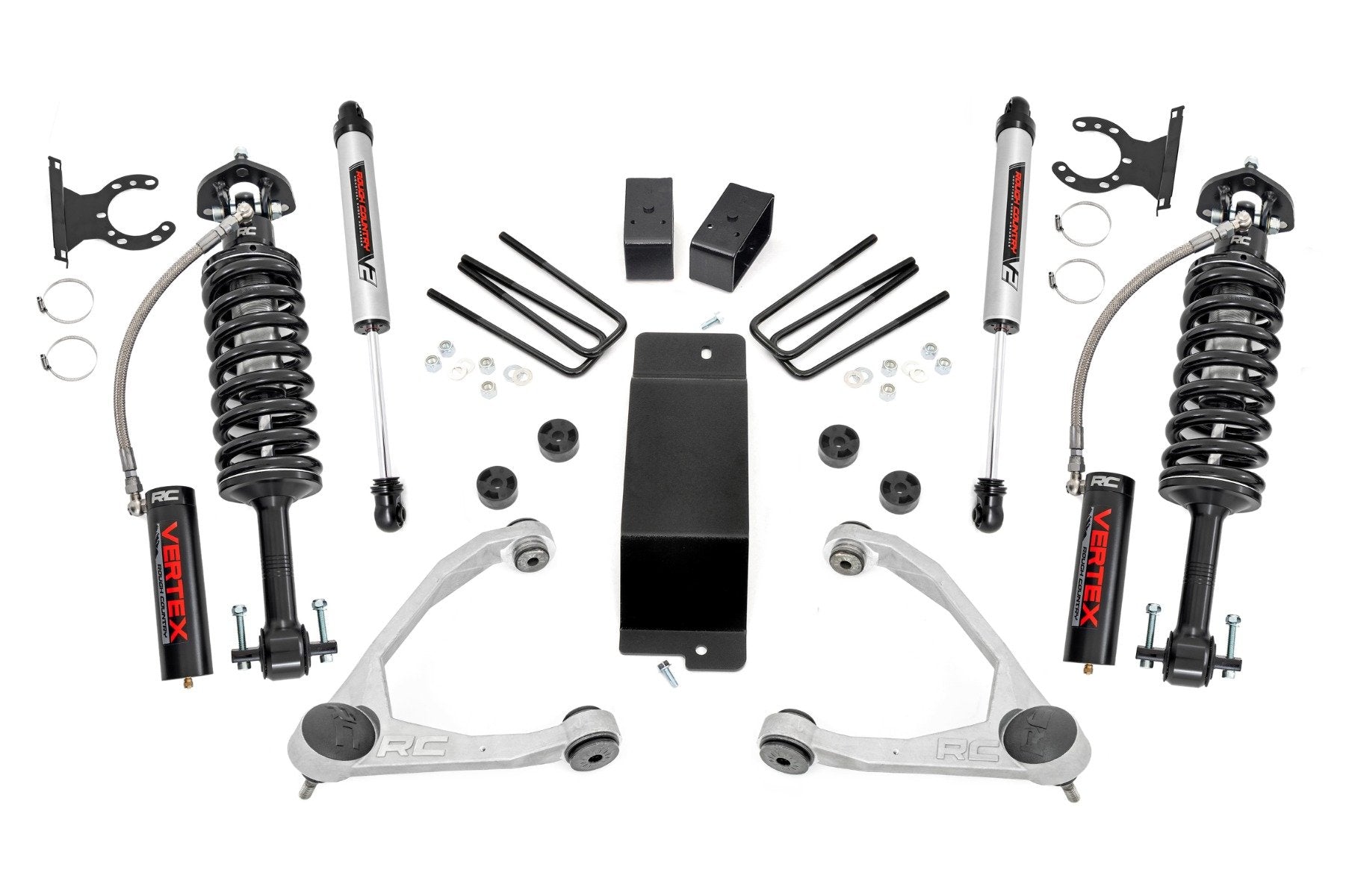

Front Components:
Vertex adjustable coilovers Forged upper control arms Upper MOOG ball joints Differential drop spacers Differential skid plate Hardware
Rear Components:
3in fabricated lift blocks U-bolts Hardware
Fitment:
2007-2016 4WD Chevy Silverado 1500
2007-2016 4WD GMC Sierra 1500
Tire Info:
285/70R17 Factory 17 6x5.5 - -
285/65R18 Factory 18 6x5.5 - -
285/55R20 Factory 20 6x5.5 - -
285/70R17 17x9 6x5.5 +0 -
285/70R17 17x9 6x5.5 +1 -
285/70R17 17x9 6x5.5 +12 -
285/70R17 17x9 6x5.5 +18 -
285/65R18 18x9 6x5.5 +0 -
285/65R18 18x9 6x5.5 +1 -
305/60R18 18x9 6x5.5 +18 -
285/65R18 18x9 6x5.5 +18 -
305/60R18 18x9 6x5.5 +19 -
285/65R18 18x9 6x5.5 +19 -
285/55R20 20x9 6x5.5 +0 -
285/55R20 20x9 6x5.5 +1 -
295/55R20 20x9 6x5.5 +18 -
285/55R20 20x9 6x5.5 +18 -
295/55R20 20x9 6x5.5 +19 -
285/55R20 20x9 6x5.5 +19 -
Description:
This all-inclusive kit comes with several fantastic features - all at a price that'll leave plenty of room for new tires and wheels! This kit includes Rough Country's premium Vertex adjustable shocks!This kit also features upgraded ball joints that are easy to install and maintenance free. These POM ball joints offer a greater range of motion for more wheel articulation than standard or OE replacements and feature a Polyoxymethylene ball race with an extremely low coefficient of friction for longer life, and a larger ball diameter to improve range of motion with a maintenance free design. Also included in this kit are a set of fabricated rear blocks. Fabricated blocks are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment. This kit also includes Rough Country's Performance Vertex coilovers for improved tire contact with the road and increased stability and performance.These struts are engineered to fit perfectly on each intended application, and feature a pre-installed coil spring for easy installation without the need for strut disassembly. Simply remove your factory strut and replace with this easy, convenient system. The result is an increased ride height that mimics the factory responsiveness and handling of the OE strut.
Features:
Easy bolt-on installation.
Fits models with factory cast steel or aluminum control arms
Includes pre-loaded coil for no-fuss assembly
Increased ground clearance.
Can be returned to stock!
Differential drops maintain proper axle angle.
Differential drops are made from CNC machined 6061 billet aluminum.
Ball joints are made by MOOG, the most trusted name in ball joint design.
Ball joints are pre-installed to ease installation.
Fabricated lift blocks are stronger and offer a longer lifespan than cast blocks.
Features application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Notes:
Requires minor cutting and grinding
New lift block replaces the factory equipped block.
If truck is equipped with a mass damper on the front differential, the damper must be removed.
Does NOT fit AWD models.
Does NOT fit 2007 "Classic" models.
Does NOT fit models with stock Stamped Steel control arms.
Retain your factory wheels with our 0.25" wheel spacers (#1065).
Install Time:
4-5 hours
Front Components:
Vertex adjustable coilovers Forged upper control arms Upper MOOG ball joints Differential drop spacers Differential skid plate Hardware
Rear Components:
3in fabricated lift blocks U-bolts Hardware
Fitment:
2007-2016 4WD Chevy Silverado 1500
2007-2016 4WD GMC Sierra 1500
Tire Info:
285/70R17 Factory 17 6x5.5 - -
285/65R18 Factory 18 6x5.5 - -
285/55R20 Factory 20 6x5.5 - -
285/70R17 17x9 6x5.5 +0 -
285/70R17 17x9 6x5.5 +1 -
285/70R17 17x9 6x5.5 +12 -
285/70R17 17x9 6x5.5 +18 -
285/65R18 18x9 6x5.5 +0 -
285/65R18 18x9 6x5.5 +1 -
305/60R18 18x9 6x5.5 +18 -
285/65R18 18x9 6x5.5 +18 -
305/60R18 18x9 6x5.5 +19 -
285/65R18 18x9 6x5.5 +19 -
285/55R20 20x9 6x5.5 +0 -
285/55R20 20x9 6x5.5 +1 -
295/55R20 20x9 6x5.5 +18 -
285/55R20 20x9 6x5.5 +18 -
295/55R20 20x9 6x5.5 +19 -
285/55R20 20x9 6x5.5 +19 -
Want to customize this kit? Send us a message!
