Rough Country 3.5" Lift Kit Cast Steel LCA M1 Strut Chevy/GMC 1500 07-13 11940
Rough Country 3.5" Lift Kit Cast Steel LCA M1 Strut Chevy/GMC 1500 07-13 11940
SKU:RC11940
Regular price
$1,059.95 USD
Regular price
Sale price
$1,059.95 USD
Unit price
/
per
Shipping calculated at checkout.
Rough Country 3.5 Inch Lift Kit | Cast Steel LCA | M1 Strut | Chevy/GMC 1500 (07-13)
Description:
If you're looking for not-too-tall and not-too-small, Rough Country's 3.5 ?? Lifted Knuckle kit is the perfect option for increased ground clearance and aggressive good looks! This all-inclusive kit features everything you need for a stunning, new appearance and enhanced off-road action, with a host of features designed to promote an incredible suspension geometry and ride quality!

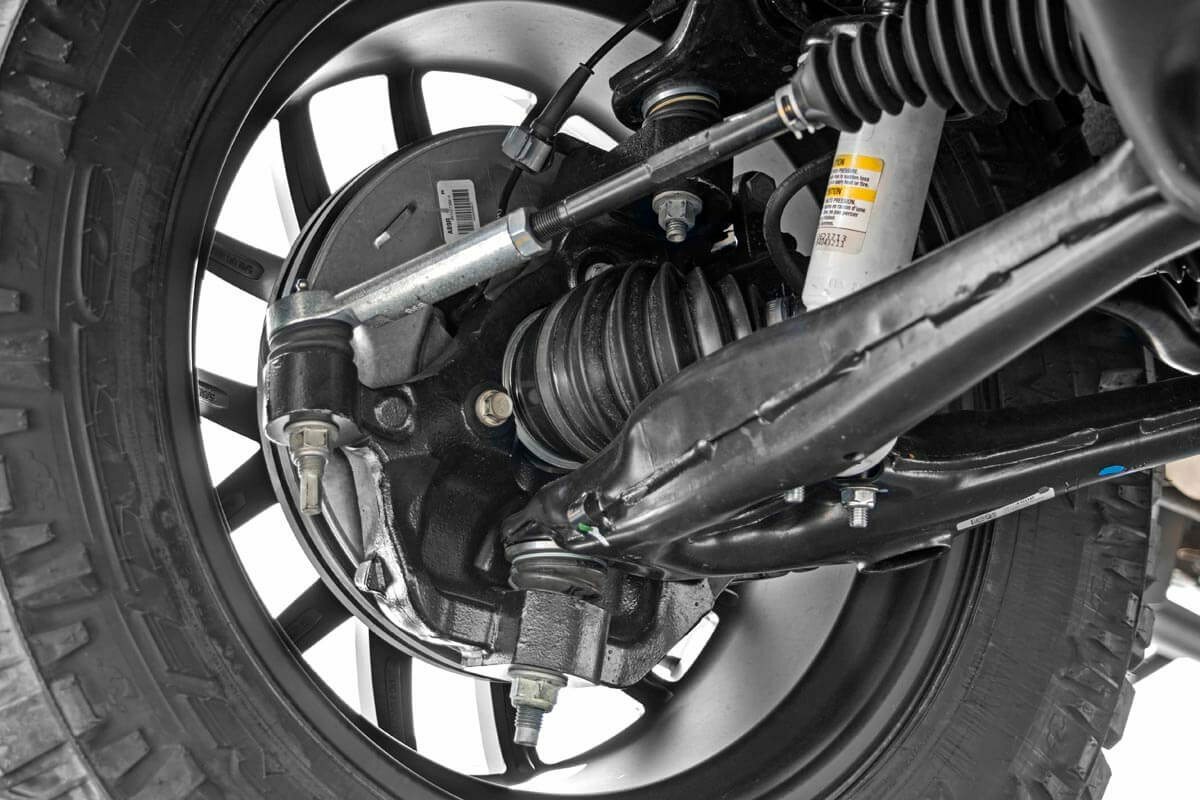

Rough Country's 3.5-inch kit features a set of lifted knuckles allowing you to lift your vehicle in the best possible way. Other kits only replace your upper control arms which can leave your CV boot prone to damage by making contact with the lower arms. Rough Country's innovative, lifted knuckle design gives you plenty of clearance to keep your CV out of harm's way while promoting a better upper arm ball joint angle and better ride quality to boot.

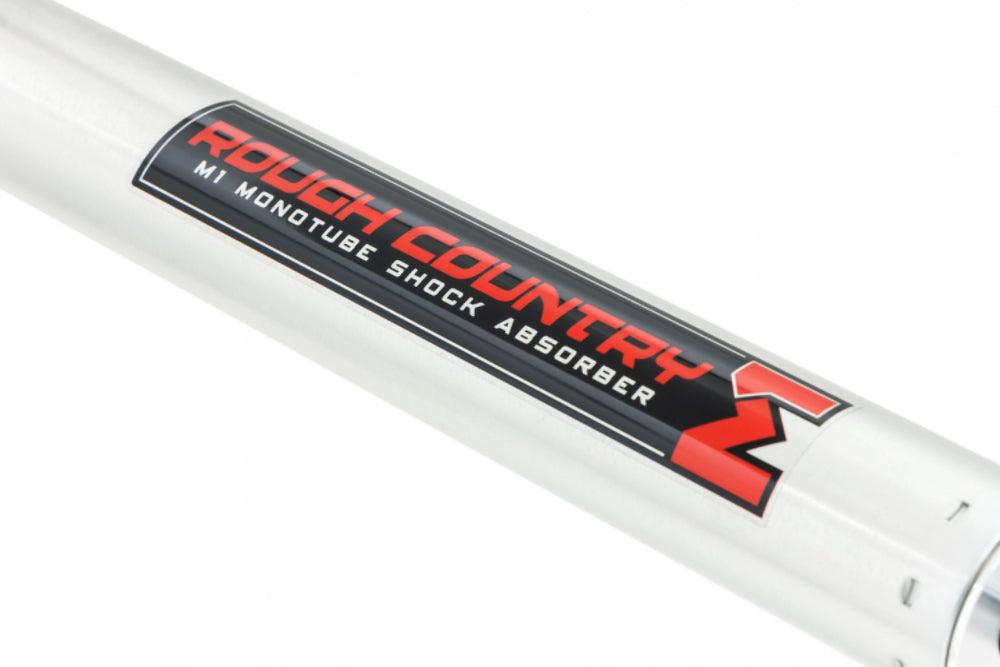

This kit includes Rough Country's premium M1 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. Also included in this kit are a set of fabricated rear blocks that are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment.Includes a Lifetime Replacement Guarantee!
Features:
Increased ground clearance.
Increased CV axle boot clearance with the stamped steel lower control arm.
Retains factory suspension components
Levels front with rear
Fabricated lift blocks are stronger and offer a longer lifespan than cast blocks.
Features application valved M1 series shock absorbers which offer the best in balanced performance for on and off-road use.
Notes:
Requires cutting and grinding
If using factory wheels, a 0.25in wheel spacer is required. #1065
Does NOT work with aftermarket control arms
Does NOT fit models with aluminum or stamped Steel control arms.
Does NOT fit GMC Denali models with Magnetic Ride Control.
New lift block replaces the factory equipped block.
If truck is equipped with a mass damper on the front differential, the damper must be removed.
Install Time:
4-5 hours

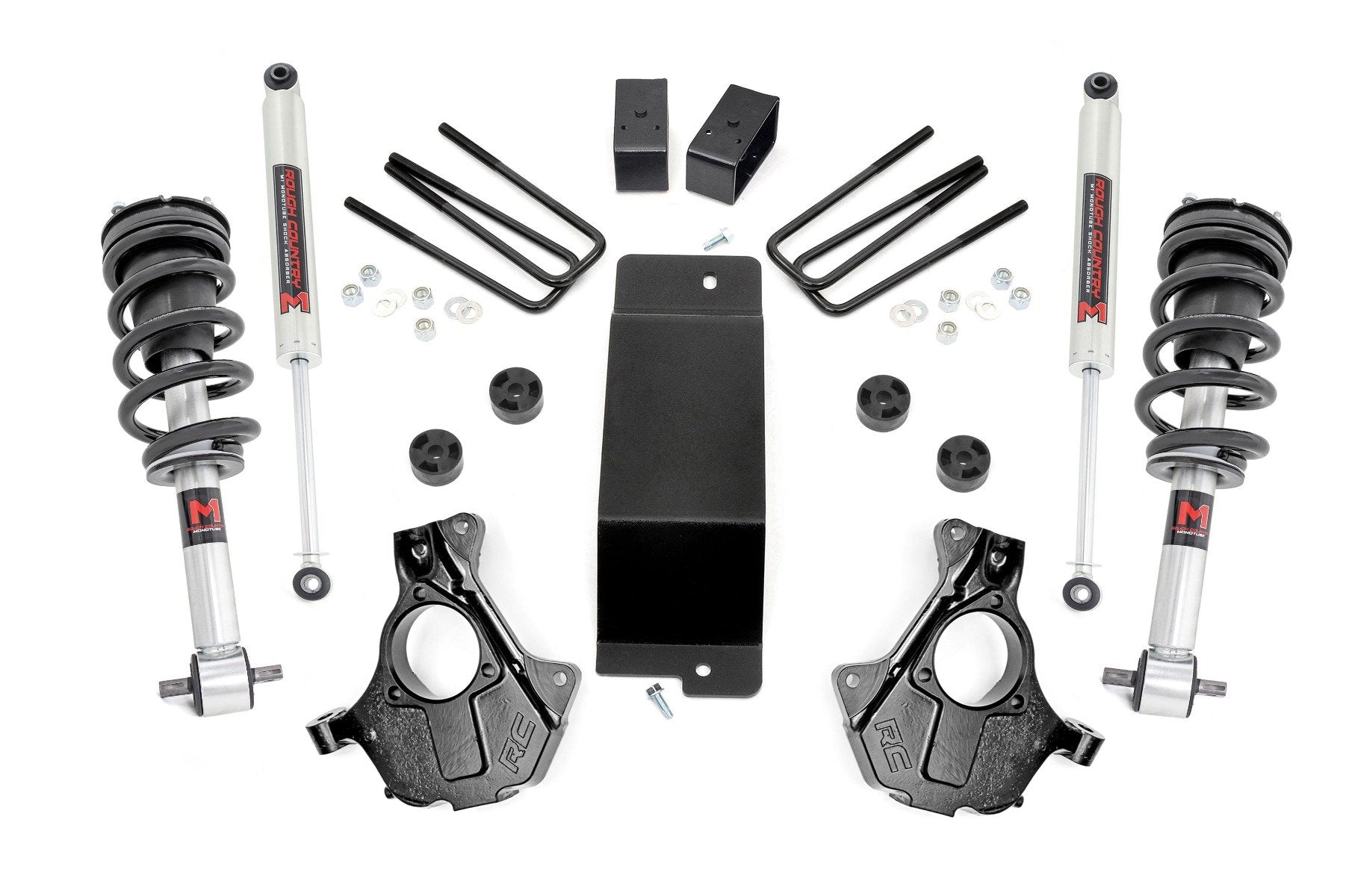

Front Components:
(2) M1 Monotube Struts Lifted knuckles Differential drop spacers Differential skid plate Hardware
Rear Components:
3in fabricated lift blocks U-bolts Hardware
Fitment:
2007-2013 4WD Chevy Silverado 1500
2007-2013 4WD GMC Sierra 1500
Tire Info:
285/70R17 Factory 17 6x5.5 - -
285/65R18 Factory 18 6x5.5 - -
285/55R20 Factory 20 6x5.5 - -
285/70R17 17x9 6x5.5 +0 -
285/70R17 17x9 6x5.5 +1 -
285/70R17 17x9 6x5.5 +12 -
285/70R17 17x9 6x5.5 +18 -
285/65R18 18x9 6x5.5 +0 -
285/65R18 18x9 6x5.5 +1 -
285/65R18 18x9 6x5.5 +12 -
285/65R18 18x9 6x5.5 +18 -
285/55R20 20x9 6x5.5 +0 -
285/55R20 20x9 6x5.5 +1 -
285/55R20 20x9 6x5.5 +12 -
285/55R20 20x9 6x5.5 +18 -
Description:
If you're looking for not-too-tall and not-too-small, Rough Country's 3.5 ?? Lifted Knuckle kit is the perfect option for increased ground clearance and aggressive good looks! This all-inclusive kit features everything you need for a stunning, new appearance and enhanced off-road action, with a host of features designed to promote an incredible suspension geometry and ride quality!
Rough Country's 3.5-inch kit features a set of lifted knuckles allowing you to lift your vehicle in the best possible way. Other kits only replace your upper control arms which can leave your CV boot prone to damage by making contact with the lower arms. Rough Country's innovative, lifted knuckle design gives you plenty of clearance to keep your CV out of harm's way while promoting a better upper arm ball joint angle and better ride quality to boot.
This kit includes Rough Country's premium M1 shocks! These 10-stage variable valving, high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. Also included in this kit are a set of fabricated rear blocks that are stronger and offer a longer lifespan than cast blocks while being less susceptible to damage and the environment.Includes a Lifetime Replacement Guarantee!
Features:
Increased ground clearance.
Increased CV axle boot clearance with the stamped steel lower control arm.
Retains factory suspension components
Levels front with rear
Fabricated lift blocks are stronger and offer a longer lifespan than cast blocks.
Features application valved M1 series shock absorbers which offer the best in balanced performance for on and off-road use.
Notes:
Requires cutting and grinding
If using factory wheels, a 0.25in wheel spacer is required. #1065
Does NOT work with aftermarket control arms
Does NOT fit models with aluminum or stamped Steel control arms.
Does NOT fit GMC Denali models with Magnetic Ride Control.
New lift block replaces the factory equipped block.
If truck is equipped with a mass damper on the front differential, the damper must be removed.
Install Time:
4-5 hours
Front Components:
(2) M1 Monotube Struts Lifted knuckles Differential drop spacers Differential skid plate Hardware
Rear Components:
3in fabricated lift blocks U-bolts Hardware
Fitment:
2007-2013 4WD Chevy Silverado 1500
2007-2013 4WD GMC Sierra 1500
Tire Info:
285/70R17 Factory 17 6x5.5 - -
285/65R18 Factory 18 6x5.5 - -
285/55R20 Factory 20 6x5.5 - -
285/70R17 17x9 6x5.5 +0 -
285/70R17 17x9 6x5.5 +1 -
285/70R17 17x9 6x5.5 +12 -
285/70R17 17x9 6x5.5 +18 -
285/65R18 18x9 6x5.5 +0 -
285/65R18 18x9 6x5.5 +1 -
285/65R18 18x9 6x5.5 +12 -
285/65R18 18x9 6x5.5 +18 -
285/55R20 20x9 6x5.5 +0 -
285/55R20 20x9 6x5.5 +1 -
285/55R20 20x9 6x5.5 +12 -
285/55R20 20x9 6x5.5 +18 -
