Rough Country 3.5" Knuckle Lift Kit M1 Chevy/GMC 2500HD/3500HD 11-19 95740

Rough Country 3.5 Inch Knuckle Lift Kit | M1 | Chevy/GMC 2500HD/3500HD (11-19)

Description:

Improved Ground Clearance and Ride Quality. Take your workhorse to the next level with Rough Country's 3.5" Knuckle Lift kit. Rough Country's 3.5" Knuckle Kit provides an improved ground clearance and is designed for on or off-road driving. This suspension offers Rough Country's full lineup of shocks ranging from our N3 series to Vertex adjustable coil-overs.

Innovative Design and Construction. This suspension kit combines the use of durable steel knuckles and forged upper control arms to reduce cv angles. Featuring a set of forged torsion bar keys that offer uncompromised strength and rigidity gaining lift height is no issue. Utilizing our forged upper control arms and differential drop spacers this kit allows you to retain factory-like geometry and provides enough clearance to run 33" tires with appropriate wheel backspacing.

Installation. With a no-cut or drilling, design installation couldn't be easier. With an estimated timeframe of 4-6 hours this full kit can be installed at home using standard tools and can be completed efficiently and quickly!

Lifetime Replacement Warranty. Rough Country's 3.5" Knuckle Kit is backed with a lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty give yourself peace of mind when using Rough Country's Suspension products!

Features:
Easy bolt-on installation.
No cutting, drilling or welding.
Increased ground clearance.
Levels the front with the rear of the vehicle.
Torsion bar keys are forged for uncompromised strength.
Keys are indexed to not stress OE components.
Knuckles help to reduce possible CV bind.
Upper control arms help maintain factory-like geometry while keeping a full range of motion.
Upper control arms feature OEM style Clevite rubber bushings.

Optional N3 Loaded Struts
Includes pre-loaded coil
Maintains smooth, factory-like ride
Increased ground clearance
Engineered for lifted applications
Infinitely Variable Damping
Leak-proof piston seal
Massive 1 3/8in Bore
Silver powder coat finish
3-year Manufacturer's Warranty
Optional V2 Monotube Shocks
Monotube design
Internal floating piston
Nitrogen-charged
46mm high-flow piston
Fast heat dissipation
36kN Tensile Strength
Mounts inverted
T6061 brushed aluminum body
3-year Manufacturer's Warranty

Optional Vertex
8-Stage Adjustable Damping
Monotube Design
Nitrogen-charged
Massive 2.5in Piston
22mm Chrome-Hardened Piston Rod
3-Stage Seal System
Heat-Treated, Alloy Bearing
Honed Steel Body
3-year Manufacturer's Warranty


Notes:
Does NOT fit models with rear overload springs.
Does NOT fit models with Magnetic Ride Control.
Does NOT fit Dually models.

Install Time:
5-6 hours

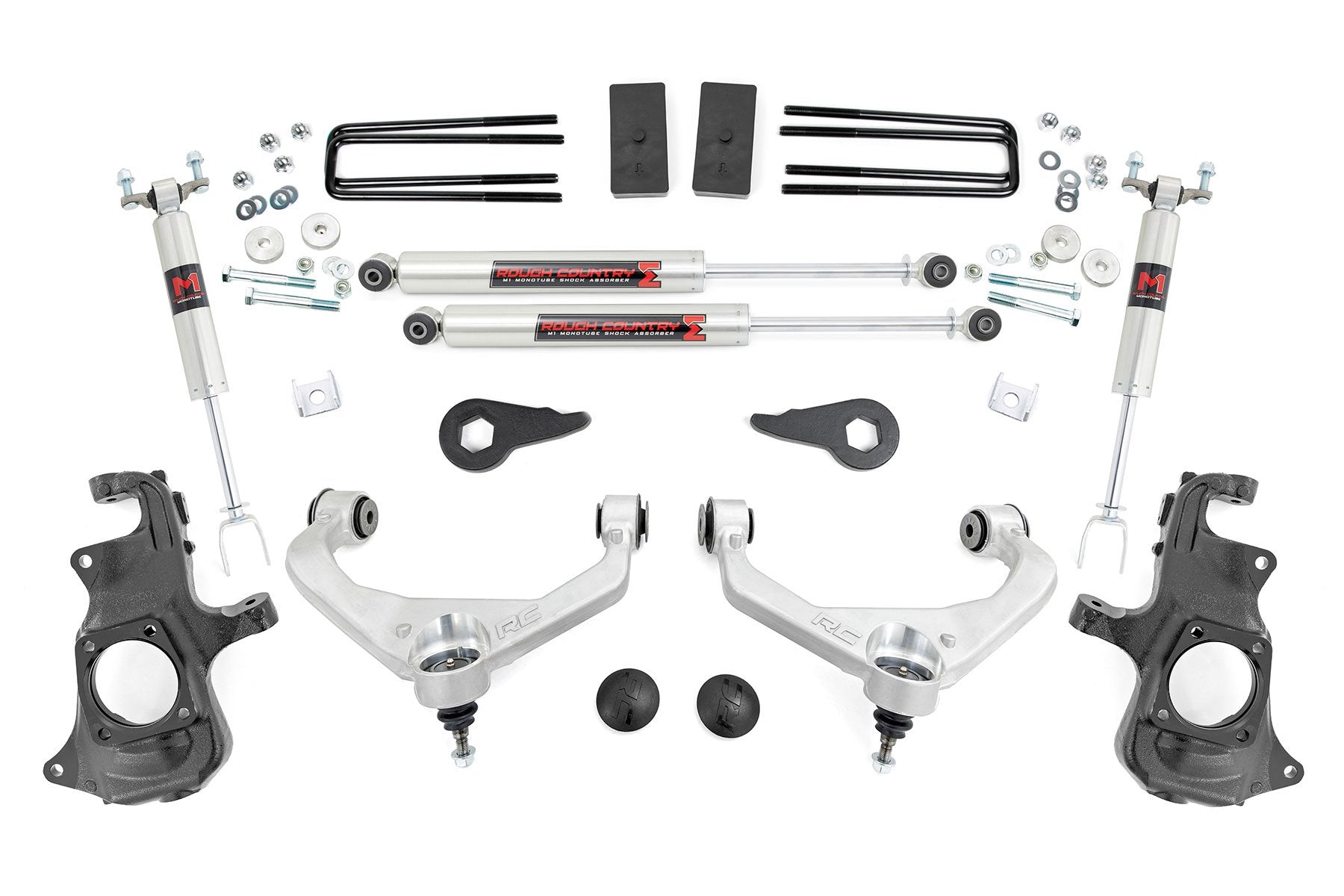

Front Components:
Forged Torsion Bar Keys Upper control arms Lifted Knuckles Differential Spacers

Rear Components:
Lift Blocks U-bolts Hardware

Fitment:
2011-2019 2WD Chevy Silverado 2500 HD
2011-2019 4WD Chevy Silverado 2500 HD
2011-2019 2WD Chevy Silverado 3500 HD
2011-2019 4WD Chevy Silverado 3500 HD
2011-2019 2WD GMC Sierra 2500 HD
2011-2019 4WD GMC Sierra 2500 HD
2011-2019 2WD GMC Sierra 3500 HD
2011-2019 4WD GMC Sierra 3500 HD

Tire Info:
295/70R20 Factory18 8x6.5/8x165.1 - -
295/60R20 Factory20 8x6.5/8x165.1 - -
33x12.50R18 18x9 8x6.5/8x165.1 +0 -
33x12.50R18 18x9 8x6.5/8x165.1 +1 -
33x12.50R18 18x9 8x6.5/8x165.1 +18 -
33x12.50R18 18x9 8x6.5/8x165.1 +20 -
305/55R20 20x9 8x6.5/8x165.1 +0 -
305/55R20 20x9 8x6.5/8x165.1 +1 -
305/55R20 20x9 8x6.5/8x165.1 +18 -
305/55R20 20x9 8x6.5/8x165.1 +20 -
