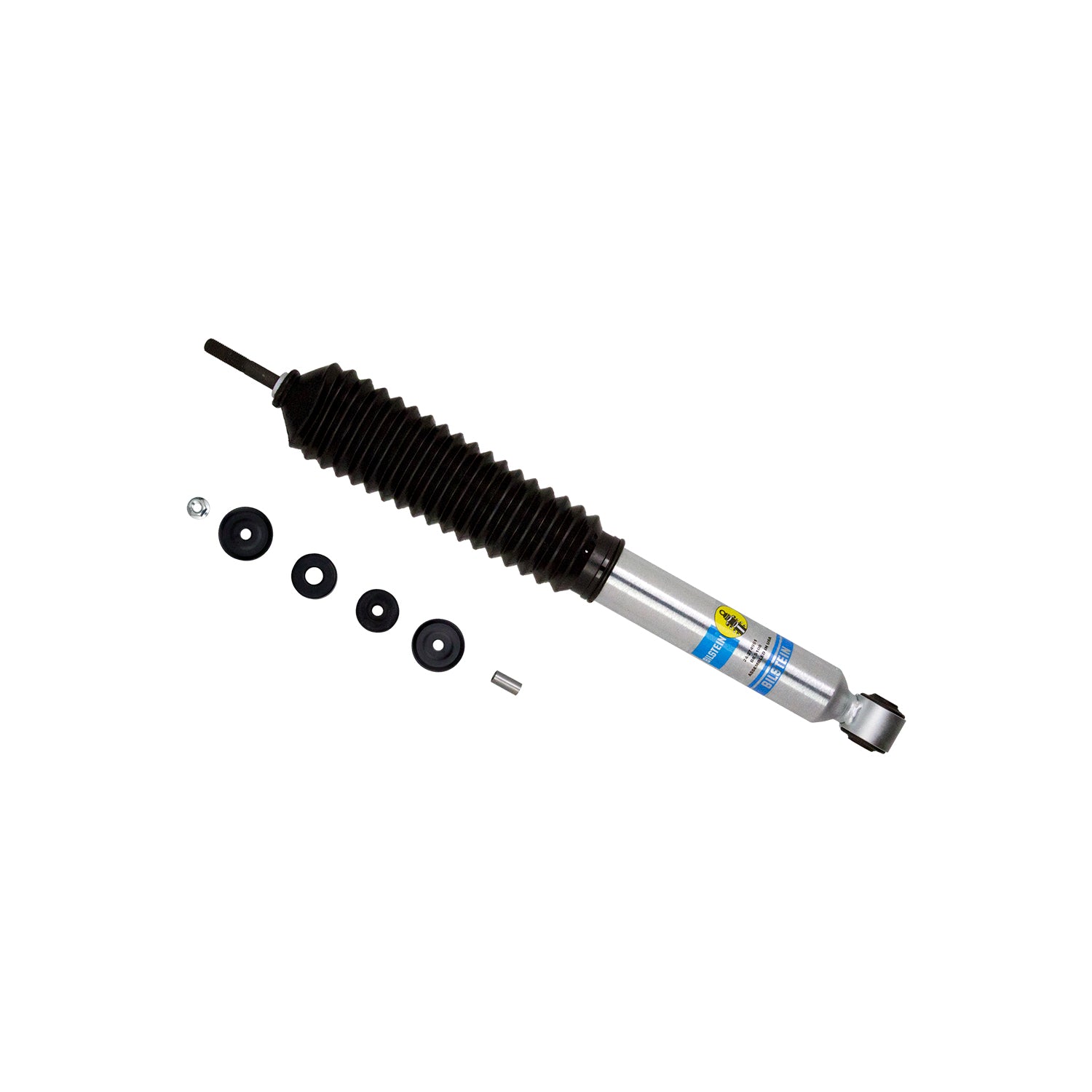

FRONT SHOCK ABSORBER B8 5100 FORD F-250 SUPER DUTY 17-19, F-350 SUPER DUTY 17-19

Collapsed Length (in): 13.46

Extended Length (in): 21.20

Collapsed Length (mm): 342.0

Extended Length (mm): 538.5

Stroke/travel Length (in): 7.76

Lower Mount Type: Eye 14.4mm

Upper Mount Type: Stem

Internal Design: Monotube

Finish: Zinc Plated

Reservoir: No

Body Design: Smooth Body (Non-Coilover)

Body Diameter (od): 2.0 in.

Piston Diameter: 46mm

Boot Included: Black Bellows

Replacement Mounting Kit: B4-KT1-Z223A02

Spring Seat Included: No

Shaft Diameter: 14mm

Adjustable Damping: Non-Adjustable

Product Description

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
