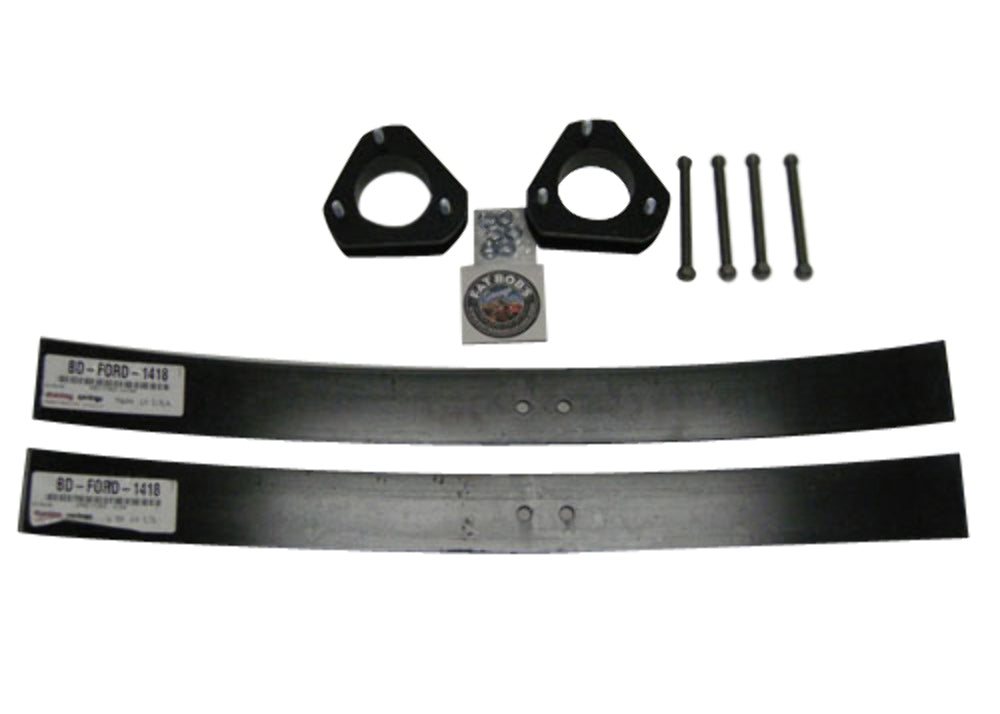

    Ford F150 3" Front 2" Rear Lift Kit 2004-2016

    Ford F150 3" Front 2" Rear Lift Kit 2004-2016

    22300-AAL22-4WDUB

    $331.95 USD
    $331.95 USD
    Sale Sold out
    Taxes included. Shipping calculated at checkout.

    Ford F150 3" Front Steel Spacer Lift Level Kit 4WD 2004-2008

    • 1/4" Hot P.O. Steel Plate is precision CNC LASER cut.
    • Heavy Wall Tubing for a superior load bearing member to ensure maximum stability.
      Note:  The spacers measure 1.75" and provide 3" of lift. (NOT a 1:1 ratio)
    • Pressed In Studs, where others use welded bolts that lose strength when welded.
    • Pulsed Welding produces an aerospace grade weld that is of a much higher quality than the short arc weld found on similar products.
    • Powder Coating that has been specially formulated for this product application.  Paint just won't cut it!
    • OEM Flange Lock Nuts are included with every kit to ensure a proper torque specifications can be met on install.
    • Illustrated Instructions are included with every kit to help with a quick and easy install.
    • Allows for up to 33" tires to fit on 2WD models. Allows for up to 35" tires to fit on 4WD models.  **Up to 33" tires on 2009+ models.
    • This kit will retain factory ride quality. Stock shocks can be used.  No additional modification to the truck is necessary.
    • LIFETIME WARRANTY.  Made in the USA.
    • NO Spring Compressor Required.  Easily bolts on to stock strut mounts.  A floor jack, two jack stands, and normal shop tools are all you need for installation.
    • Installs in 30 - 90 minutes!
    • We install, develop, and test these kits and have full time tech support available if needed.
    • Give us a call with any questions at (801) 395-2134!
    Optional Rear Blocks:
    • Aluminum Blocks measuring 3" tall to replace the factory 2" blocks to give 1" of lift for 4WD 2004-2008 Ford F150's, 1.25" of lift for 4WD 2009-2015 Ford F150's.  1" Block adds 1" of lift to 2WD 2004-2015 F150's.
    • U-Bolts are included.
    • Illustrated Instructions are included with every kit to help with a quick and easy install.
    • This kit will retain factory ride quality. Stock shocks can be used.  No additional modification to the truck is necessary.
    • LIFETIME WARRANTY.
    • A floor jack, two jack stands, and normal shop tools are all you need for installation.
    • Installs in 30 minutes!
    Optional Rear Add-A-Leaf:

    This add-a-leaf spring lift kit for the Ford F150 will raise the rear of your truck by an average of 2" (actual lift height depends on the condition of your current leaf pack).  This kit provides rear end support and increased capacity for towing or hauling.  This is a great option for trucks with a leveling kit installed on the front end that suffer from rear end sagging during towing or hauling.

    The add-a-leaf springs are 3" wide by 34" long.  This add-a-leaf spring kit does not require the removal of the spring clips, making the installation much easier than the longer add-a-leafs.

    Vehicle Application:
    2004-2008 Ford F150 4WD

    Installation Instructions - PDF Download

    Stone Green 2008 Ford F150 photos courtesy of Westland Ford, Ogden, UT.  (Stock Tires & Wheels)
    Grey 2007 Ford F150 photos courtesy of Westland Ford, Ogden, UT.  (325/60 R18 Toyo Open Country Tires)
    Dark Grey Ford F150 photos courtesy of K. Boyle of Carlsbad, CA. (Mickey Thompson Baja ATZ 325/50/20 Tires; Foose Speedster Wheels 9.5x20)
