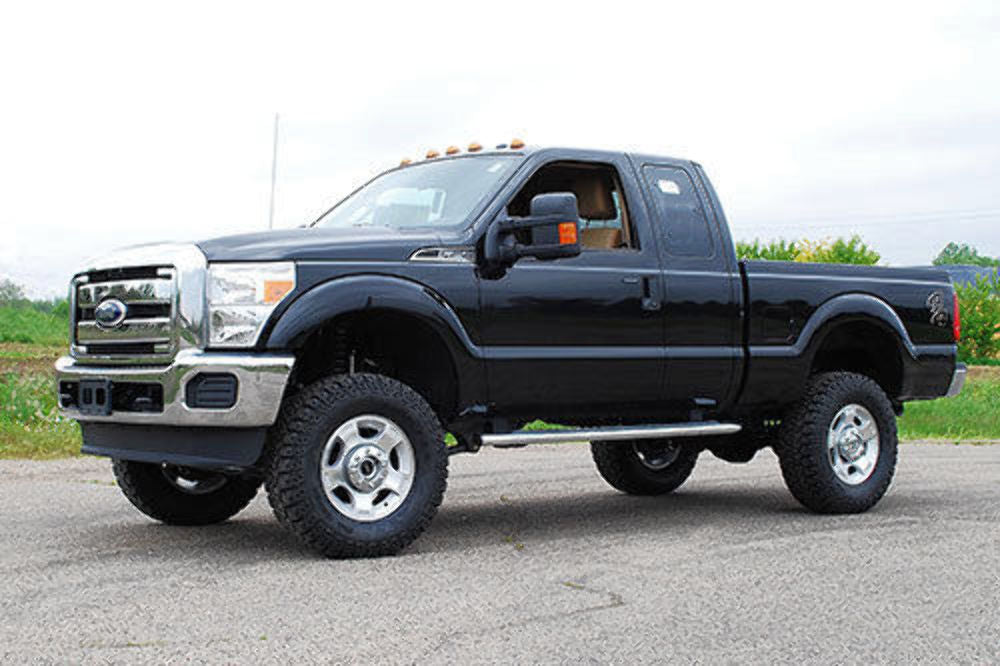

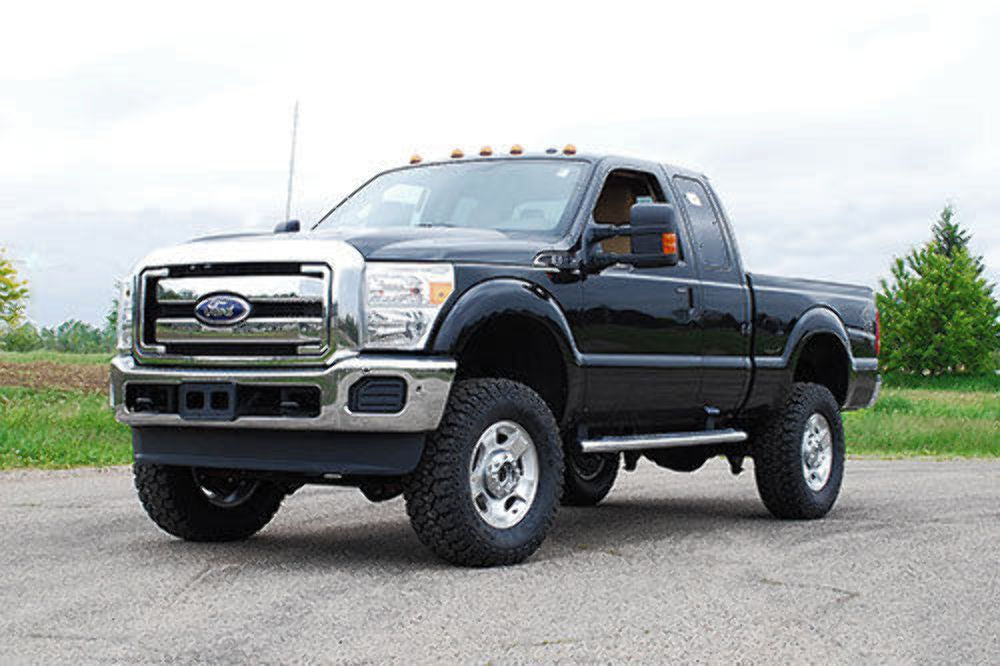

for Ford F250 F350 Super Duty 4" Lift Kit 2011-2016 4wd Diesel

Description:

The revolutionary new Zone 4" system features new front coil springs that are designed to not only ride great, but will hold up over the long haul.  A 1-1/2" solid steel track bar is included to properly center the axle after lifting.  This track bar features new oversized, high-durometer urethane bushings for long term performance.  The shocks were custom valved to work perfectly with the new Zone coil springs to increase off road performance while still offering unmatched on road ride quality.  The rear kit comes with 5" blocks to replace your factory blocks so there is not stacking of blocks when you are in the Zone.  This reduces rear axle wrap compared to other similar systems on the market.  With the front replacement track bar and the rear block kit, this system is one of the easiest installations on the market for a 4" system.  (Shown with hydro shocks, includes new Nitro shocks in black finish.)

Max Tire Size:  35 x 12.50

Wheel Size:  17 and up

Backspacing:  4.5”

Vehicle Applications:

2011-2016 Ford F250 / F350 Super Duty 4wd Diesel

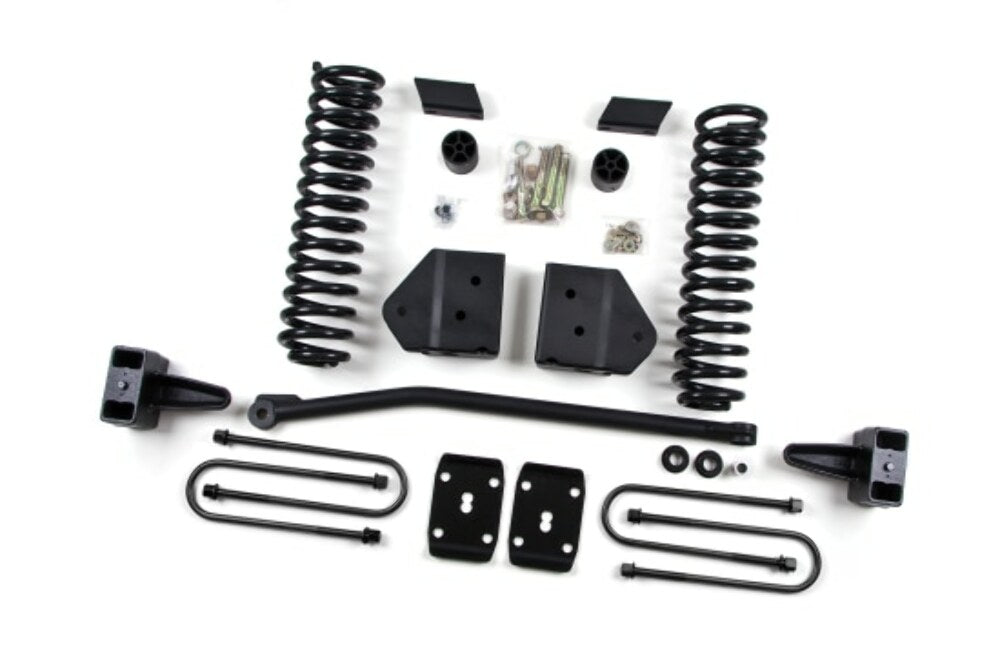

Kit Contents:

• New front coil springs capable of full coil bind offering off-road performance and great ride quality
• Radius arm drop brackets included to properly rotate the front axle
• 1-1/2" Solid steel track bar with urethane mounts to properly center the axle
• New rear U-bolts with high nuts & washers
• Rear 5" Block kit to eliminate the factory block - NO stacking blocks!
• Performance custom valved Zone Shocks included

Notes:

• Removal of the factory rear block is required. Net rear height gain will vary based on size of the factory block, but will result in a level stance.
• If equipped with a 2-piece rear drive shaft, then a driveshaft alignment kit may be required.
• Although extremely rare, front drive line vibration may occur.
