13-18 Ram 1500 w/Air Ride 4in System

13-18 Ram 1500 w/Air Ride 4in System

SKU:BDS1623H

Regular price $2,301.65 USD
Regular price Sale price $2,301.65 USD
Sale Sold out
Shipping calculated at checkout.

BDS steps up the performance and capability of the 2013-2018 RAM 1500 trucks, equipped with factory rear air ride, with a 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes top mounted air bag spacers, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. Also, new air lines and fittings are supplied to along with ride height sensor brackets to maintain propoer positioning and functionality of the factory air ride system at the new height.

The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

  • Front Lift Method: Cross-Member
  • Rear Lift Method: Spacer
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 2.5 inch

IMPORTANT Due to the complexity of your Rams factory air ride system we highly recommend using an experienced suspension specialist for installation. For help locating a specialist in your area please use our dealer locator or contact us. For information regarding the installation of this system and modifying your Ram's factory air-ride suspension check out our step by step instructions and the helpful tips video.

  1. The Rack and Pinion steering system is extremely sensitive to an out-of-round or out-of-balance Tire/wheel combination. As you increase the Tire diameter and/or decrease the wheel backspacing the more sensitive the system becomes and can cause minor steering wheel shimmy.
  2. It Fits factory air ride-equipped trucks only.
  3. The factory air ride is a closed-loop system. Opening the system more times than recommended in the lift instructions or factory service manual will require the system to be recharged. This can be done at any Ram dealer service department.
  4. Stock 20 inch wheels can be reinstalled with factory-sized Tires only. Stock 17 inch and 18 inch wheels will not fit.
  5. This kit will bolt on Eco-Diesel models but it will require an aftermarket front drive shaft.
  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
  • Factory Protection Plus drivetrain warranty included

Shock Option NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

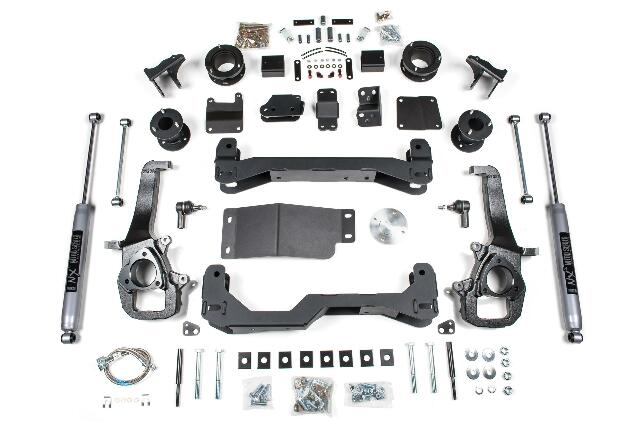

Kit Components:

  • Includes one BDS022259, Ram 1500 Rear Air Ride Box Kit, UPC Code 658848615322
  • Includes one BDS022403, Front Box Kit 3 of 4, UPC Code 658848615384
  • Includes one BDS022625, 2012 Dodge 1500 6 in Frnt Box Kit 4 of 4, UPC Code 658848615490
  • Includes one BDS022630, 2013 DODGE 1500 4WD FRONTBOXKIT (1 OF 4), UPC Code 658848615506
  • Includes one BDS022631, 2013 DODGE 4WD FRONTBOXKIT (2 OF 4), UPC Code 658848615513
  • Includes two BDS85719, Shock- 26.20 x 15.80 x 2-3/8 - EB1/EB1, UPC Code 711745609570

Want to customize this kit? Send us a message!
