Zone Offroad Dodge for RAM 5" Suspension Lift 2500/3500 4WD 2008 (D10)

Description:

Turn your Dodge in to the truck you've always wanted!  This 5" system from Zone features tubular upper and lower control arms to properly locate and rotate the front axle to ensure proper alignment.  These greasable arms ensure long term performance.  The dropped pitman arm combined with the heavy duty track bar bracket ensures factory steering geometry.  Whether on road or offroad this system is built to perform.  The kit also includes custom valved Zone shocks that have been tuned to the 5" coils thus ensuring not only performance, but great ride quality.  (Shown with hydro shocks, includes new Nitro shocks in black finish.)

Max Tire Size:  37 x 12.50

Wheel Size:  17 x 9

Backspacing:  5”

Vehicle Applications:

2008 Dodge 1 Ton Pickup 4WD Gas & Diesel*

2008 Dodge ¾ Ton Pickup 4WD Gas & Diesel*

**For trucks with 3-7/8” Rear Axle Diameter ONLY**

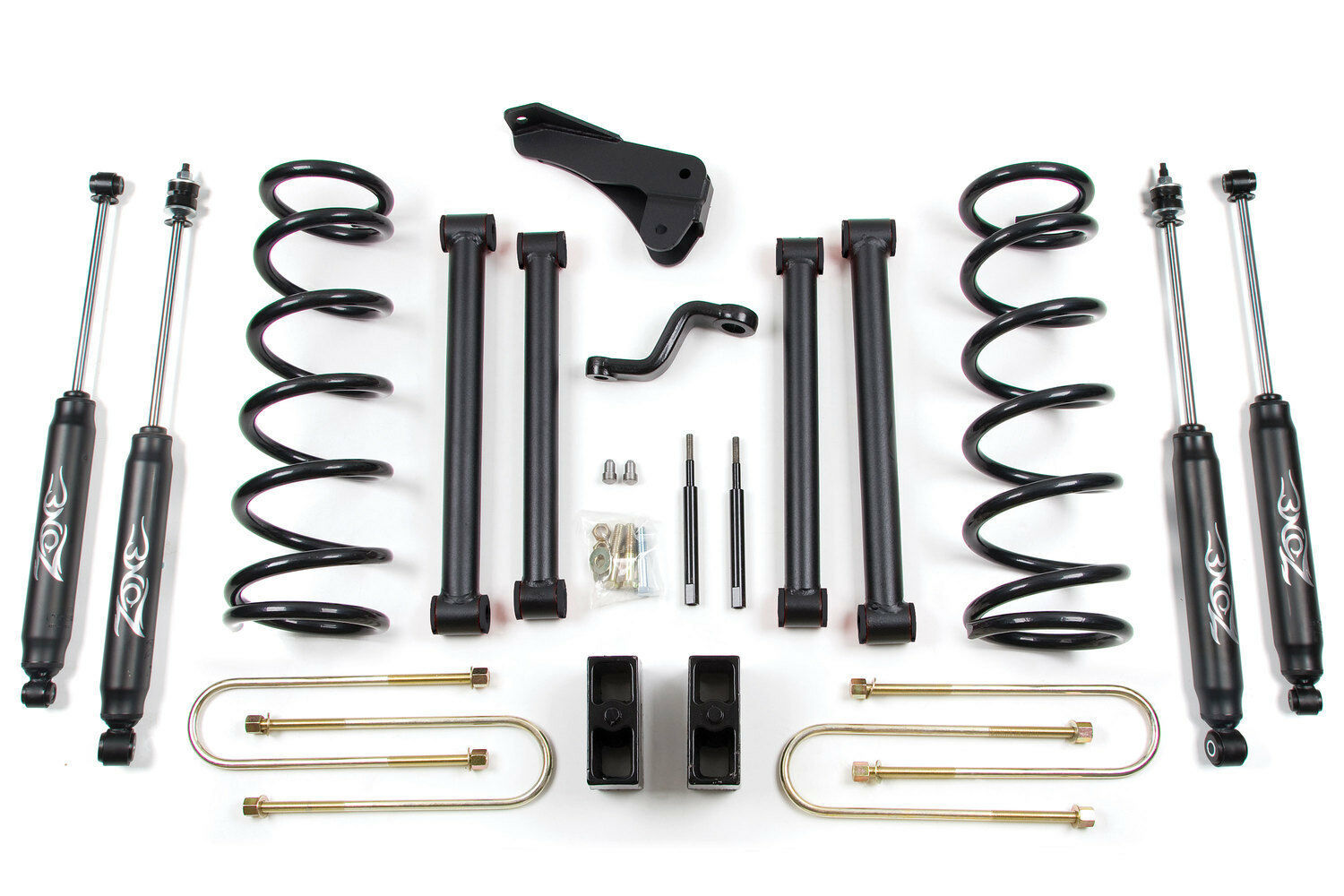

Kit Contains:

• Heavy duty greasable control arms included
• Extended length urethane bump stops
• Track Bar Relocation to properly center your axle
• Pitman Arm included to maintain steering geometry
• Completely Bolt on System

Notes:

• This truck was produced with different rear axles. Be sure to measure the diameter of your rear axle before ordering.
• This system will not fit dually applications due to the rear u-bolt size.
• If a carrier bearing exists in the rear driveshaft, a carrier bearing drop kit may be required
• Gas models may sit approximately 1/2" higher than the advertised lift height.
• Kit includes a 3" rear block kit. Measure your truck before ordering to determine the stance of your truck with the lift installed.
• Powerwagon models came from the factory with a 2" taller ride height so the net lift gain will be 3" over the factory Powerwagon.  Powerwagon models require sway bar link kit D5301.
