Zone Offroad Chevy GMC Silverado Sierra 1500 4.5" Suspension Lift 14-17 (C27)

Description:
FMVSS No.126 (ESC system test) Compliant - With the popularity of Zone's 4.5" lift kit for the 2007-2013 GM trucks, the engineers at Zone Offroad Products have designed the new 2014-17 kits to retain many of the great features customers have comes to expect with fitment for the new electronic power steering on the 2014-17 trucks.

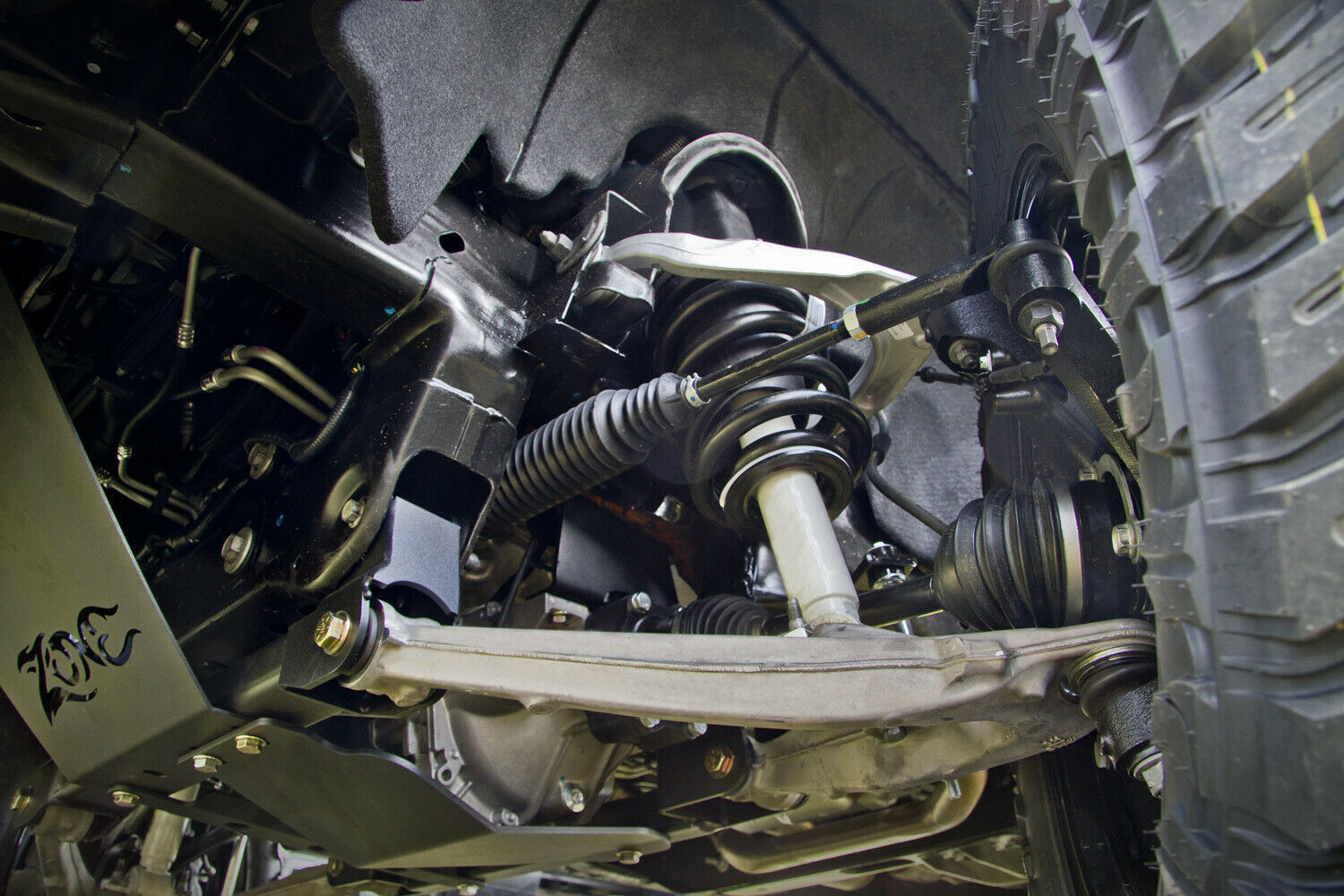

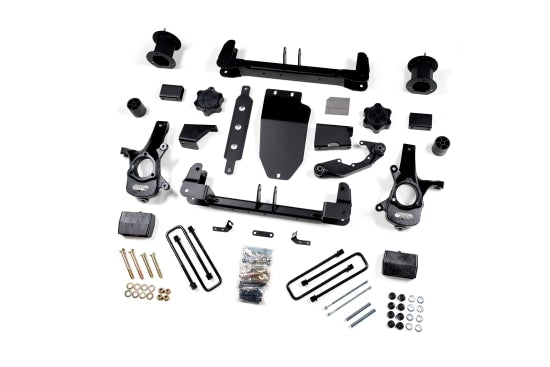

The system includes a pair of fully boxed heavy duty crossmembers and robust ductile iron steering knuckles engineered to work with the redesigned steering. A 3-piece differential relocation system is utilized to correct front pinion angle with the center differential brace tying front and rear crossmembers together for a sturdy differential mount. This coupled with the differential skid plate and crossmember brace create an incredibly strong front subframe designed to correct suspension geometry while increasing ground clearance.

To retain factory ride quality a pair of bolt-on 4.5" strut spacers are used to provide lift. These install easily without the need to disassemble the factory strut. Also included in the kit are a pair of CV spacers, brake line brackets, sway bar relocation, and all the necessary hardware to complete the install.

To lift the rear and level the stance a 4" tapered block is utilized along with longer u-bolts, brake line bracket and nitro shocks.

As with all Zone Offroad Products, this 4.5" lift kit for the new 2014-17 Chevy/GMC 1500 trucks is backed by a limited lifetime warranty.

Brand: Zone Offroad

Recommended Tire/Wheel: 33x12.50

Vehicle Fitment:
2014 - 2017 Chevrolet Silverado 1500 4wd*
2014 - 2017 GMC Sierra 1500 4wd*

*Models w/ CAST STEEL control arms ONLY

Features & Benefits:

• FMVSS No.126 (ESC system test) Compliant
• Over 98% Made in the USA - not a cheap import

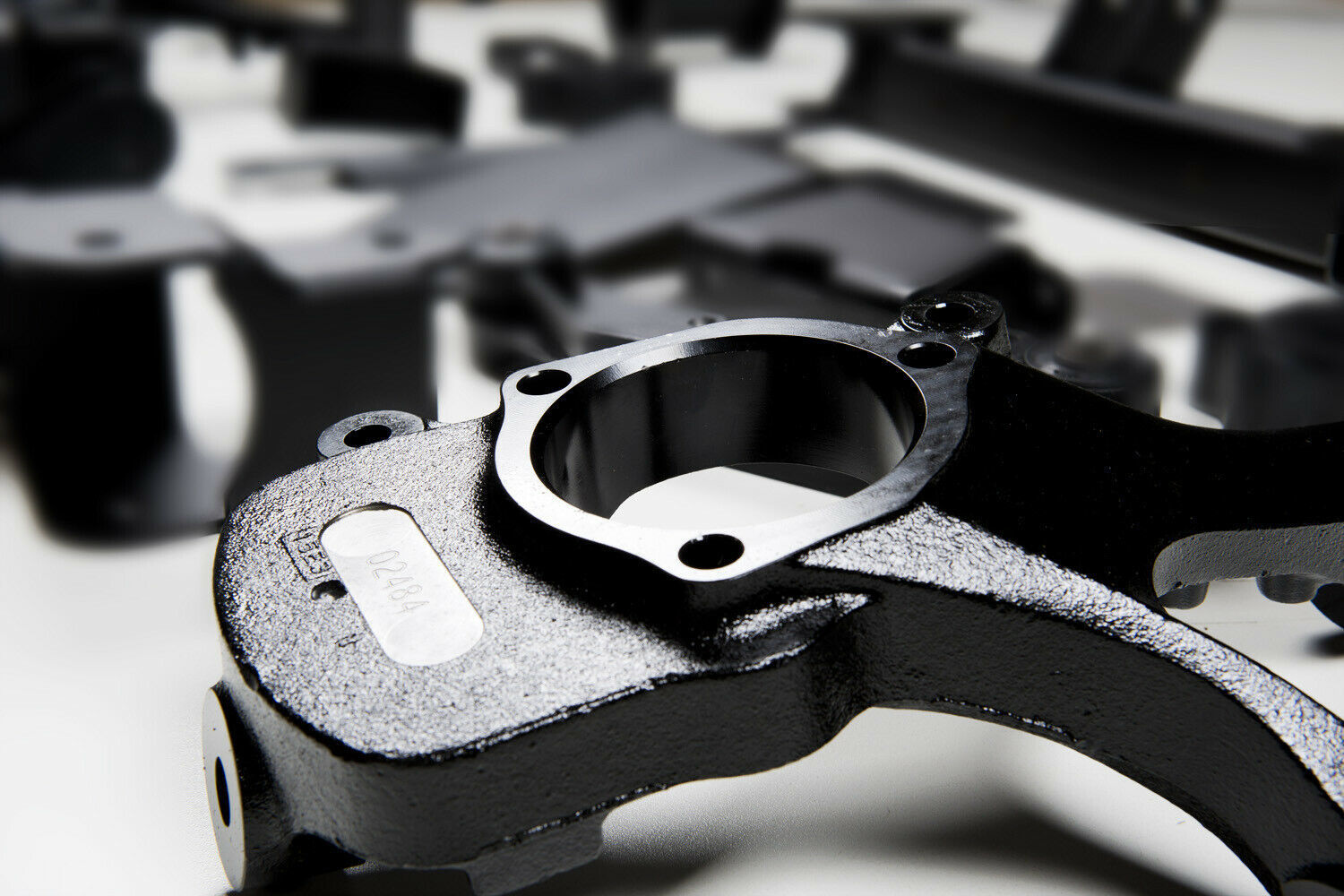

• Ductile Iron, CNC machined steering knuckles maintain OE steering and ball joint geometry and allow fitment of 17" wheels
• Properly corrects suspension geometry and allows for larger wheels/tires

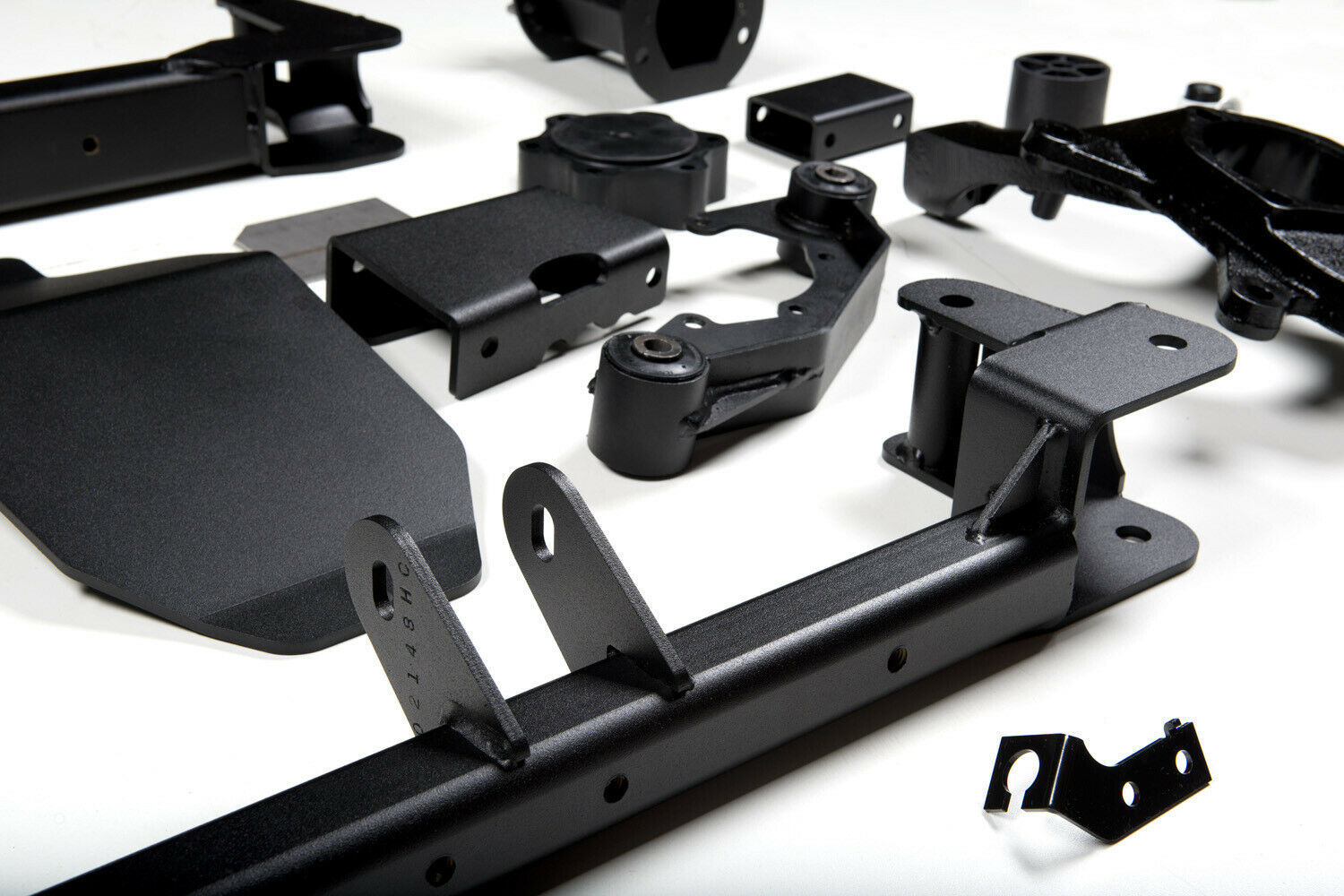

• Heavy duty boxed one piece crossmembers that maintain a clean look
• Differential skid plate and support strut included for added protection when hitting the trails
• Multi-point differential mounting system corrects drive line angles for proper geometry
• Crossmember support struts included for maximum subframe strength
• Weld-in control arm pocket plate included
• Rear solid cast iron blocks
• Works with factory Stabilitrak System
• Includes Nitro shocks

Notes:

• Must know is vehicle is equipped with cast steel, cast aluminum or stamped steel control arms
• All wheel drive models require drive line modification
• Frame bracket modification and minor welding required
• To reduce trimming required for tire fitment, a 20" wheel w/ 5.75" backspacing is recommended
• Will not fit models equipped with magnetic ride control.
• Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference
