Zone OffRoad Chevy GMC 2500HD/3500HD 3" Adventure Series UCA Lift Kit 11-18

Description:
This new system uses the popular Zone Adventure Series boxed steel upper control arm design along with traditional torsion key technology in order to gain 3" of lift. By using the new fabricated arms, equipped with factory style ball joints and rubber bushings, the system is able to maintain a better quality ride and suspension travel over standard "leveling kits". In addition, a front differential drop is included to keep CV angles within the factory operating range.

Rear 2" blocks bring the rear up to give a very slight tail high stance allowing the truck to be used as it was intended without having a saggy ride. Front and rear Nitro shocks come standard to round out this simple yet advanced suspension system.

Brand: Zone Offroad

Recommended Tire/Wheel: 35x12.50

Vehicle Fitment:
2011 - 2018 Chevrolet 2500HD/3500HD 4wd*
2011 - 2018 GMC 2500HD/3500HD 4wd*

*ONLY fits models without top overload rear springs

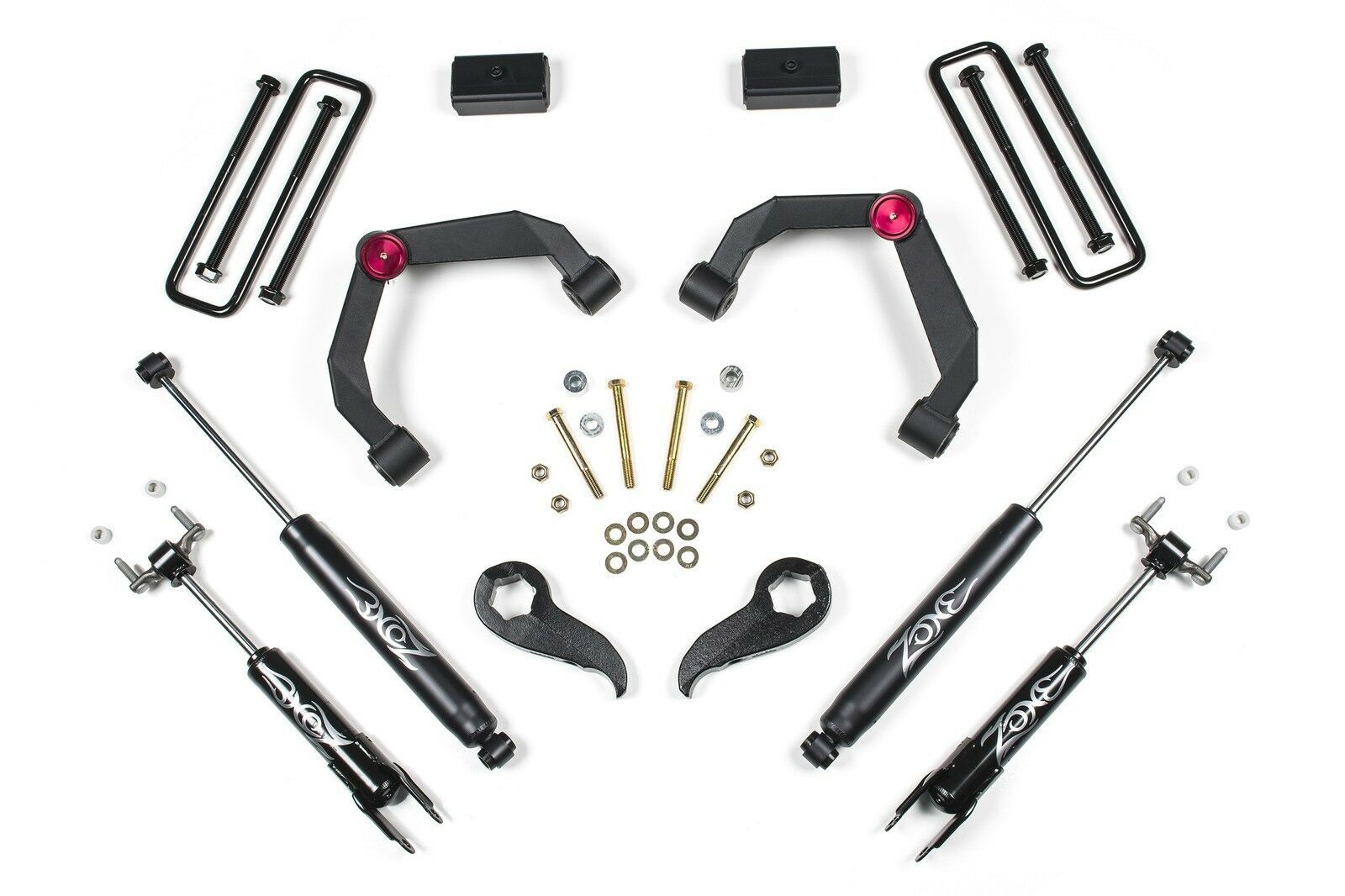

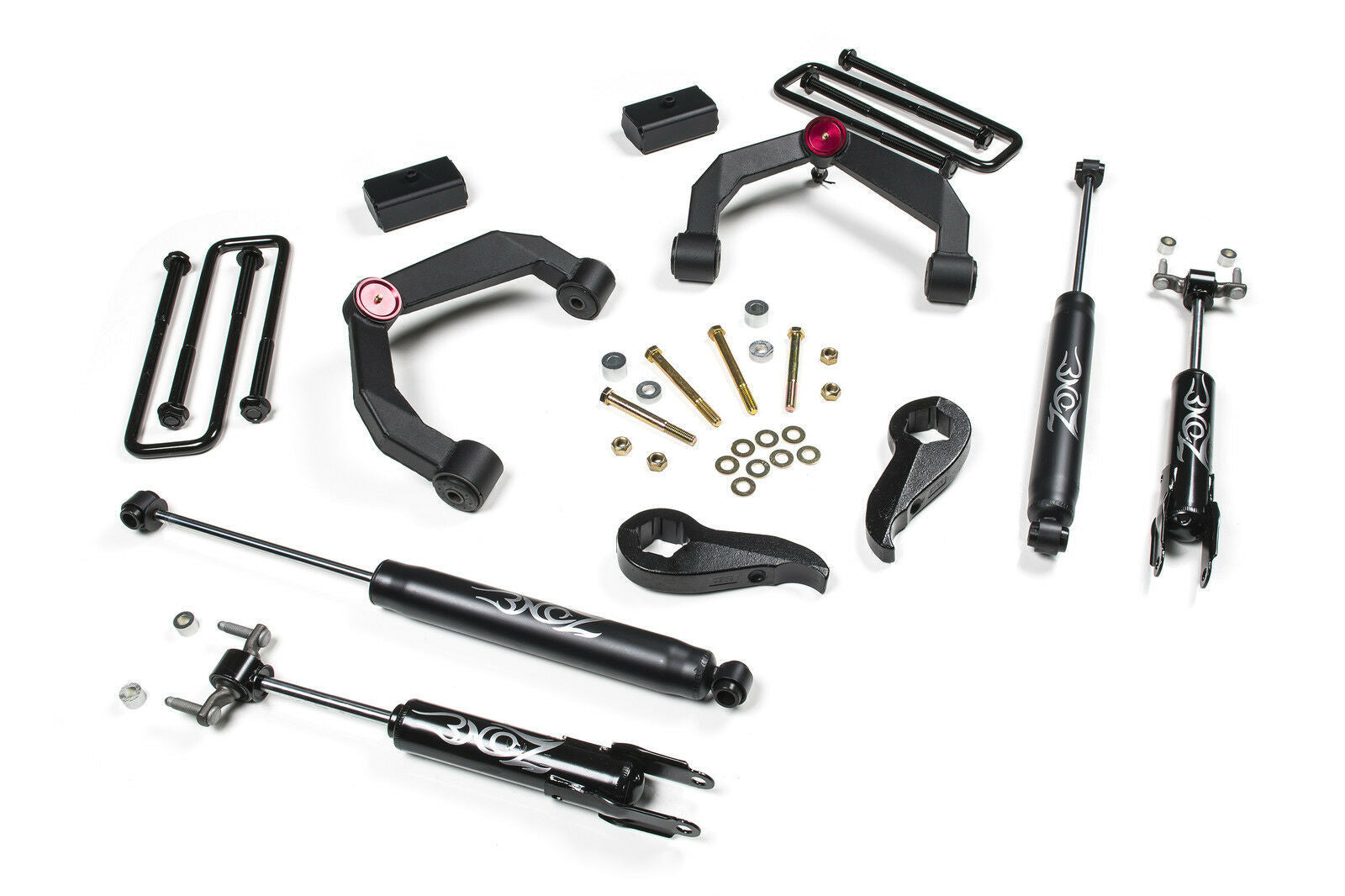

Features & Benefits:

• Heavy Duty Boxed Steel Upper Control Arms
• Factory style ball joints and rubber bushings
• Improved ride quality and suspension travel over standard "leveling kits"
• Front and Rear Nitro Gas shocks included
• Front differential drop included to correct CV shaft angles
• Nets a slightly tail high stance with included 2" rear blocks
• Clear 35x12.50 tires on 18x9 & 20x9 wheels (6" backspacing required)
• Available for both overload and non-overload equipped trucks
• UCAs utilize a replaceable ball joint that can be found at most local auto parts stores if ever needed
• Limited Lifetime Warranty
• Over 90% Made in the USA

Notes:

• Must know if truck is equipped with rear overload springs
• Minor trimming may be required, especially if a wheel backspace of less the specified is used
• Proper torsion bar unloading tool required for installation
• Not designed to work on dually models
