Zone Offroad 8" Suspension System Lift Kit for Dodge Ram 2500/3500 09-13

Step up to our highest lift that will let you clear 38 Inch tires, but will still leave you in control. This coil spring and cast block lift is the easy and affordable way to create the truck you've always wanted.

Fits Diesel 4WD 2009 - 2013 Dodge / Ram 2500 / 3500.
Quick Specs:

• Front Lift Height 8 Inch
• Rear Lift Height 5 Inch
• Front Lift Method Coil Springs
• Rear Lift Method Cast Blocks
• Lift Type Lift Kit
• Wheel Size 17 x 9
• Back Spacing 5 Inch
• Max Tire Size 38x13.5
• Wheel Size 2 18 x 9
• Back Spacing 2 5 Inch
• Max Tire Size 2 38x13.5
• Wheel Size 3 20 x 9
• Back Spacing 3.5 Inch
• Max Tire Size 38x13.5
• Is Adjustable No
• Finish Powdercoat
• Cutting Required No
• Accommodates Factory Wheels See Notes
• Welding Required No

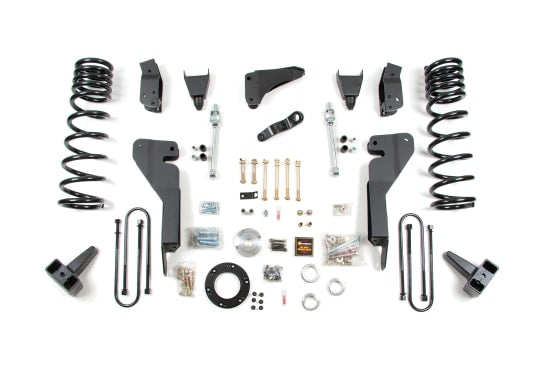

In The Box:

• All Necessary Mounting / Installation Hardware
• Brake Line Brackets
• Coil Springs
• Control Arm Relocation Brackets
• Dropped Pitman Arm
• Rear Lift Block & U-Bolt Kit
• Track Bar Relocation Bracket
• Transfer Case Indexing Ring

Features:

• 100 percent bolt-on design for easy installation.
• High-strength control arm relocation brackets correct suspension geometry and add rigidity.

Kit Components:

• ZON7751 Nitro- 29.43 x 17.24 x 2-3/8 S50/EB2 2 711745595682
• ZON7761 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595774
• ZOND1508 03-13 Ddge 2500 5.0 Inch Block Kit-4 Inch Axle 1 711745598188
• ZOND1801 03-13 Dodge 2500 Control Arm Mount Kit 1 711745598263
• ZOND1802 09-13 Dodge 2500 6/8 Front Box Kit 1 711745598270
• ZOND3801 03-13 Dodge 2500 8in Coils Diesel 1 711745598652
• ZOND5815 09-13 Ram 2500 Tcase Index Kit 1 711745598812
