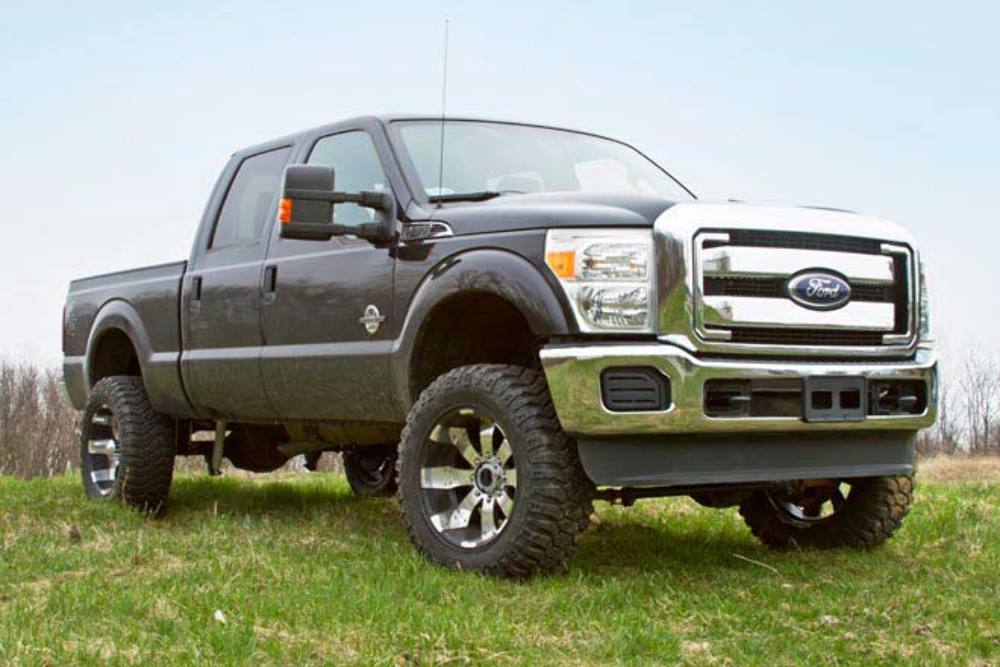

Zone Offroad 08-10 for Ford F250/F350 4" Radius Arm Suspension System

Elevate your truck's status with this 4 Inch Radius Arm Lift Kit that will let you clear those 35 Inch tires. This kit has everything you need to give you the ride you want and the look that's going to turn heads.

Fits Diesel 4WD 2008 - 2010 Ford F-250 / F-350
Quick Specs:

• Front Lift Height 4 Inch
• Rear Lift Height 5 Inch
• Front Lift Method Radius Arm Drop
• Rear Lift Method Cast Blocks
• Lift Type Lift Kit
• Wheel Size 17 x 9
• Back Spacing 4.5 Inch
• Max Tire Size 35 x 12.5
• Wheel Size 2 18 x 9
• Back Spacing 2 4.5 Inch
• Max Tire Size 2 35 x 12.5
• Wheel Size 3 20 x 9
• Back Spacing 3 4.5 Inch
• Max Tire Size 3 35 x 12.5
• Is Adjustable No
• Finish Powdercoat
• Cutting Required No
• Accommodates Factory Wheels See Notes
• Welding Required No

In The Box:

• All Necessary Mounting / Installation Hardware
• Coil Springs
• Rear Lift Block & U-Bolt Kit
• Sway Bar Relocation Brackets
• Track Bar
• Radius Arms

Features:

• Full length replacement coil springs add additional ride height while maintaining ride quality.
• Heavy-duty track bar re-centers front axle, adds strength and limits lateral movement.
• High-strength, 1/4 Inch steel construction corrects caster, improves tire clearance, and maximizes ground clearance.
• High-strength, black e-coated U-bolts.
• Rear lift block and longer U-bolts for easy installation and level stance.

Kit Components:

• ZON7712 Nitro- 24.50 x 14.50 x 2-3/8 S50/EB2 2 711745595538
• ZON7763 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595798
• ZONF1309 08-12 Ford F250/350 4 Inch Rear 1 711745599116
• ZONF1413 2005-2022 Ford F250/350 4 Inch Front Coil Diesel (One) 2 711745599215
• ZONF1422 08-10 Ford Super Duty Box Kit 1 711745599260
• ZONF1601 2005-2022 Ford Super Duty Radius Arm (One) 2 711745599291
