73-76 3/4 ton PU/Blaz/Jim 6/6 Springs w/ Fox Shocks

73-76 3/4 ton PU/Blaz/Jim 6/6 Springs w/ Fox Shocks

SKU:BDS118FS

Regular price $2,027.25 USD
Regular price Sale price $2,027.25 USD
Sale Sold out
Shipping calculated at checkout.

Take your 1973-1976 Chevy and GMC 3/4 ton truck or SUV to the next level with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K20 and K25, this kit includes everything necessary to set your truck up right with clearance for up to 36 inch tires.

Up front the lift kit includes Glide-Ride leaf springs, 4 inch steering arm for steering correction, brake line brackets and precision tuned NX2 nitrogen charged shocks. In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro shocks.

Glide-Ride Leaf Springs
Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Features & Benefits

  • Easy, 100 percent Bolt-on installation
  • Glideride leaf springs to provide full lift height and increased capacity
  • New steering arm maintains proper steering angles for improved handling
  • Cast steel blocks and add-a-leaf provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

  • (Trimming may be required)
  • 36 x 12.5 with 15 x 8 and 3.5 in. Backspace

Rear Lift Option

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
  • Front Lift Method : Leaf Spring
  • Rear Lift Method : Springs
  • Shocks Included : Yes
  • Front Lift Height : 6 inch
  • Rear Lift Height : 4.5 inch

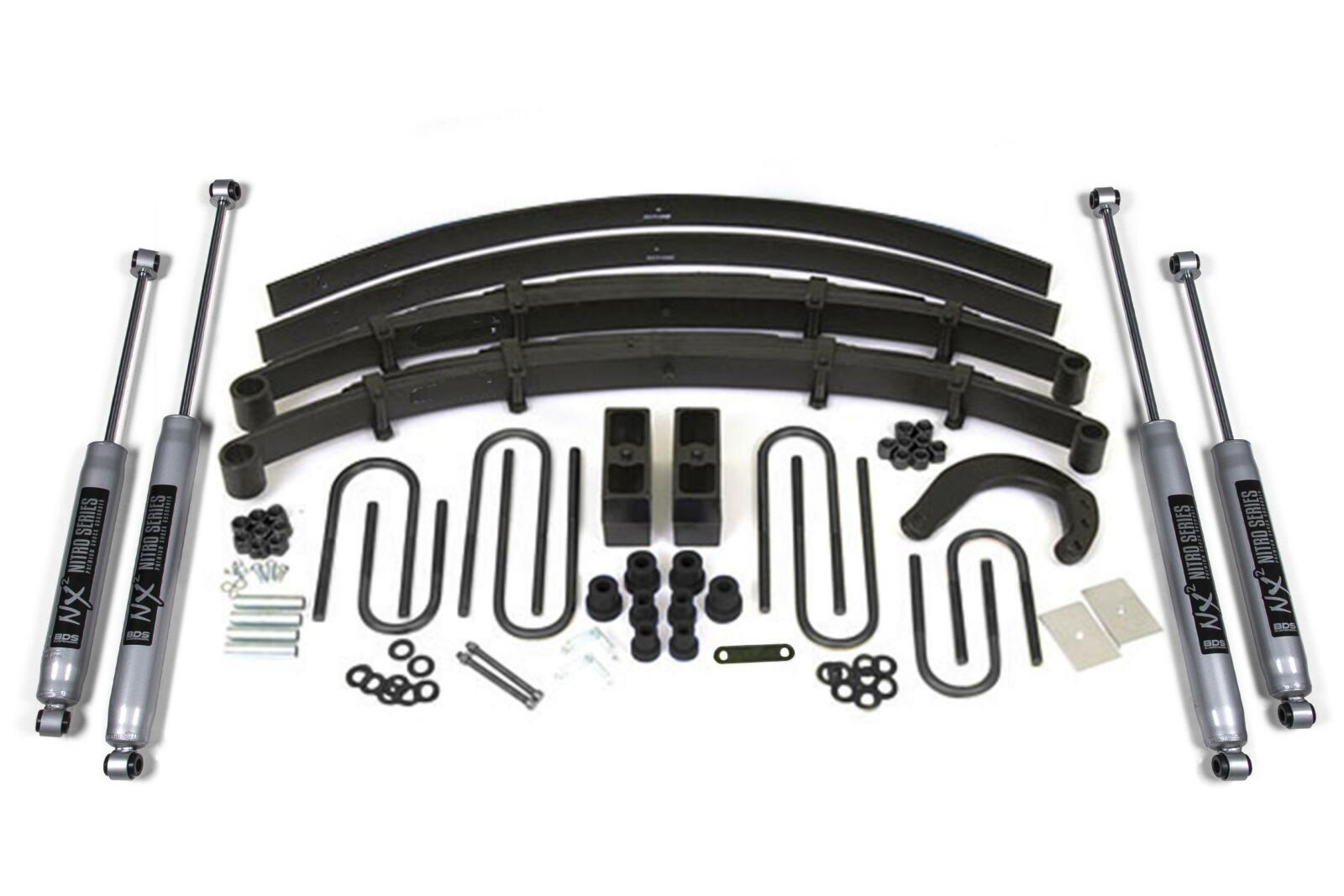

Kit Components:

  • Includes two BDS001551, 73-91 GM 6 inch Front Leaf Spring, UPC Code 658848611201
  • Includes two BDS001608, GM 3/4 ton 6 Inch Rear Spring-52 eye-to-eye, UPC Code 658848611232 Includes one BDS011002, 69-76 GM Front Box Kit (2.75 dia. front), UPC Code 658848611638
  • Includes one BDS081401, 69-91 GM 4 Steering Arm, UPC Code 658848618064
  • Includes one BDS121000, 73-87 GM Transfer Case Lowering Kit, UPC Code 658848618804
  • Includes two FOX98224639, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
  • Includes two FOX98224650, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
  • Includes four UBT4032, 5/8 x 3-5/8 x 10 Round U-bolt, UPC Code 711745613300

Want to customize this kit? Send us a message!
