14-18 GM 1500 4wd 4"w/Spg Alum/Stamp DSC

14-18 GM 1500 4wd 4"w/Spg Alum/Stamp DSC

SKU:BDS716FDSC

Regular price $4,656.55 USD
Regular price Sale price $4,656.55 USD
Sale Sold out
Shipping calculated at checkout.

BDS steps up the performance and capability of the 2014-2018 Chevy Silverado and GMC Sierra 1500 trucks with 4-inch coil-over suspension lift kits. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar links, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and FOX 2.0 Performance Series shocks.

FOX 2.5 Coil-Overs

FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology.

They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

Dual Speed Compression Adjust Adjustment

FOX 2.5 coil-overs are available with optional Dual Speed Compression Adjust (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

  • Front Lift Method: Cross-Member
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 4 inch

Factory Control Arm Type - Aluminum / Stamped Steel

Important: GM is producing several knuckle/control arm configurations in 2014-2017 models trucks. Cast Steel control arm equipped models will require the Cast Steel Control Arm kit. Stamped Steel and Aluminum control arm equipped models will require the Aluminum Control Arm kit.

  1. Strut compressor required
  2. Requires frame bracket modification
  3. Requires differential modification to clear electric power steering
  4. Vehicles came from the factory with several knuckle/control arm configurations requiring specific kit selections. Be sure to reference the important notes and images above to determine the correct control arm selection for your application.
  5. Factory 17 inch and 18 inch wheels cannot be reinstalled due to tie rod end interference
  6. All wheel drive models require drive line modification.
  • FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability
  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included

Tire Size: 33 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5.75

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Coil-Over Option

FOX 2.5 Coil-Overs with Dual Speed Compression Adjust Adjuster

All the FOX Coil-Over Advantages Plus:

  • Dual Speed Compression (Dual Speed Compression Adjust) Adjuster
  • Increases both low and high-speed compression levels up to 25 percent
  • Easy twist knobs for Low-Speed and High-Speed Compression adjustment
  • Provides added control and comfort for on-road use
  • More aggressive damping for use off-road

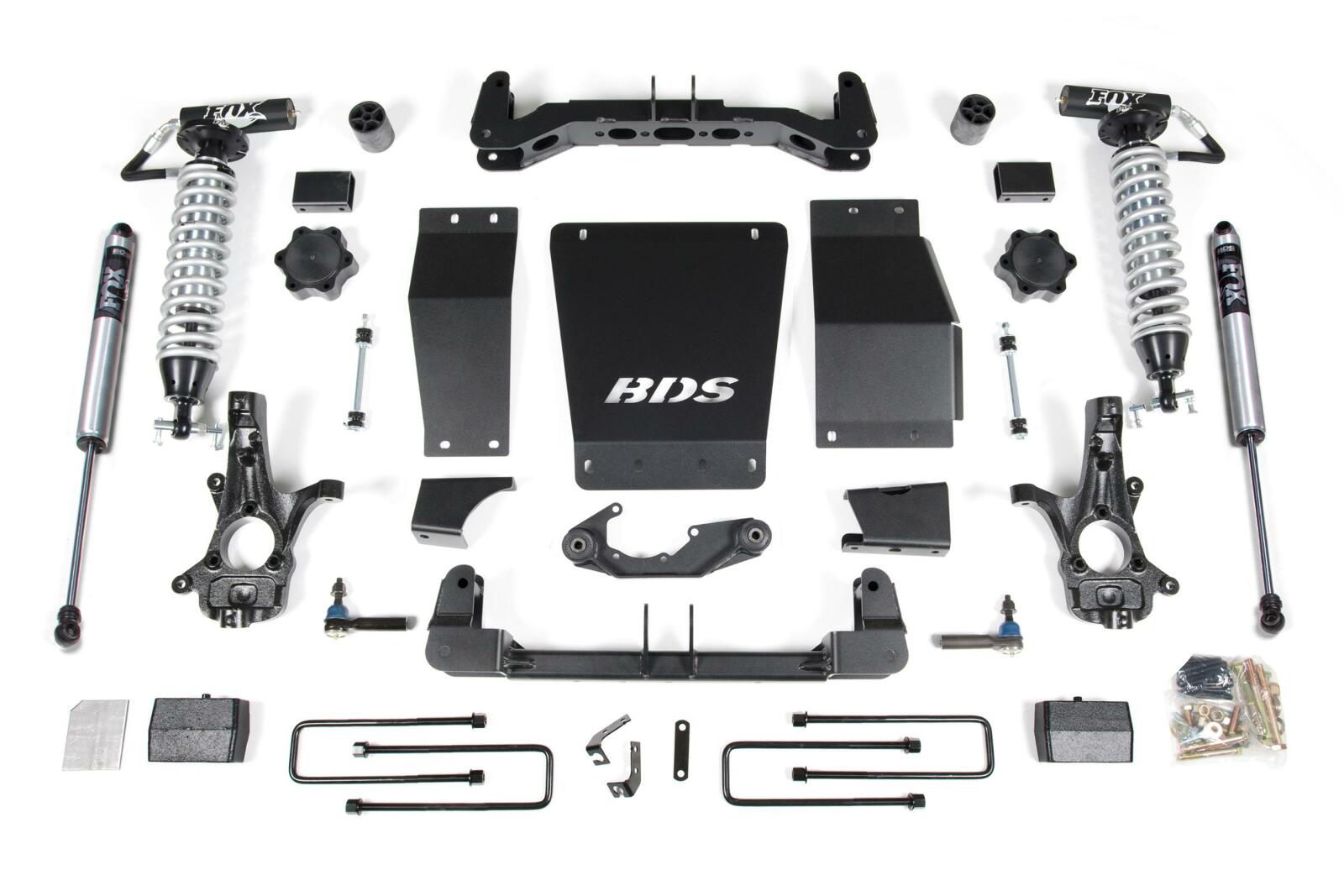

Kit Components:

  • Includes two BDS001559, GM 1/2 ton 5.5in Rear Spring, UPC Code 658848611218
  • Includes one BDS011456, 2014 Chevy 1500 4 Inch Rear Box Kit, UPC Code 658848611850
  • Includes one BDS021462, 2014 Chevy 1500 4 inch Frt Box Kit (1of2), UPC Code 658848614707
  • Includes one BDS021661, 14-18 GM 1500 - 15-19 GM SUV Knuckle Box - Alum/Stamped, UPC Code 658848615025
  • Includes one BDS021663, 14-18 GM 1500 15-19 GM SUV 6 inch Frt Box Kit (2of2), UPC Code 658848615049
  • Includes one FOX88306135, Kit: BDS 07-18 GM 1500 Front Coilover, 2.5 Series, R/R, 4 inch Lift, Dual Speed Compression Adjust, UPC Code 814897013865
  • Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Want to customize this kit? Send us a message!
