11-16 F250/350 Gas 4/3 Std Spring Kit
11-16 F250/350 Gas 4/3 Std Spring Kit
SKU:BDS582H
Update the look of your 2011-2016 Ford F250 and F350 Super Duty gas powered truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, u-bolt flip kit for max ground clearance, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
- Front Lift Method: Coil Spring
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 4 inch
- Removal of factory block required. Rear add a leaf is required for models equipped with factory 3-7/8 inch block for level to tail high stance. Single add-a-leaf kit 113218 recommended for more level stance - Dual add-a-leaf kit 113209 recommended for tail high stance. (Add-a-leafs do not apply to rear leaf spring equipped systems)
- Front exhaust modification may be required to clear front drive shaft (gas only).
- If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required.
- Although extremely rare, front and/or rear driveline vibration may occur.
- If equipped with rear sway bar, #123009 required.
- U-bolts will not work on dually.
- Easy, 100 percent Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty radius arm drop brackets provide correct caster and will maintain your stock driving characteristics.
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Steel lift blocks with built-in bump stop provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Rear Lift Option
Leaf Springs
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5
Shock Option NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish

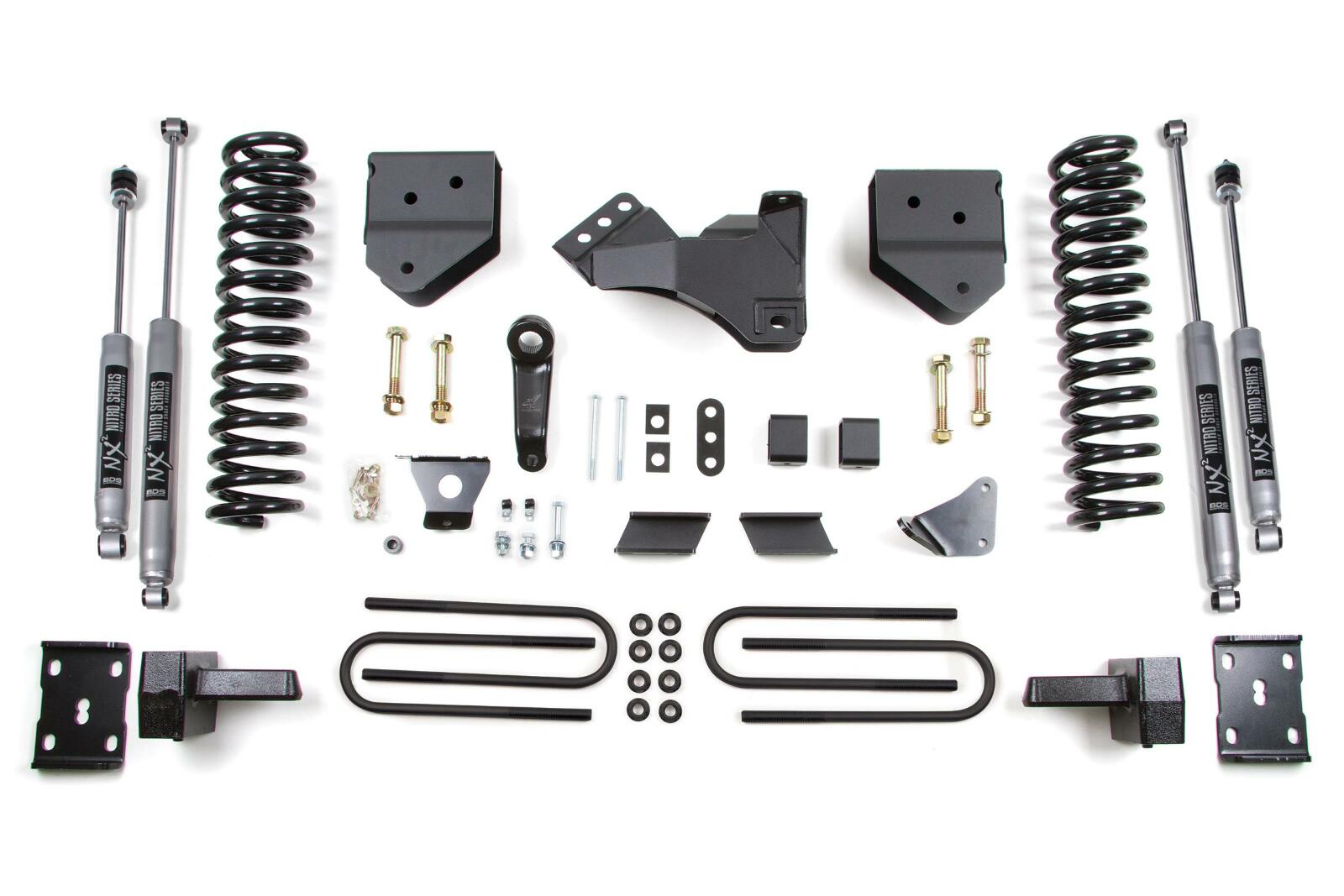

Kit Components:
- Includes two BDS003629, Ford F250/350 6 Inch Rear Spring, UPC Code 658848611393
- Includes one BDS013409, 2011-2016 Ford F250/350 Rear Box Kit, UPC Code 658848613410
- Includes one BDS013413, 11 Ford F250/350 4 Inch Box kit, UPC Code 658848613441
- Includes one BDS033412, 2005-2024 Ford F250/F350 Gas 4 inch Coil Spring Kit, UPC Code 658848616534
- Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
- Includes two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609693
Want to customize this kit? Send us a message!
