07-13 K1500 Silver HC 6/5.5 Block AAL

07-13 K1500 Silver HC 6/5.5 Block AAL

SKU:BDS176FS

Regular price $2,226.65 USD
Regular price Sale price $2,226.65 USD
Sale Sold out
Shipping calculated at checkout.

Take your 2007-2013 Chevy Silverado and GMC Sierra 1500 to new heights with a BDS 6-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles.

These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

  • Front Lift Method: Cross-Member
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 6 inch
  • Rear Lift Height: 5.5 inch
  1. Strut compressor required for installation
  2. This system will not fit 2007 classic models
  3. Installation of rear leaf springs requires removal of the fuel tank
  4. Requires frame bracket modification
  5. 20 inch wheels with 5 inch to 5-3/4 inch backspacing recommended to reduce trimming.
  6. Traction bars will not fit regular cab short box models.
  7. Add 121651 Auxillary Differential support bracket for AWD models. Also may require front driveline modification.
  8. Will not fit two-mode hybrid models with electronic power steering.
  9. Stock 20 inch wheels can be re-installed only with factory Tire size. Factory 17 and 18's cannot be re-installed.
  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles
  • Factory Protection Plus drivetrain warranty included

Rear Lift Option 5 Inch Block Kit with Add-A-Leaf

  • Designed to give 4.5 inch of lift.
  • Help freshen up old worn-out factory leaf springs.
  • Includes new center pins.

Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 17 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5.75

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

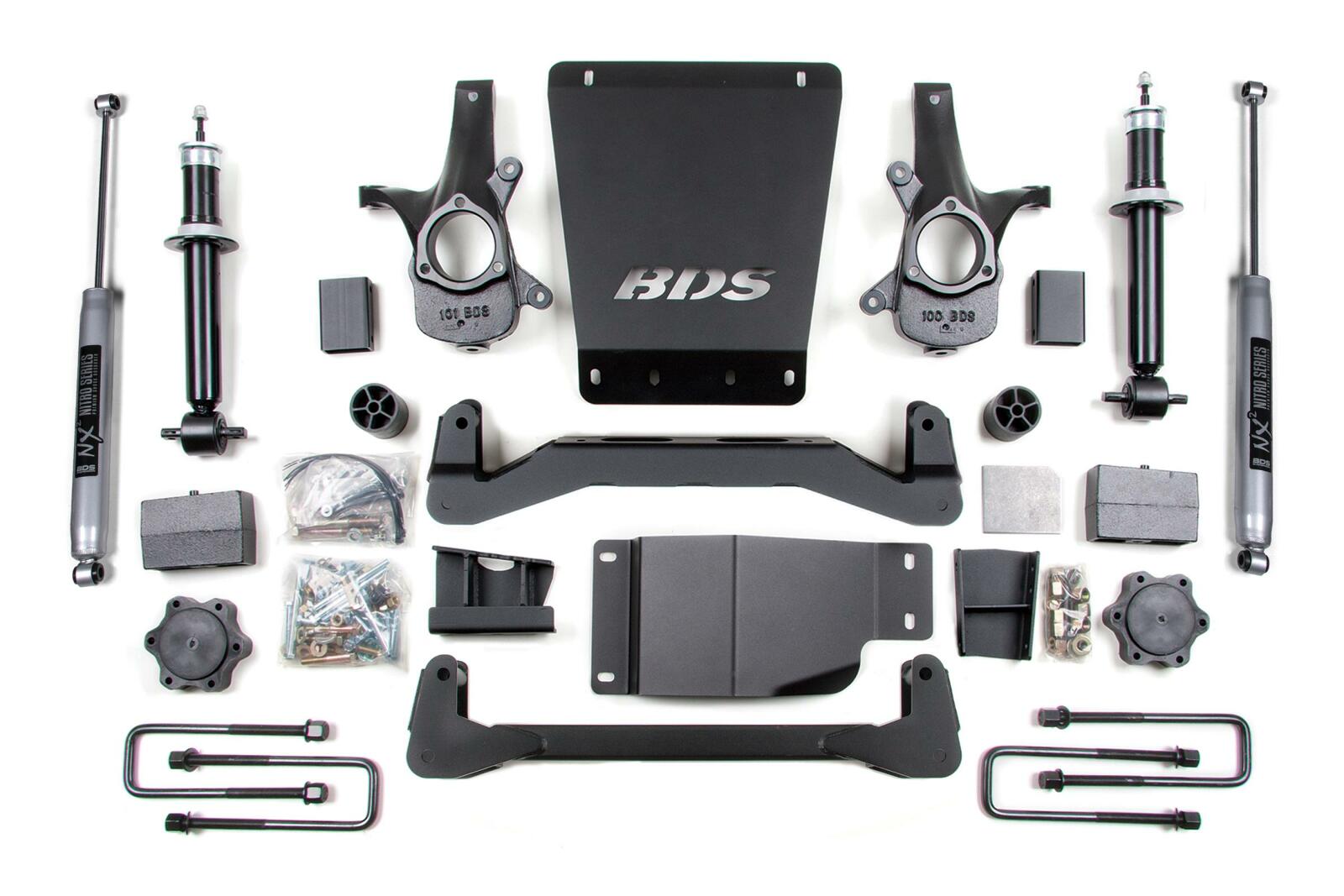

Kit Components:

  • Includes one BDS011559, 99-13 GM 1500 5.5in Rear Block & AAL, UPC Code 658848611980
  • Includes one BDS021640, 07-13 GM 1500/SUV 4-6 Inch Front Box (1of2), UPC Code 658848614929
  • Includes one BDS021644, 2007-2013 GM 1500/SUV 4-6 Inch Front Box (2of2), UPC Code 658848614943
  • Includes one BDS121613, 07-13 GM Front Skid Plate, UPC Code 658848619108
  • Includes one BDS98161, 07-13 GM 1500 6 inch Strut, UPC Code 711745610330
  • Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Want to customize this kit? Send us a message!
