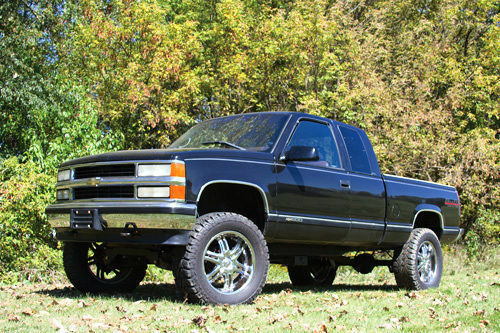

Zone Off Road Chevy GMC 1/2 & 3/4 Ton Pickup 6" Lift Kit 88-98 6-Lug 4wd

Turn heads and drop jaws when you lift your Chevy with this 6 Inch Lift Kit. This kit has everything you need to clear 35 Inch tires and all the pieces and parts for optimal steering and drivetrain geometry.

Fits 4WD 1988-1998 Chevy/GM K1500 truck & SUVs.
Features:

• Heavy-duty differential skid slate improves offroad protection.
• High-strength, 1/4 Inch steel construction crossmembers correct lower control arm geometry.
• Lift system does not change the front track width of the vehicle.
• Multi-point differential relocation brackets secure front differential for improved CV operating angles.
• Relocation bracket allows for reinstallation of the factory spare tire.
• Upper control arm relocation brackets correct front suspension geometry.

Quick Specs:

• Front Lift Height 6 Inch
• Rear Lift Height 5 Inch
• Material 1/4 Inch Steel
• Front Lift Method Torsion Bar Drop
• Rear Lift Method Cast Blocks
• Lift Type Lift Kit
• Wheel Size Stock
• Back Spacing Stock
• Max Tire Size 35 x 12.5
• Wheel Size 2 17 x 9
• Back Spacing 2 6 Inch
• Max Tire Size 2 35 x 12.5
• Wheel Size 3 20 x 9
• Back Spacing 3 6 Inch
• Max Tire Size 3 35 x 12.5
• Is Adjustable No
• Finish Powdercoat
• Cutting Required No
• Accommodates Factory Wheels Yes
• Welding Required No

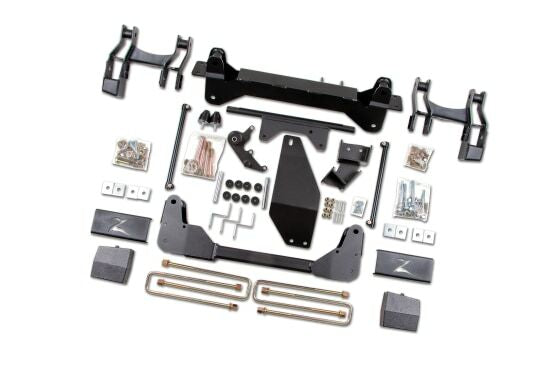

In The Box:

• All Necessary Mounting / Installation Hardware
• Differential Drop Brackets
• Frame Crossmembers
• Rear Lift Block & U-Bolt Kit
• Skid Plate
• Tie Rod End Adjuster
• Torsion Bar Crossmember Drop Brackets

Kit Components:

• ZON7600 Nitro- 24.80 x 14.80 x 2 EB1/EB1 2 711745595286
• ZON7609 Nitro- 30.95 x 18.15 x 2-3/8 BP8/EB1 2 711745595354
• ZONC2640 1988-1998 Chevy/GMC1500 6 Inch Front Box (1of3) 1 711745597235
• ZONC2641 1988-1998 Chevy/GMC1500 6 Inch Front Box (2of3) 1 711745597242
• ZONC2642 1988-1998 Chevy/GMC1500 6 Inch Front Box (3of3) 1 711745597259
• ZONC2649 1988-1998 Chevy/GMC 1500 5.0 Inch Rear Box Kit 1 711745597297
